DLS Reference 4 Ohm 3inch Midrange Speakers - Designed & Engineered in Sweden
Overview
A 3” midrange, with a coated wood fiber cone, delivering exceptional sound. Crafted with care, blending superior design and acoustic excellence. The Reference series is developed for real music lovers. Filled with innovative solutions, delivering a warm and embracing sound.
Features
- Reference classic midrange component
- Natural voicing 3” midrange with coated wood fibre cone
- Rubber dust cap, minimize cone breakup & resonance
- Nomex® / NBR components for low distortion
- Copper shorting cap improves distortion and inductance performance
- Non-magnetic Kapton® / copper wire voice coil
- Optimized high grade neo magnet
- Ventilation solution with increased heat transfer
- Anti-resonating aluminium basket

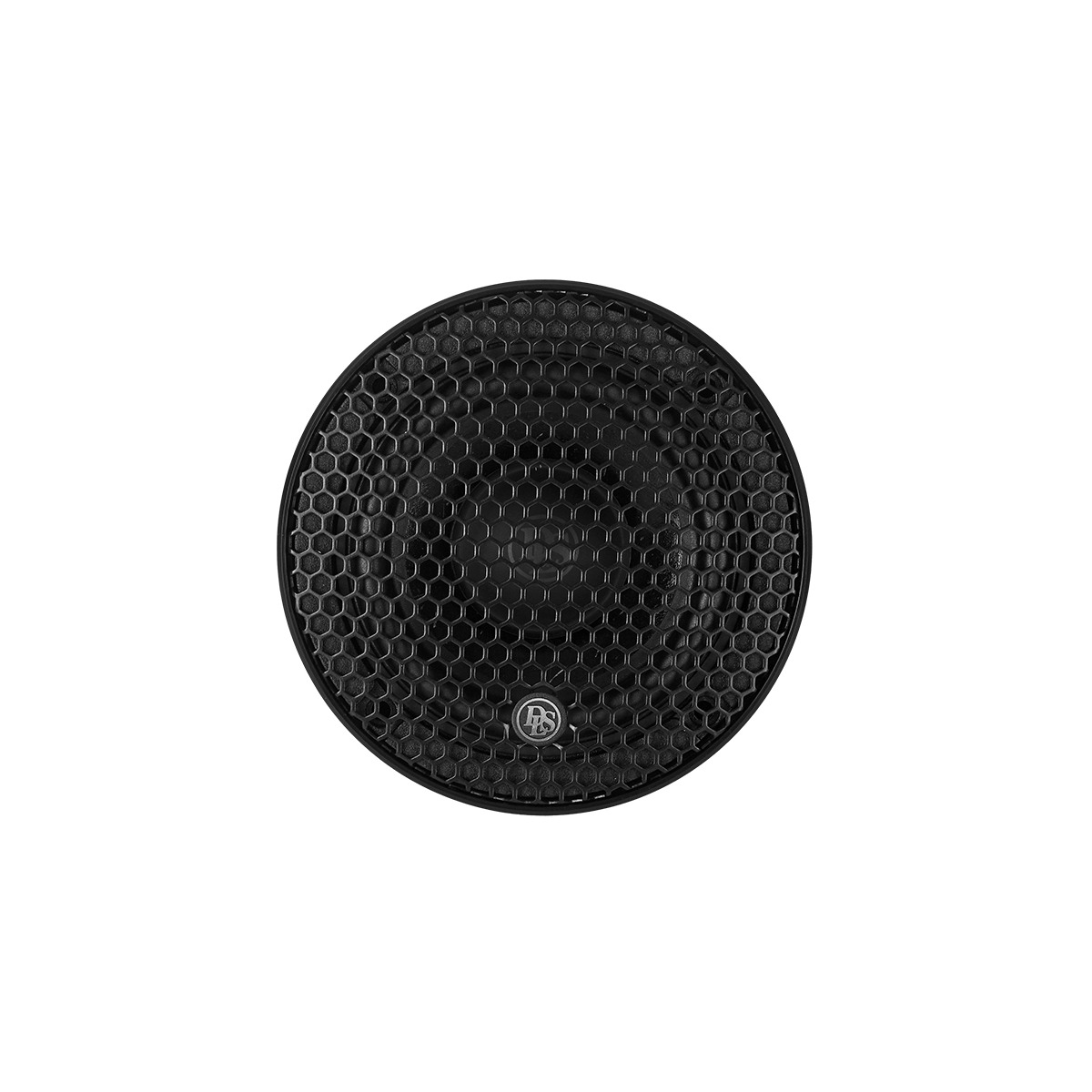

- Hex grills included
Specifications
- Woofer: 3" / 70mm
- Power RMS: 50W
- Power MAX: 100W
- Impedance: 4 Ohm
- Freq.range: 100 – 12 000 Hz
- Sensitivity: 85.4 dB
- Outer diameter: 90mm
- Cone material: Coated wood fibre
- Magnet size: 50mm
- Mounting depth: 35mm
- Mounting hole: 75mm
