DD Audio Digital Signal Prosessor - Designed & Engineered in the USA
Overview

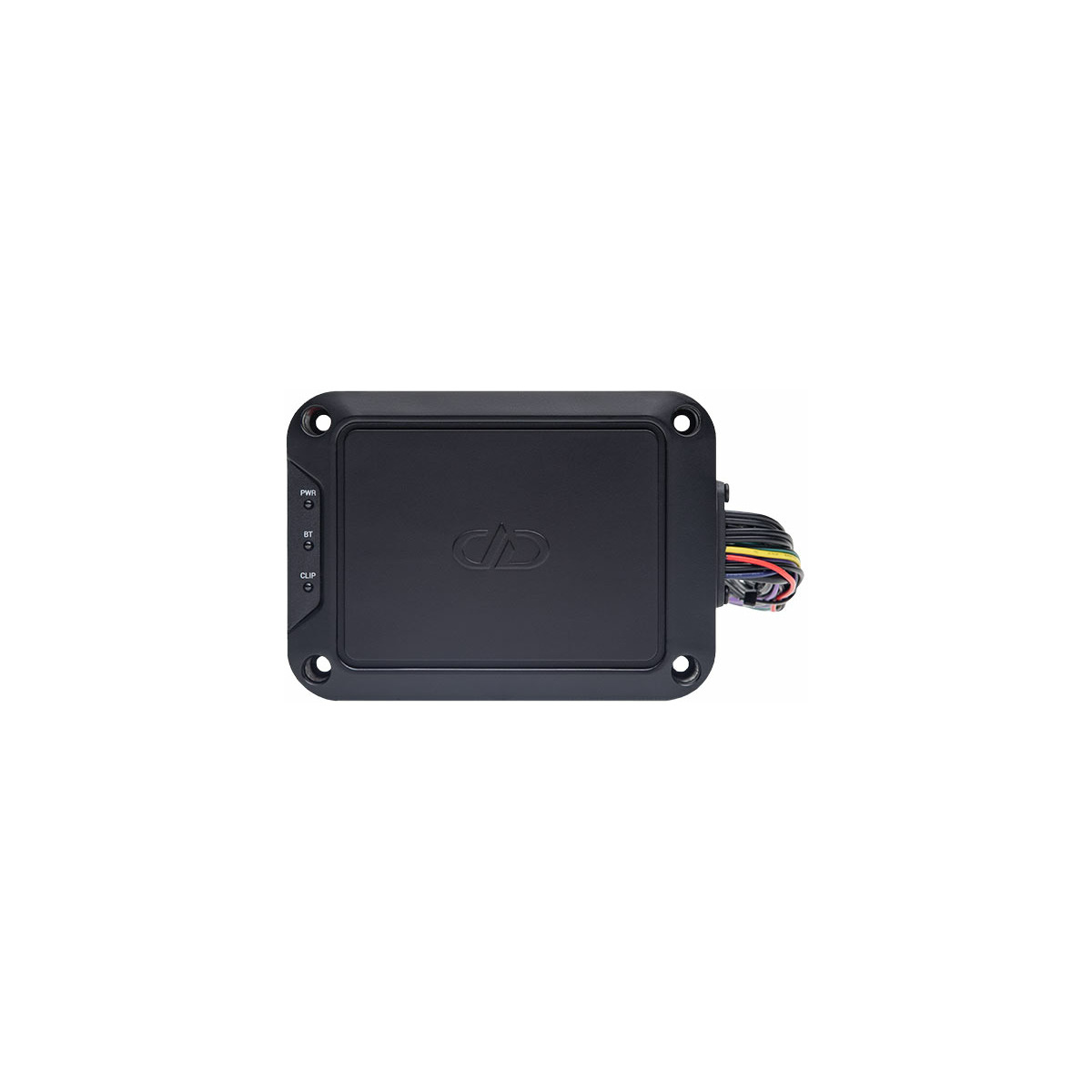

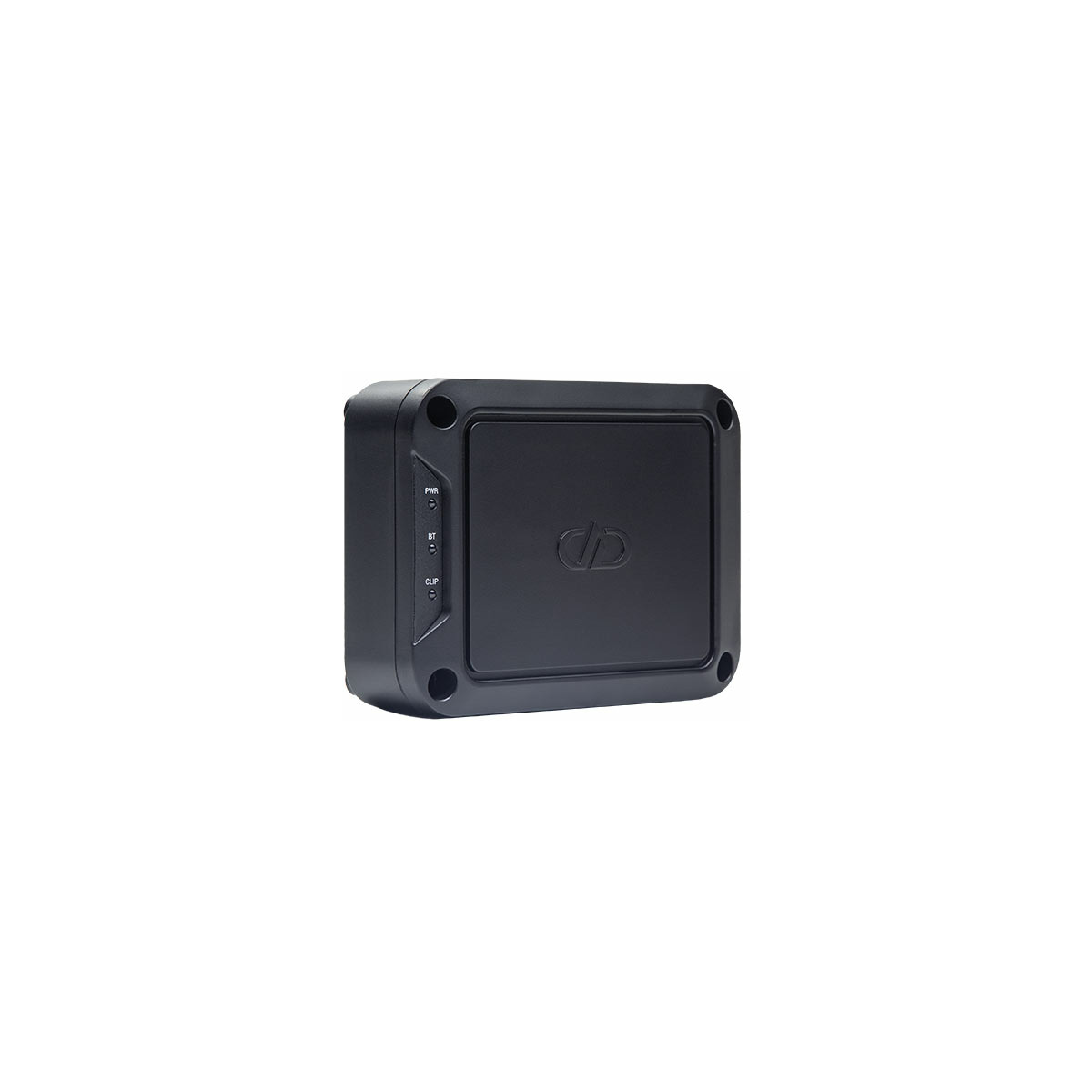

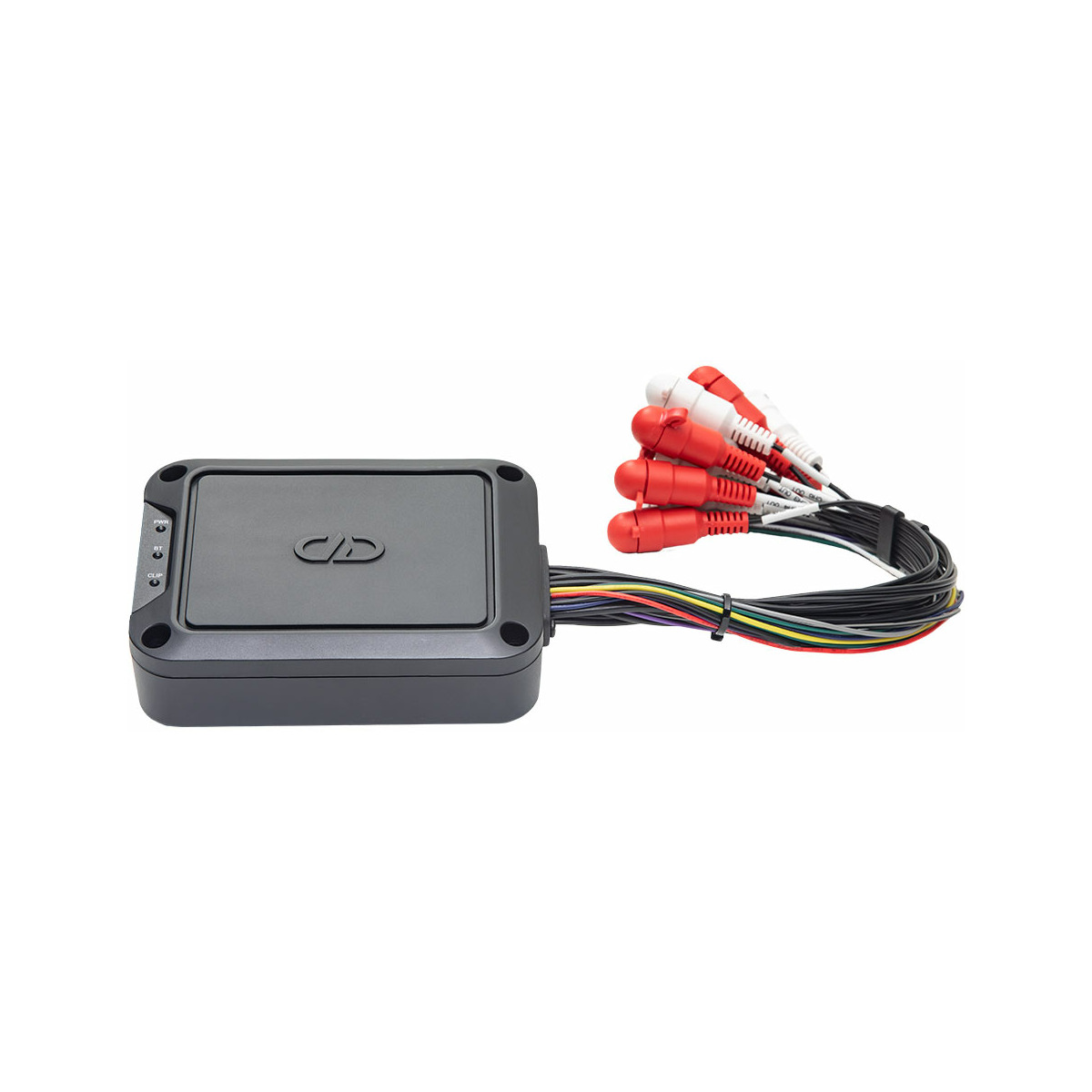

The DSI-X2 isn’t just another DSP, it’s a waterproof, IPX7 rated digital signal interface designed to bring next-level control and clarity to any audio setup. With 8 channels of output, intuitive input mixing, a 15-band parametric EQ, and automatic time alignment calculations, this unit makes dialing in your sound simple and precise without the steep learning curve. Its upgraded processing keeps noise and distortion virtually undetectable, even on the most sensitive compression tweeters.
Built for harsh conditions and real-world installs, the DSI-X2 is ready for any adventure build, giving you full control over your system no matter where the road, trails or waves take you.
Features
- Waterproof Rated IPX7
- Android and IOS App Control
- Bluetooth Compatible
- 4 High-Level Inputs and 4 Low-Level RCA inputs
- 8 Low-Level RCA outputs
- 6 Customizable Presets
- 15 Band Parametric Equalizer

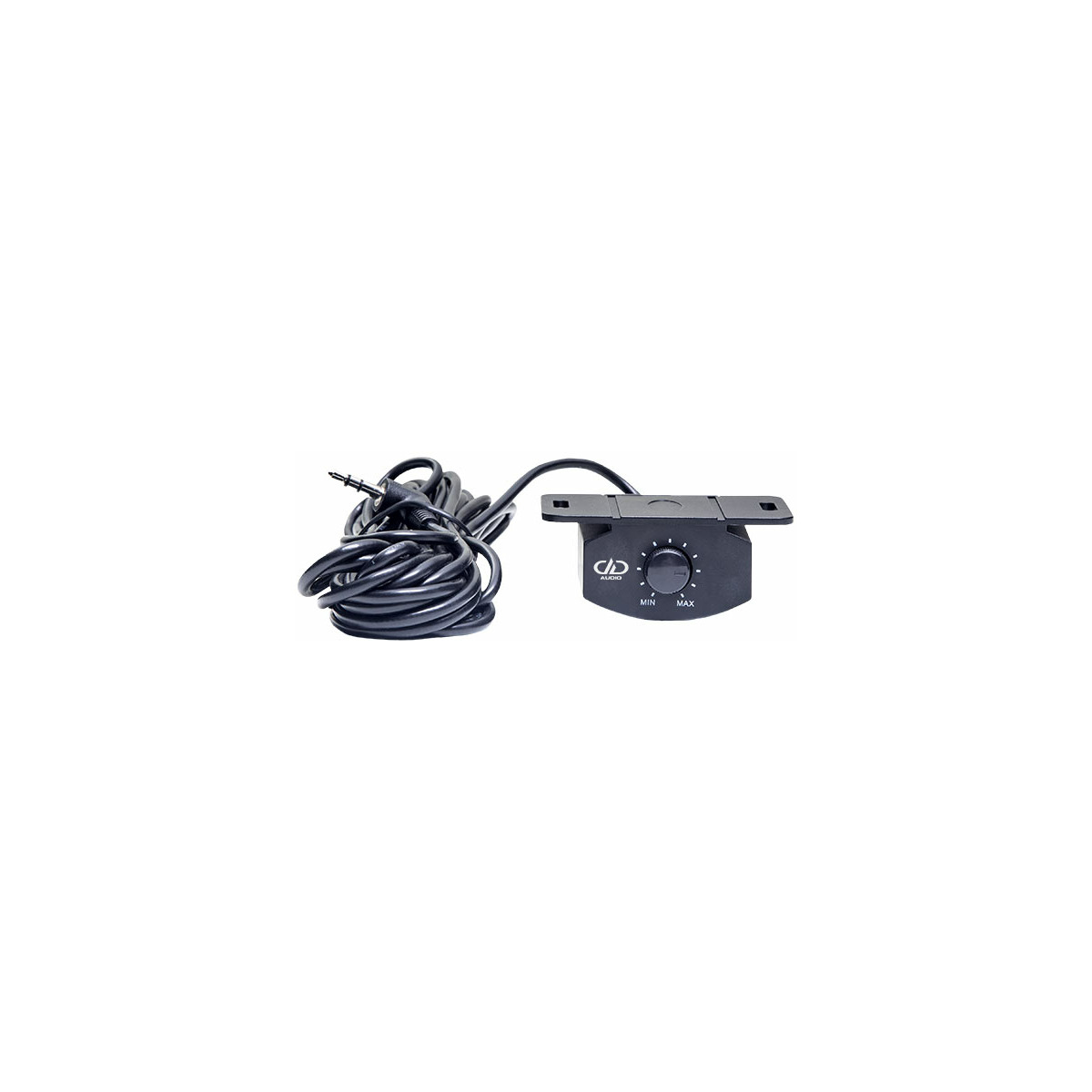

- Master Volume Control Knob Included
- Phase Correction
- Crossover Type, Frequency, and Slope Adjustments
- Automatic Time Alignment Distance Calculations
Specifications
- Operating Voltage: 9 – 17 Vdc
- Input Channel: 4
- Output Channel: 8
- RCA Input Voltage Sensitivity: 4 Vrms
- High-Level Input Voltage Sensitivity: 4 Vrms
- RCA Input S/N: >100 dB
- High-Level Input S/N: >100 dB
- THD: <0.01%
- Remote Controller Included: Yes
- RCA Output Impedance: 220 Ω
- RCA Output Voltage: 8 Vrms
- Parametric / Graphic EQ: 15 Bands
- Bit Depth: 24bit
- Sampling Frequency: 48kHz
- Remote Out Current: 100mA
- RCA Input Impedance: 25 KΩ
- High-Level Input Impedance: 20 KΩ
- Idle Current: <500 mA
- Dimensions (In): 4.9 x 3.5 x 1.5
- Dimensions (MM): 125 x 90 x 37
