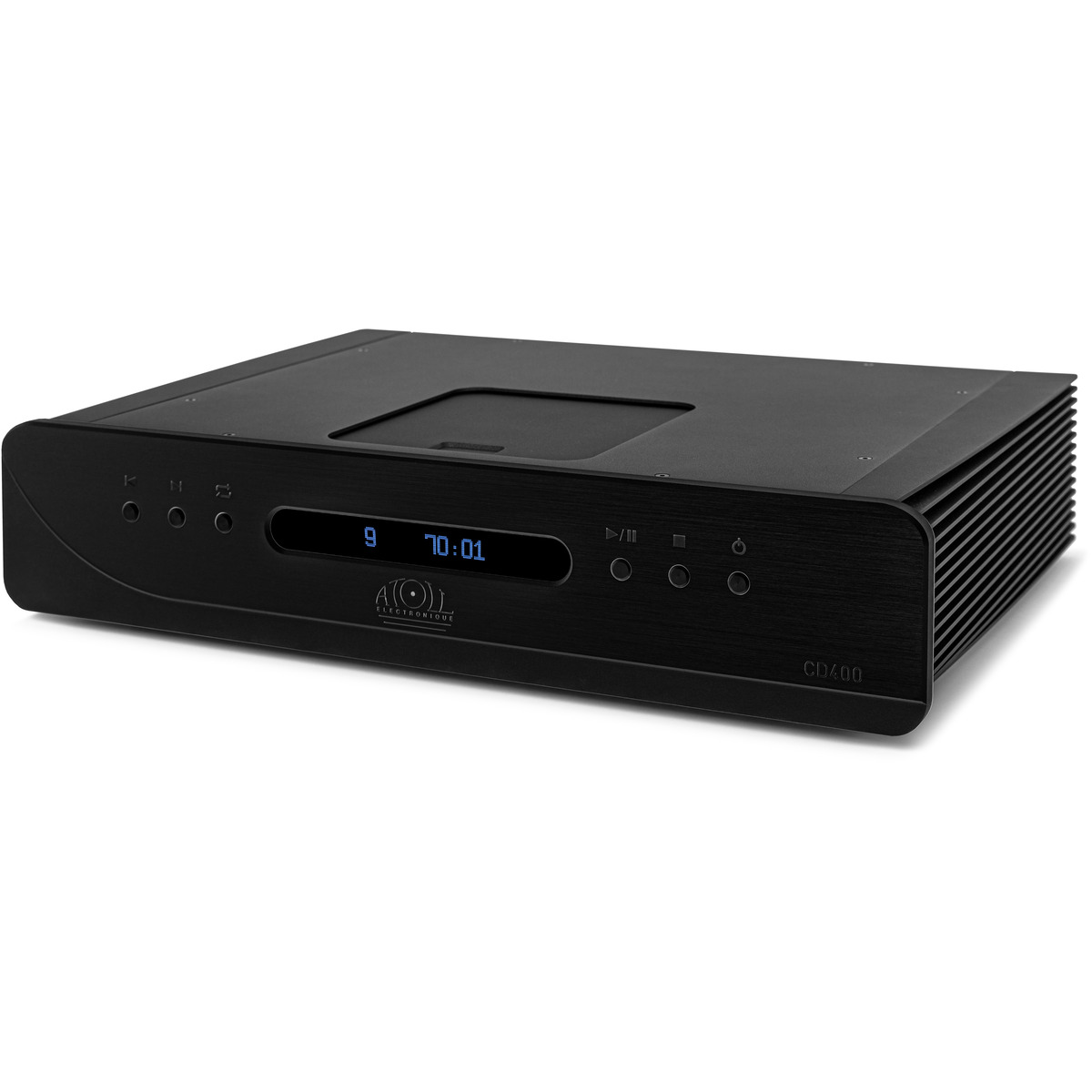

Atoll Electronique CD400 Evolution

Atoll Evolution CD Player - Made in France

Overview

The CD400 EVO player is equipped with the latest Top Loading mechanics developed by ATOLL. It has perfectly matched high-performance power supplies and audio stages offering an immersive stereo image and striking sound realism.

Features

10 mm brushed, micro-blasted and anodized aluminium front panel, high-precision engraving.
2 mm steel chassis.
Solid aluminium sides.

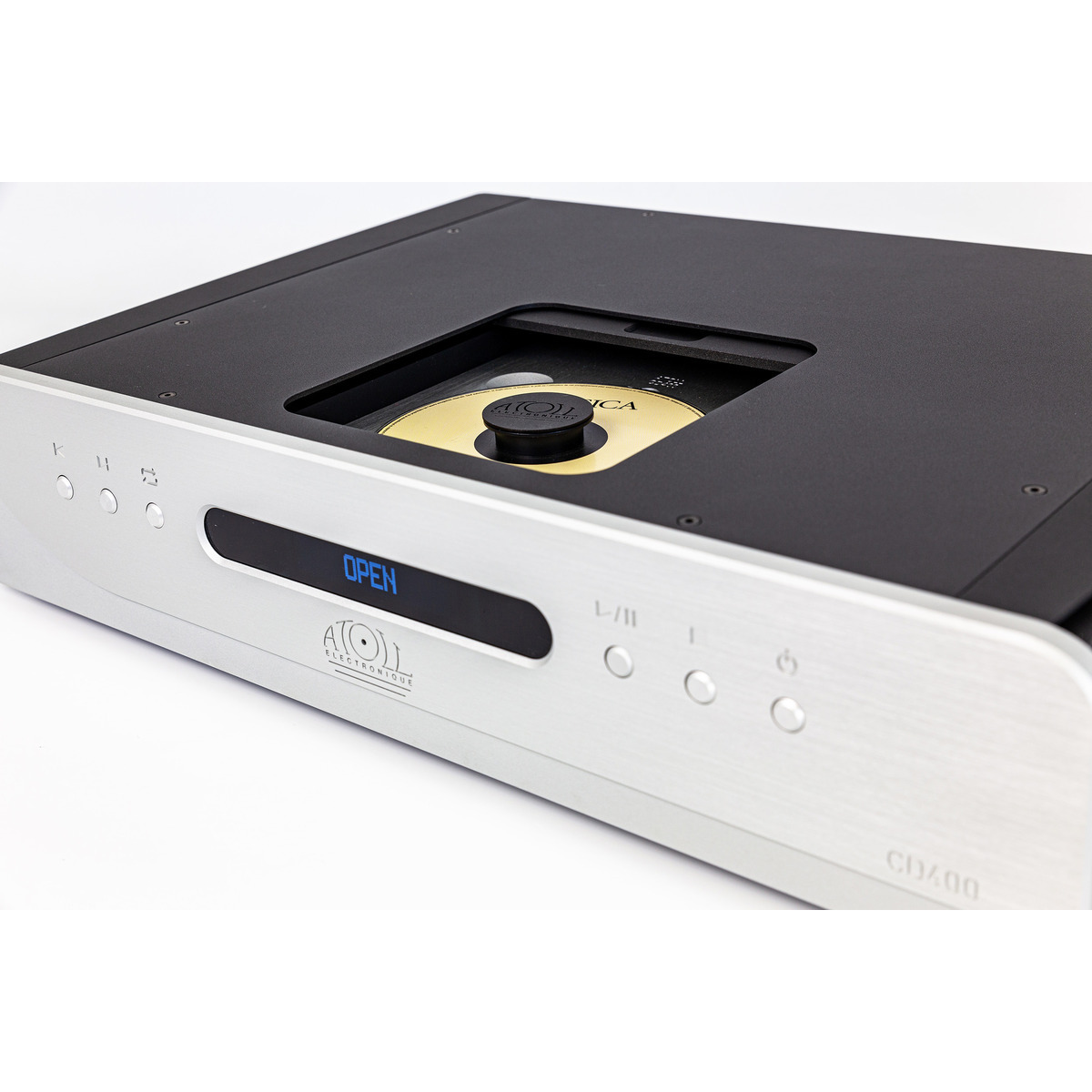

New top-loading mechanics developed by ATOLL, suspension mounting, solid aluminum platter.
Two 10 VA toroidal transformers each for the audio stages.
30 VA linear transformer (general power supply).
1.6 VA linear transformer (control logic).
Ten regulated and independent power supplies.
High-quality MKP link capacitors.
Anti-vibration system.
Complete dual mono structure:
- Two independent symmetrical stages for each channel.
- One PCM1792A converter per channel.
Bipolar transistor audio stages have a perfectly symmetrical structure, are polarized in class A, and are without feedback.
Transistor and LED current sources ensure perfect stability and drastic rejection of distortions.
Converter inputs: coaxial, optical and USB.
High-contrast OLED display (on or off mode after 5 seconds of inactivity).
CD text display.

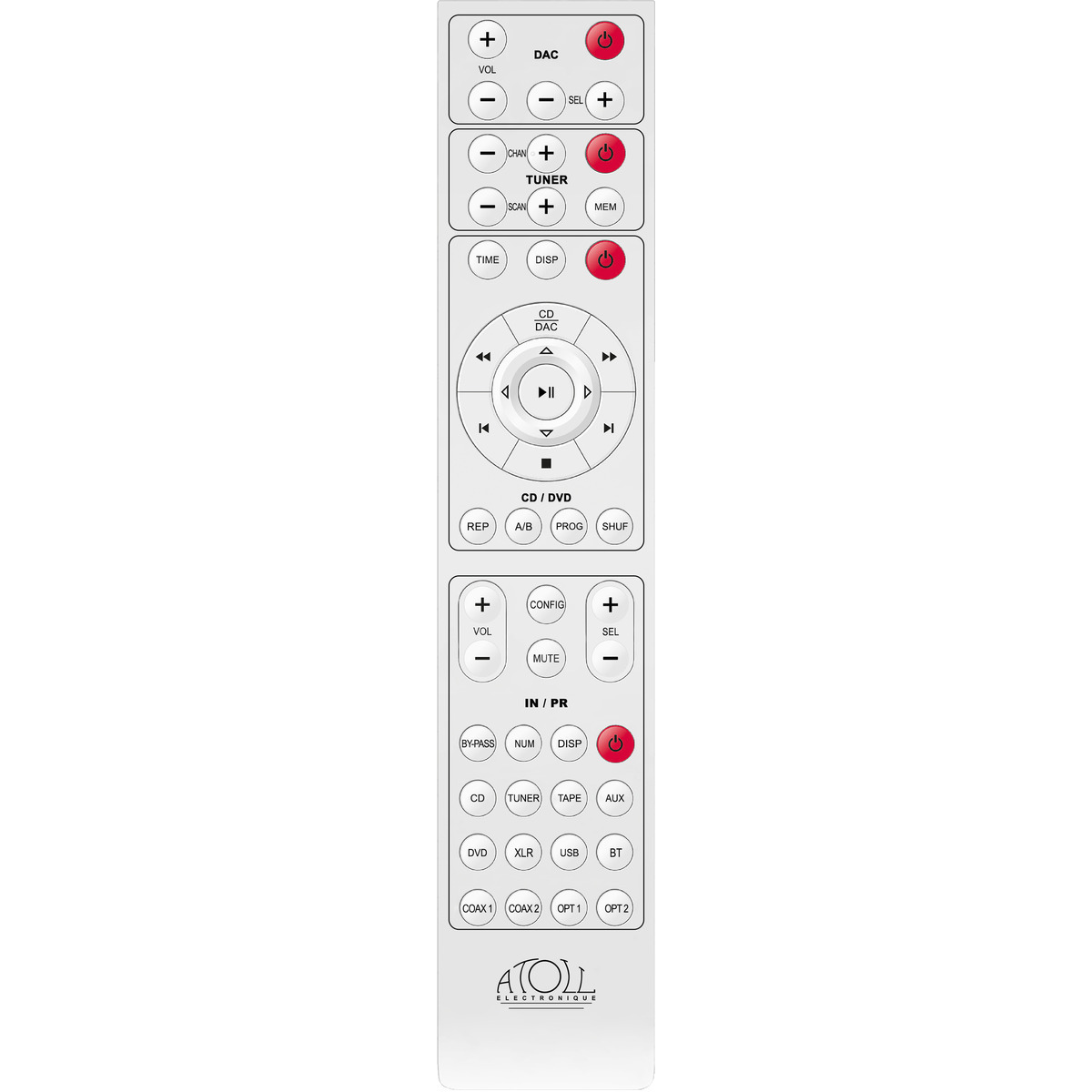

ATOLL global remote control supplied as standard.

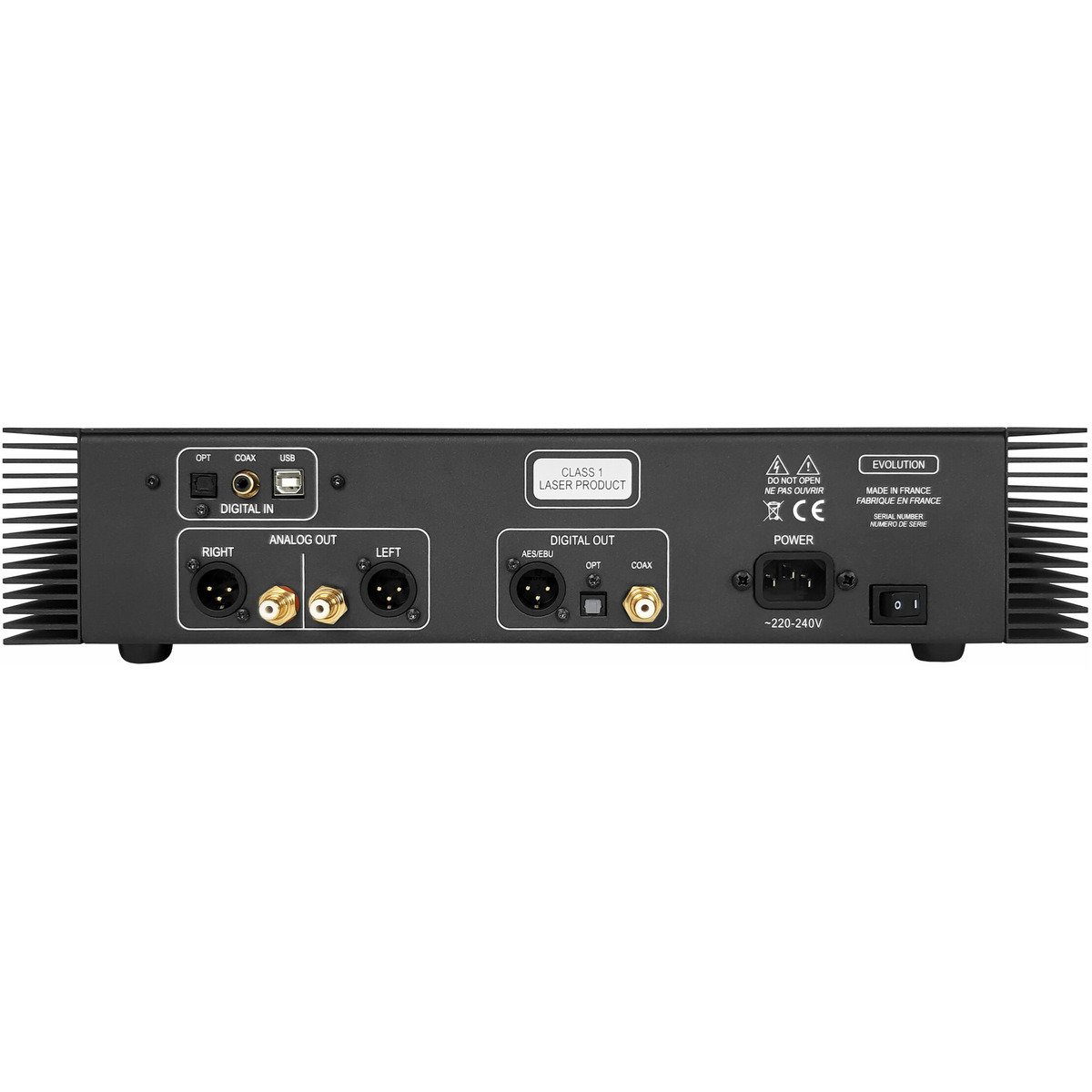

Connectivity

Inputs

1 Optical input.
1 Coaxial input.
1 USB input.

Outputs

1 Stereo XLR output.
1 Stereo RCA output.
1 AES/EBU output.
1 Digital optical output.
1 Digital coaxial output.

Digital Inputs

1 Coaxial input (S/PDIF – 24 bits/192 kHz).
1 Optical input (S/PDIF – 24 bits/192 kHz).
1 Asynchronous USB-B input: PCM stream from 16 to 32 bits up to 192 kHz asynchronously (USB interface: XMOS with a program specifically developed for ATOLL).

Specifications
