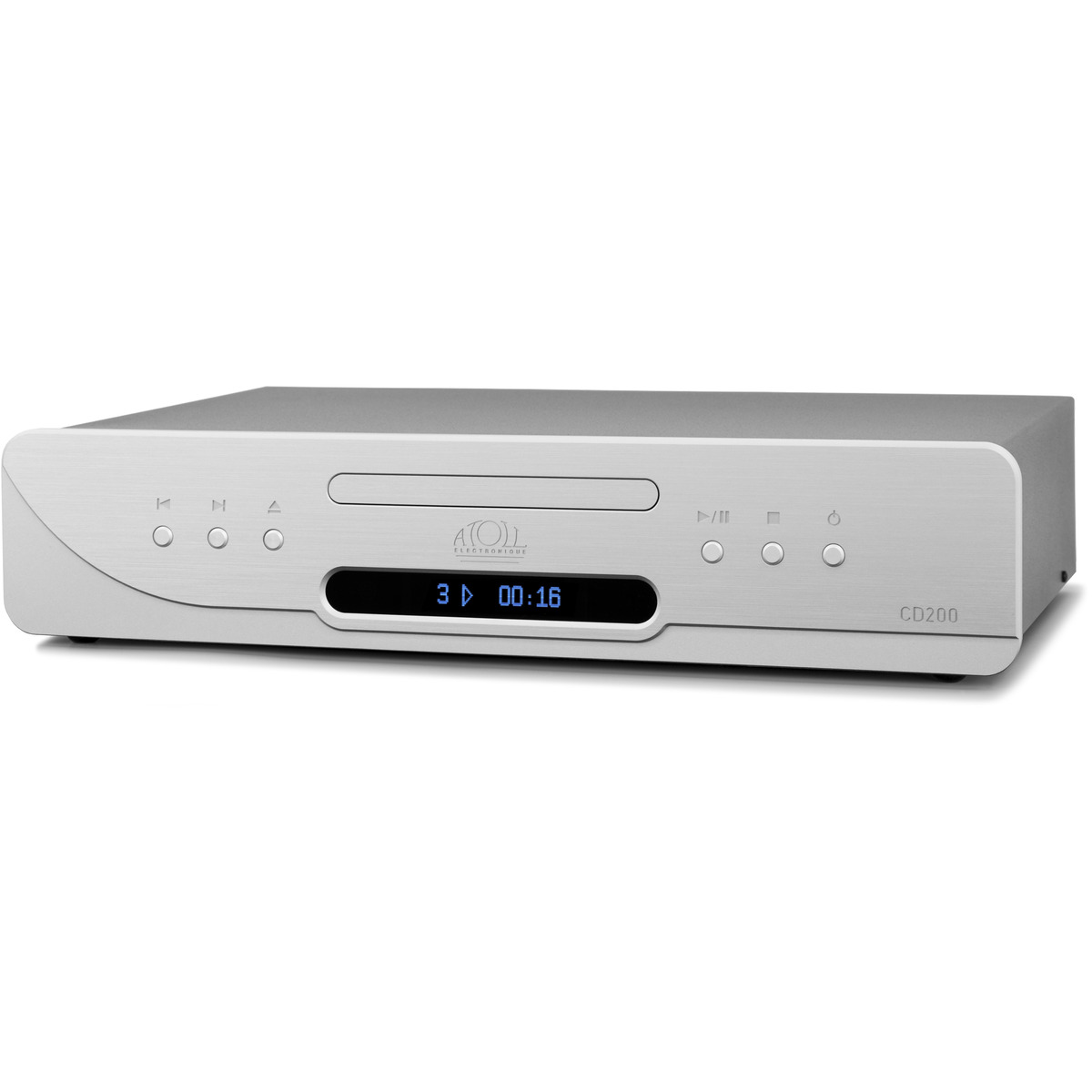

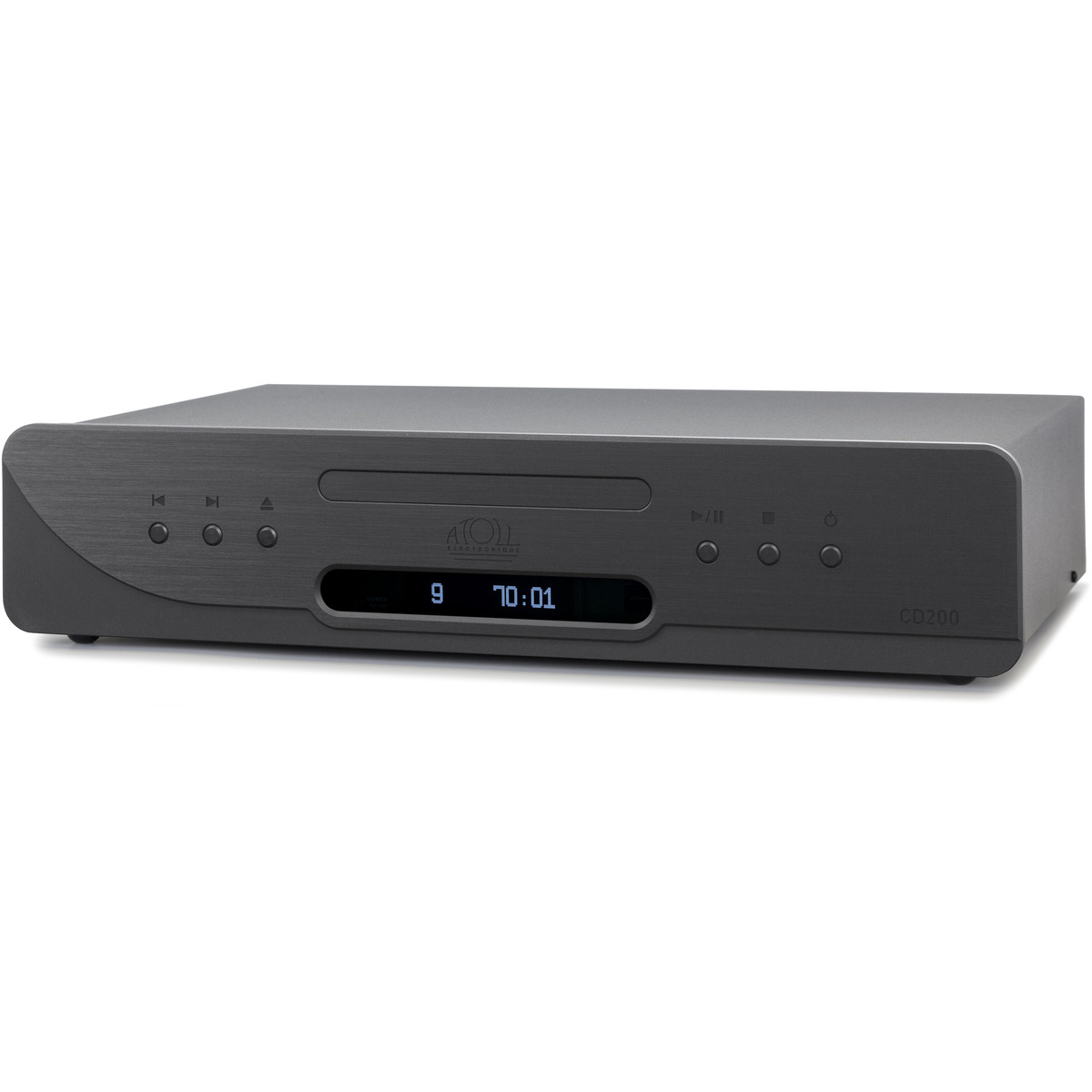

Atoll Evolution CD200 CD Player - Made in France
Overview
The Evolution Series CD players have benefited from many innovations in power supplies or audio and conversion stages. In addition, these devices can now accommodate a 24 bits/192 kHz DAC board relying on the player’s internal converter. The USB input is asynchronous.
Features
- Pure audio mechanism from TEAC designed with specific anti-vibration material
- 8 regulated supplies with one specific for the converter
- BURR-BROWN PCM1792 converter – 24bits/192 kHz, 8x oversampling
- 129 dB dynamic, 129 dB signal/noise
- Differential current outputs
- Current/voltage converters with bipolar transistors.
- Output differential stages with discrete components polarized on A class.
- CD text
- Linear supplies with a low noise toroïdal transformer dedicated to audio stages
- Linear supplies with a specific high quality 30VA transformer dedicated to digital stages
- Low consumption OLED display
- 1 Coaxial and 1 Optical output
- Accepted disc : CD, CD-R, CD-RW. Formats : MP3-WMA-AAC
- The CD200 Signature can be equipped with an optional board including 3 digital inputs:
- 1 digital input Coaxial (24 bits/192kHz)
- 1 digital input Optical (24 bits/192kHz)
- 1 USB input:PCM from 16 bits to 24bits up to 192 kHz (asynchronous).
- USB : XMOS with specific program designed for ATOLL.
Connections
- Stereo Line out (L&R)
- Digital optical
- Digital coaxial
Specifications
- Power supply: 30+10+1,6 VA
- Total of capacitors: 21 450 μF
- Output level: 2,65 Vrms
- Consumption:
- - switch off 0 W
- - standby < 0,5 W
- - operating 10 to 19 W
- Digital output: Coaxial & Optical
- Digital input: 24 bits / 192 kHz
- USB input: 24 bits / 192 kHz
- Converter (D/A): PCM1792A
- Signal/Noise ratio: 129 dB
- Dynamic: 129 dB
- Distortion at 1 kHz: 0,0004 %
- Bandwidth: 5 Hz - 20 kHz
- Rise time: 2,0 μs
- Dimensions (mm): 440×280×95
- Weight: 7Kg
