MS120 - Made in France
Overview

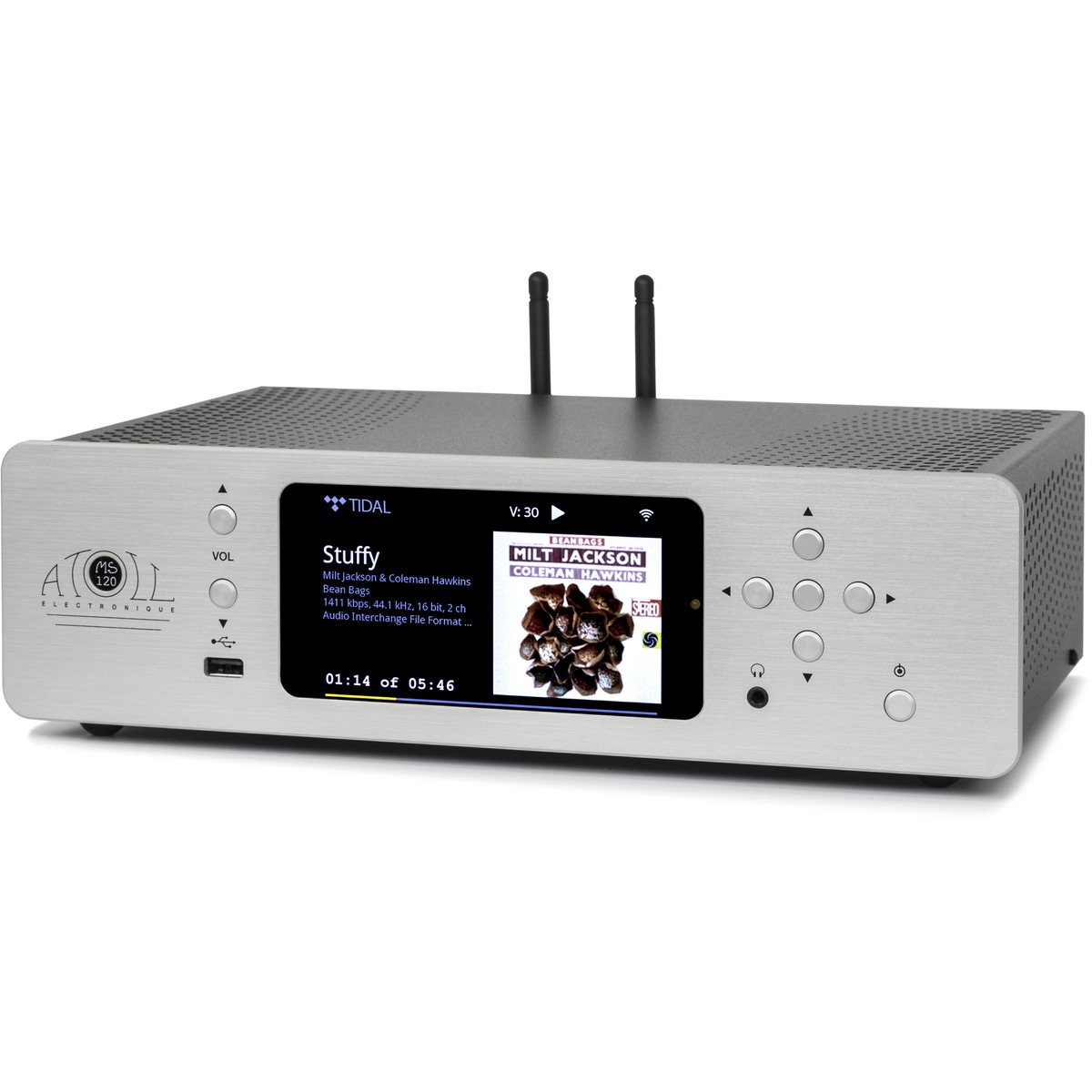

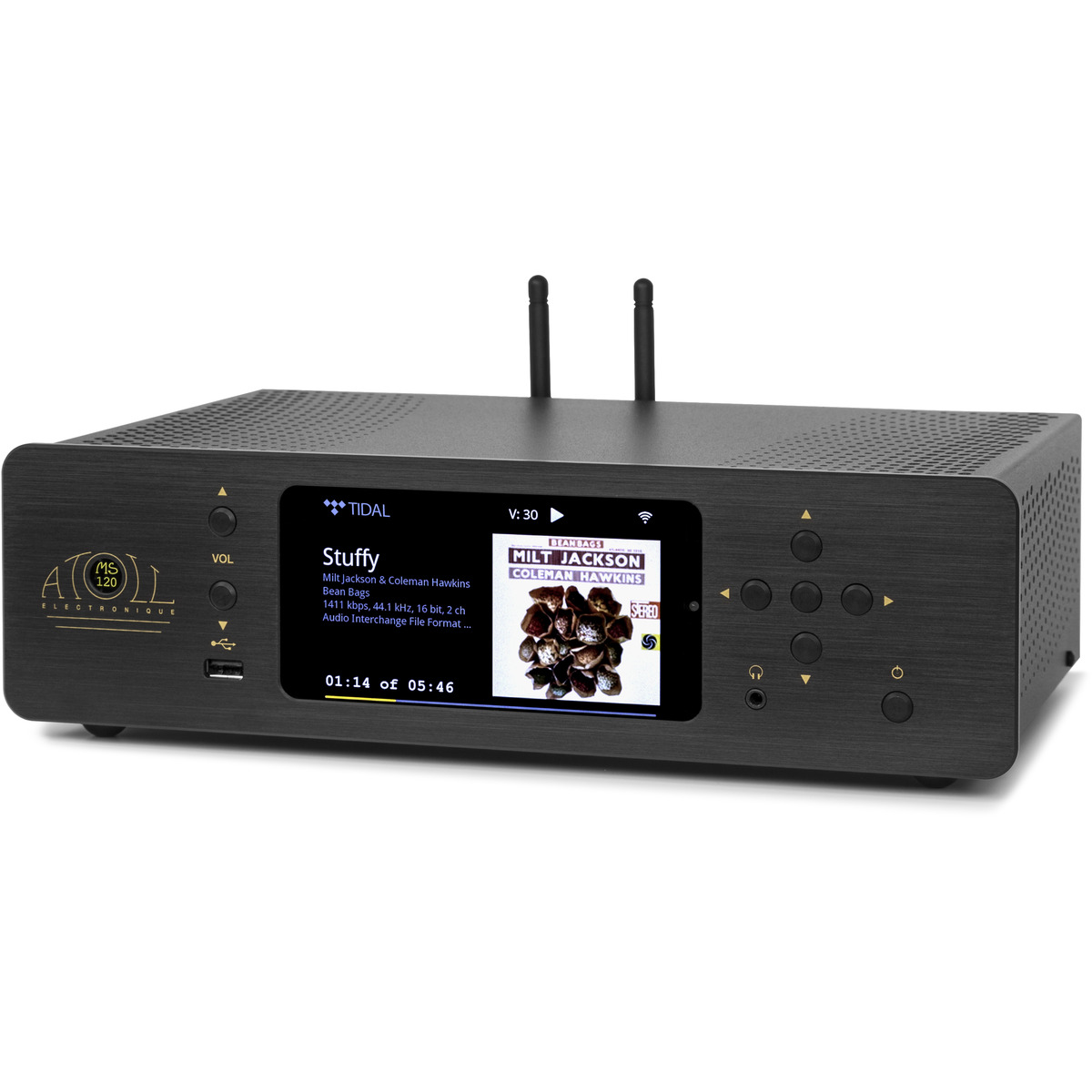

Whether you’re listening to high-definition streaming music locally from your network, from a USB key, a hard drive, Bluetooth®, or your favourite internet radio stations, our mini network player MS120 is adapted to the current needs related to reading dematerialized music files. It embeds a high-performance converter and can be used as a pure source or preamplifier.
Features
- 4 mm brushed aluminium front.
- 4,6 VA transformer dedicated to audio stages.
- High-quality MKP technology link capacitors.
- BURR-BROWN PCM1796 converter:
- – Dynamic: 123 dB.
- – Signal/Noise ratio: 123 dB.
- 5″ TFT LED colour graphic display (800*480).
- Discrete component preamp stages without negative feedback in pure Class A.
- Analogue volume management (switched resistors) that can be bypassed.
- A specific power supply is dedicated to the audio stages.
- A specific power supply is dedicated to the digital audio line converter.
- Accepted resolutions: PCM up to 24 bits/192 kHz and DSD64 and DSD128.
- Playback of audio files on the network (DLNA and UPnP compatible) in a wired RJ45 or Wi-Fi connection.
- Display of names, tags, resolutions and album covers.
- “Gapless” system (no cut between pieces).
- Ability to create playlists.
- USB-A file systems: FAT32, NTFS, EXT2/3/4.
- ATOLL “streamer” remote control supplied as standard.
- “ATOLL Signature 2” App (Android and IOS).
CONNECTIVITY
Audio inputs
- 2 Stereo line inputs.
- 4 Digital inputs: 2 Coaxial, 2 Optical.
- 1 Bluetooth® 4,2 input.
- 2 USB-A inputs (1 front, 1 rear).
Audio outputs
- 1 Stereo line output.
- 2 Digital outputs: 1 Coaxial, 1 Optical Toslink.
Various
- 1 RJ45 input (network).
- 1 Trigger output (12V).
- 1 WIFI antenna (802.11b/g/n).
- 1 Bluetooth® antenna.
Specifications
- Power supply: 9 VA + 7,8 VA (audio)
- Total of capacitors: 5 435 µF
- Output stages: 2 Discrete stages with no feedback
- Dynamic: 123 dB
- Output impedance: 22 Ω
- Maximum input level: 3,5 Vrms
- Output level: 2,8 Vrms
- Signal/Noise ratio: 123 dB
- Distortion at 1 kHz: 0,0005%
- Bandwidth: 5 Hz – 20 kHz
- Rising time: 1,7 µs
- Digital/analogue converter: BURR-BROWN – PCM1796 24 bits/192 kHz – DSD128
- Dimensions: 320×210×94 mm
- Weight: 3 Kg
