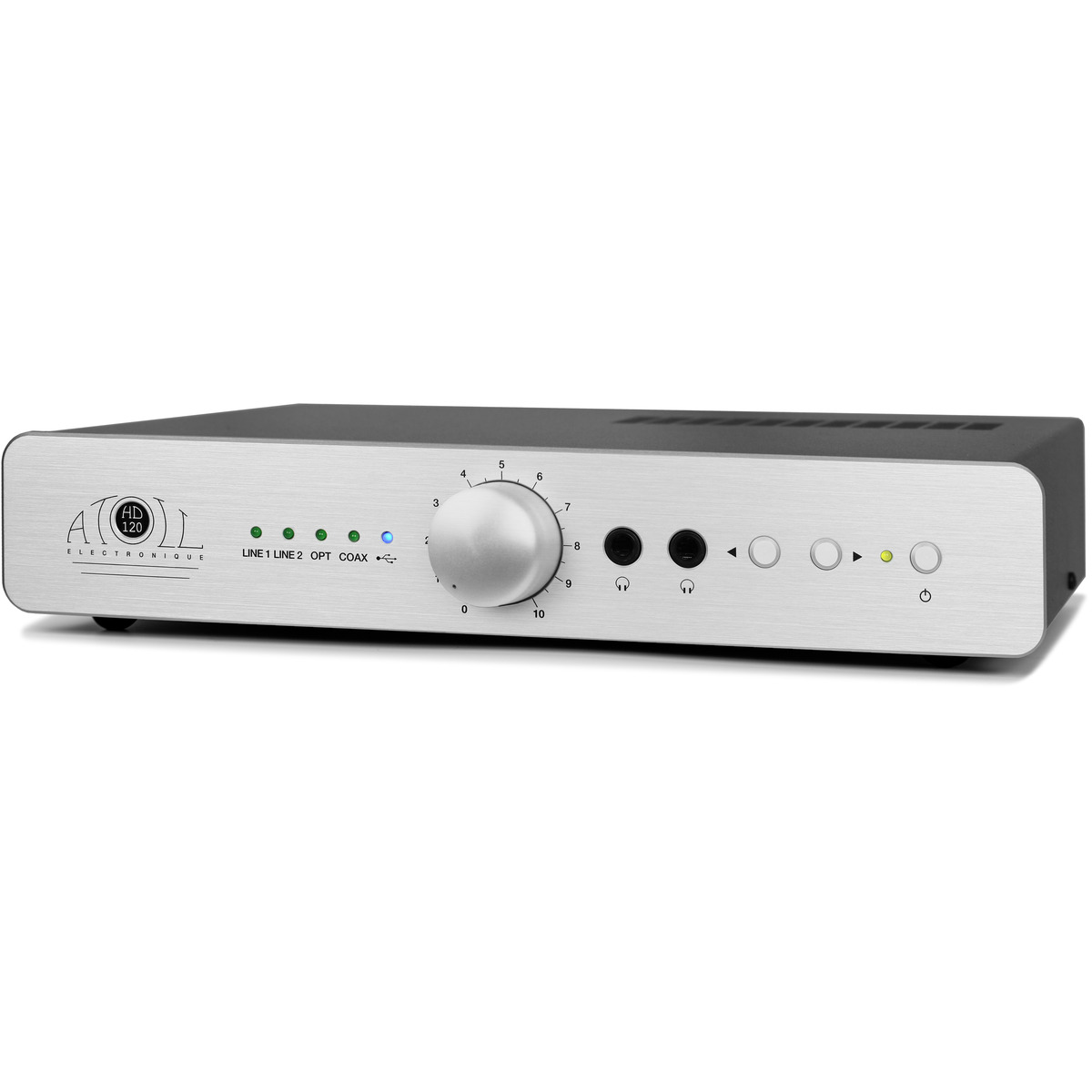

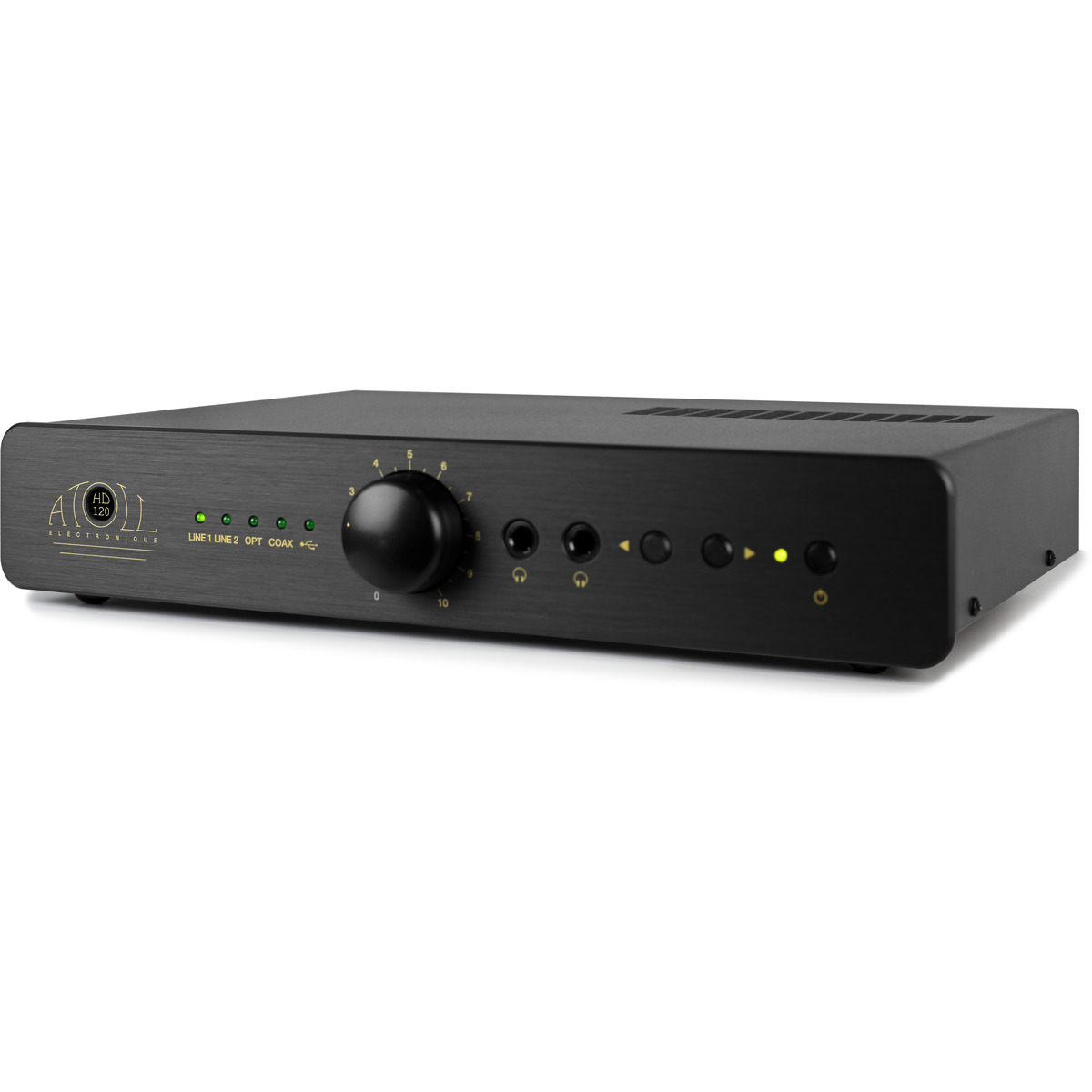

HD120 - Made in France
Main Functions
- 2 Headphones Jack Outputs (6,35mm – 1/4″)
- Inputs Selection and Indicators
- Analog Volume Control (ALPS potentiometer)
- Optional Remote Control (volume and sources selection)
- Stand-by
Connections
- 2 Line Inputs (RCA)
- 1 Preamp. Output (RCA)
- 1 Coaxial Input (32bits/384kHz)
- 1 Optical Input (24bits/192kHz)
- 1 Trigger 12V output (direct switsh on/off with MA100)
- 1 USB-B 24/192kHz asynchronous input
- 1 Bluetooth input (i2C direct)
Specifications
- Supply : 12,8 VA
- Power : 1,4W / 32ohms
- Impulse Power : 6,8W/ 32ohms
- Total of capacitors : 12 425 µF
- Input Impedance : 220 kohms
- Output Impedance on Headphones (X2) 1 ohm
- Bandwidth : 1Hz – 150kHz
- Rising Time : 3 µs
- Signal/Noise Ratio : 112 dBA
- Distorsion at 1kHz : < 0,01%
- Dimensions : 320*220*60 mm
- Weight : 2,5 Kg
