PR400 Signature - Made in France
Overview
The PR400 Signature works in double mono, one low noise transformer per channel. Potentiometer, regulator, input and output relays are also separated. Each input capacitor is shielded in a metal box linked to the ground. They are a total of 55’000µF per channel. The ALPS potentiometers are controlled by the microprocessor separately. Audio stages are based on discrete components schemes with low feedback.
The PR400 Signature uses the new OLED display.
The concept of rigorously symmetrical stages provides a very detailed and full of nuances musicality with a clear ability to separate the interpreters and the different registers.
The PR400 Signature also has the faculty to present a seamless musicality regardless of the listening level. The care taken to lower settings and the choice of components allows to make perceptible the slightest breath and the intentions of the interpreters with a no-brainer and a surprising natural. The smallest nuances and the subtleties of the timbres are perfectly intelligible.

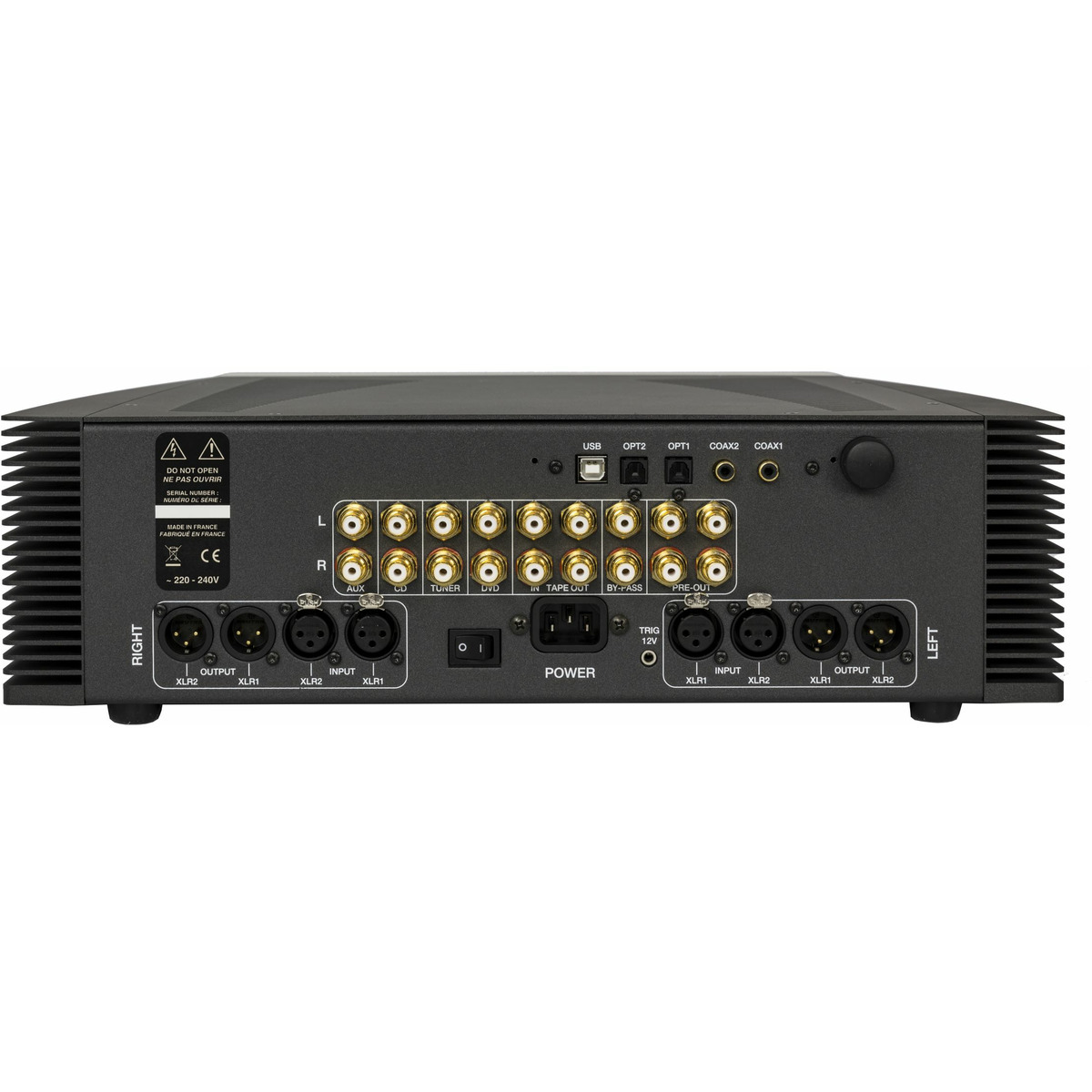

Connections
- Inputs:
- 6 Unbalanced:
- AUX
- CD
- TUNER
- DVD
- TAPE
- BY-PASS
- 2 Balanced:
- XLR1
- XLR
- Outputs:
- Fixed:
- TAPE OUT
- Variable:
- 2 Balanced
- 2 Unbalanced
Optional Digital Board
- An optional board with several Digital Inputs is available, including:
- 1 Bluetooth receiver: Direct digital to the AKM audio converter
- 2 Coaxial Inputs (24Bits/192kHz)
- 2 Optical Inputs (24Bits/192kHz)
- 1 USB-B Input: PCM & DSD
- Audio converter: AKM – AK4490
- PCM from 16 bits to 32bits up to 384 kHz on USB-B input (asynchronous)
- DSD: DSD64 & DSD128
- USB Interface: XMOS with specific program designed for ATOLL
Specifications
- Analog Supplies: 2x10 VA
- Digital Supplies: 1x10 VA
- Total of capacitors: 112 000 µF
- Inputs: 5 line 2 XLR
- Input Impedance: 357 kΏ
- Sensitivity: 4 V
- Signal/noise Ratio: 100 dB
- Distortion at 1kHz: 0,004%
- Bandwidth: 0,5Hz-780kHz
- Rising Time: 0,4µs
- Dimensions: 440*130*370mm
- Weight: 11 Kg
