Mosconi PICO-V2-1

Purchase this product

RRP: $1,399.95

Enquire about this product

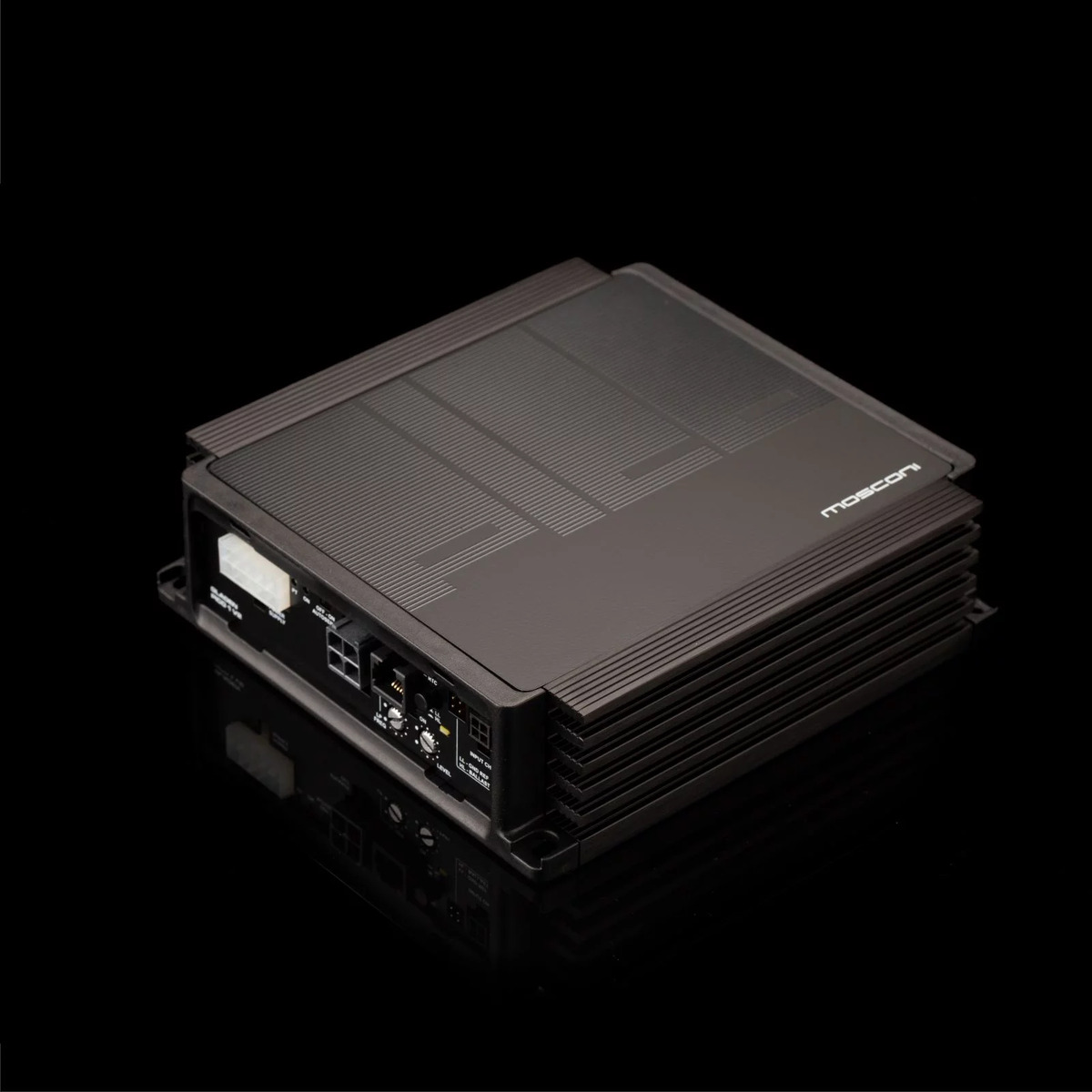

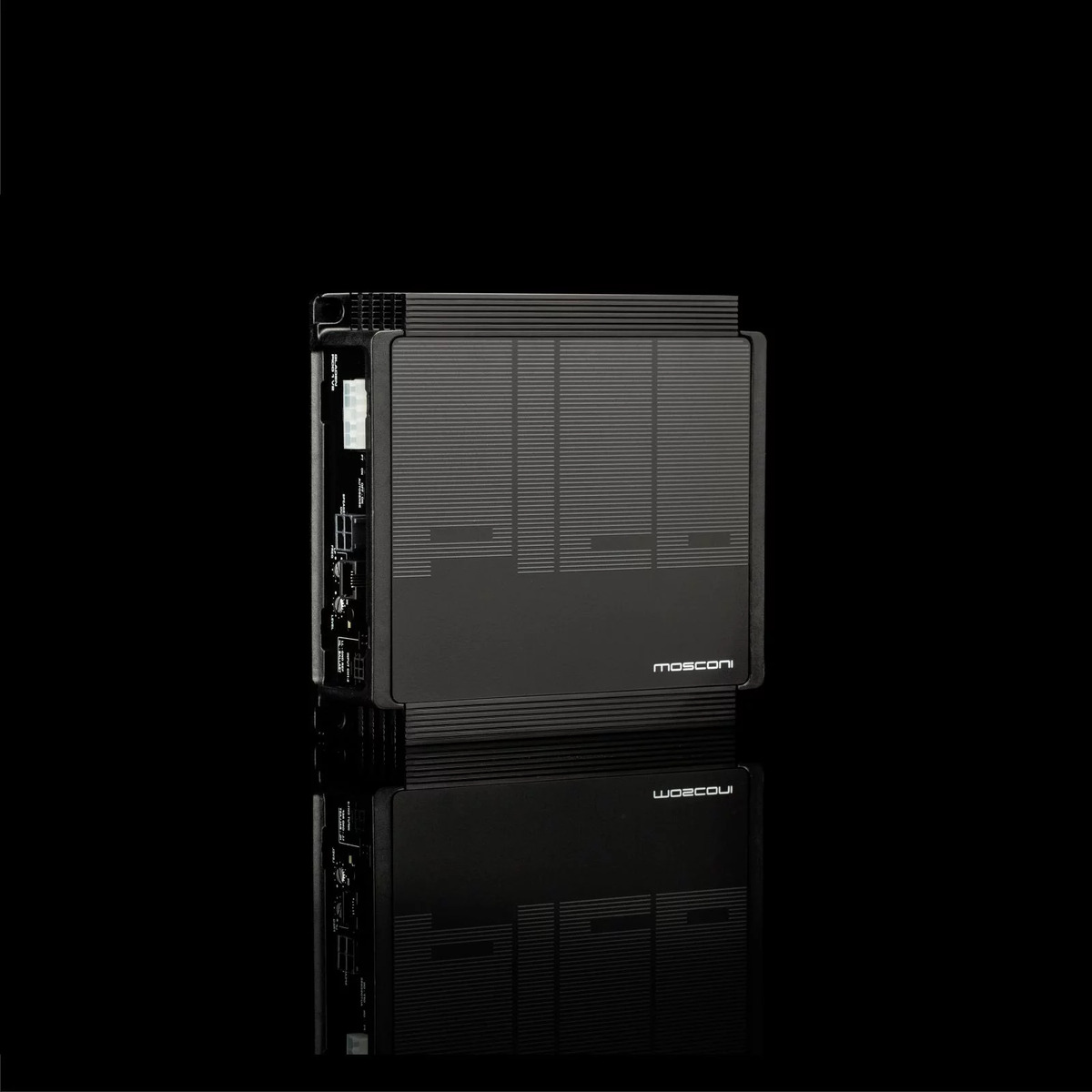

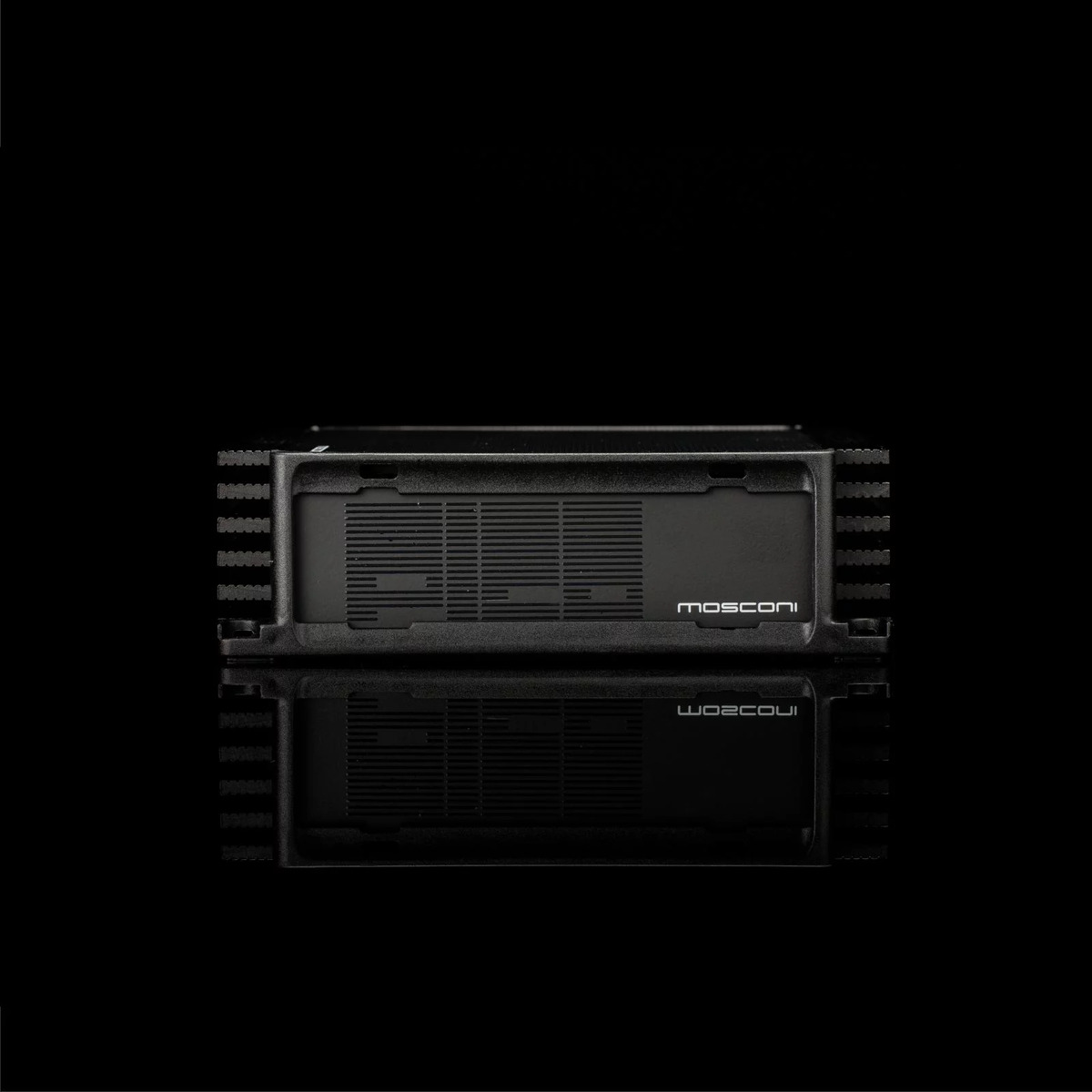

Mosconi Gladen Pico 1 Channel HQ Amplifier - Made in Italy


Overview

Full-range PWM amplifier with separate, synchronized modulation and fast high-current mosfets. The Mosconi PICO 1 delivers a full 9000 Wrms into 1 ohms. It provides necessary power even to powerful subwoofers and extreme front systems at any time.

Ideal (subwoofer) supplement to a Mosconi PICO DSP amplifier, but with the high-level and low-level input and its own filters, it can also be used universally.

  • Automatic switch-on (only high level, SE or BTL mode)
  • Remote volume control (optional)

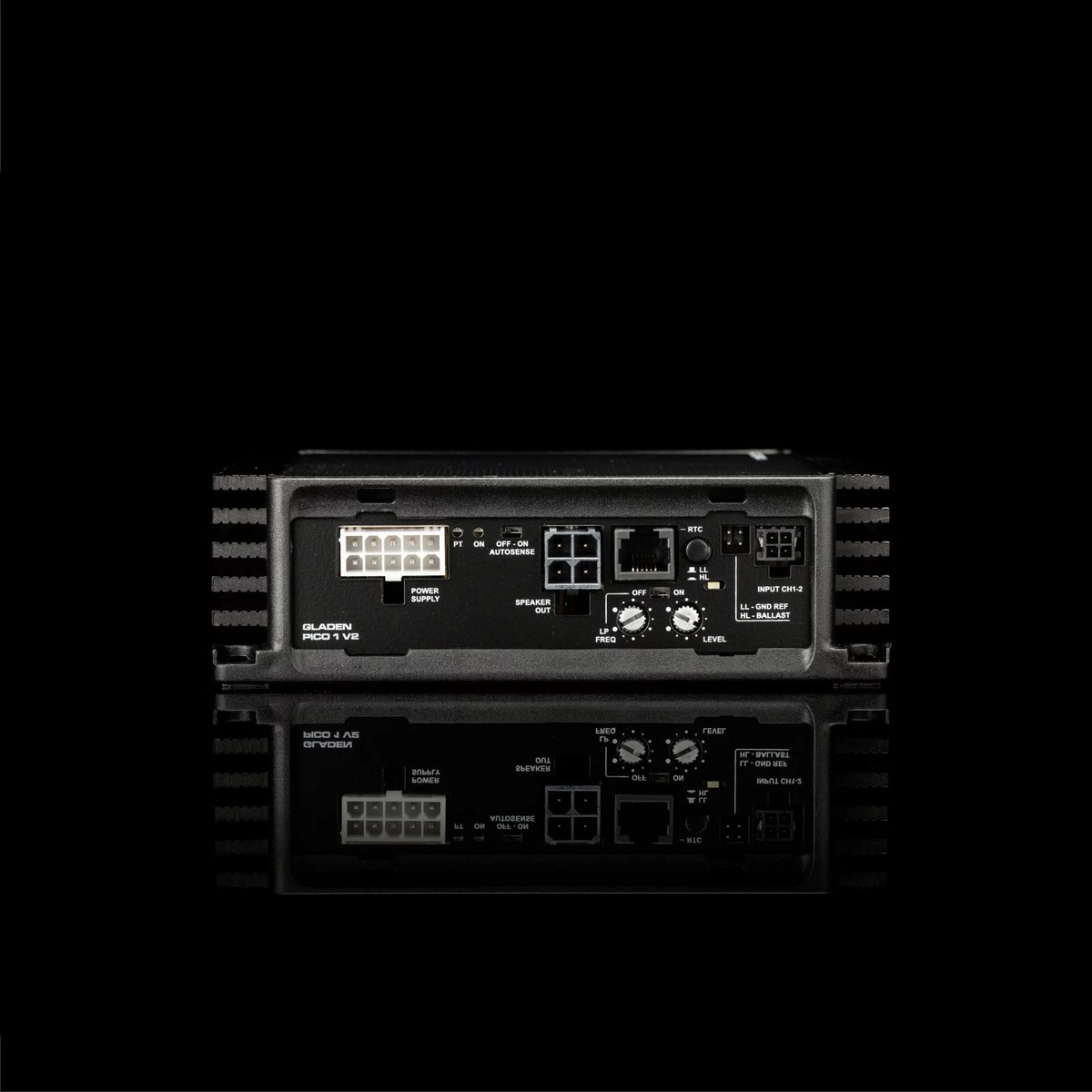

  • Molex connectors

Features

  • 1 channel amplifier
  • Class D technology
  • Up to 900 Watts @ 1 Ohm

Specifications

  • Output power RMS @ 4Ω: 1 x 350 Watts
  • Output power RMS @ 2Ω: 1 x 600 Watts
  • Output power RMS @ 1Ω: 1 x 900 Watts
  • Input voltage: 0.3 V - 20 V
  • Overall efficiency:> 75 %
  • Auto-On (only High Level):Off - BTL
  • Low-pass filter: Off / 45 - 310 Hz (12 dB/Oct)
  • Subsonic filter (always on): 13 Hz (12 dB/Oct)
  • Dimensions: 150 x 115 x 46 mm
  • Weight: 1050 grams


Documentation
