Atoll Evolution CD Player - Made in France
Overview

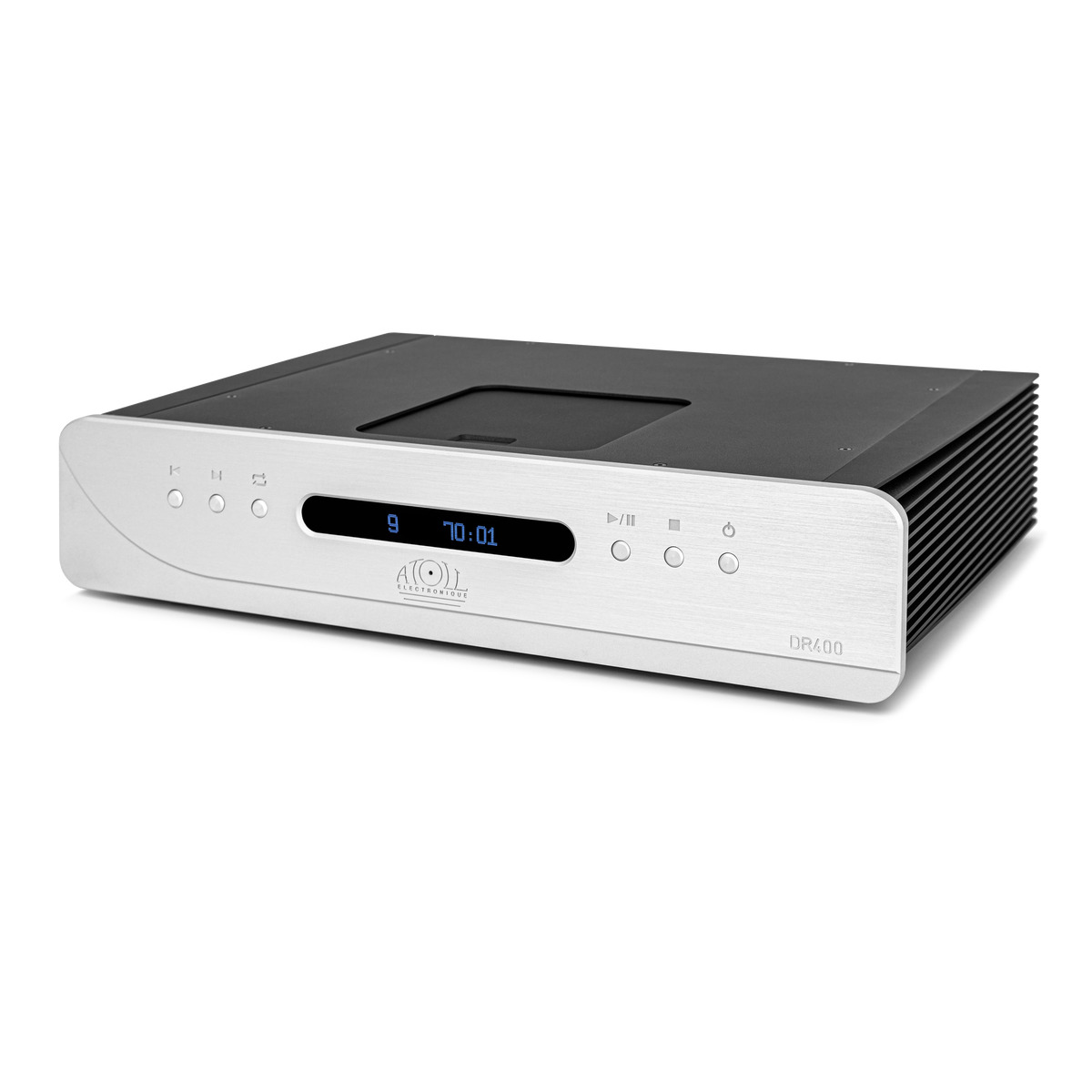

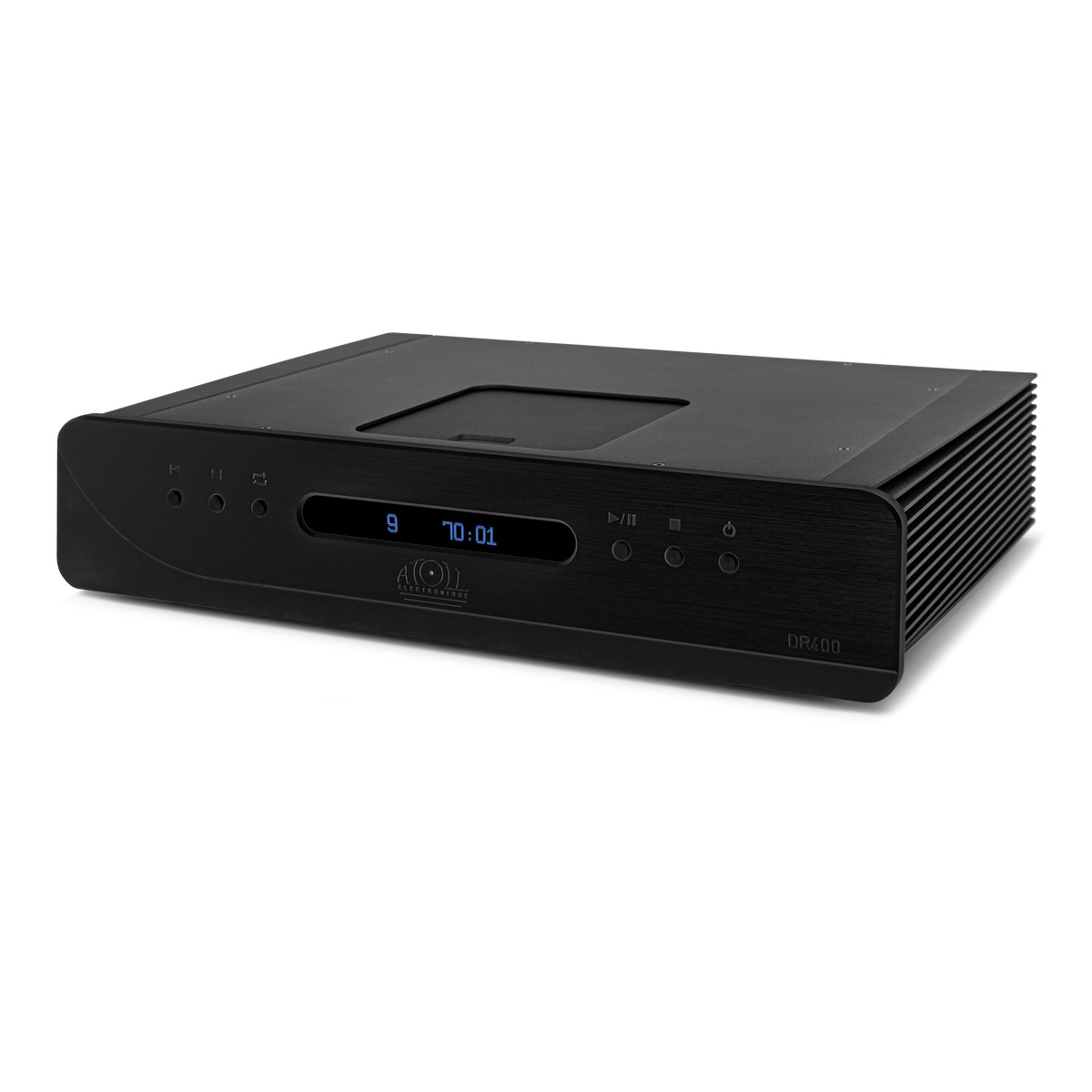

The DR400 EVO is the pure Drive version of the CD400 EVO, incorporating innovative technical solutions.
It has ATOLL’s latest Top loading mechanics, a solid aluminium platter, and a specific anti-vibration system. The digital stages and power supplies have been designed to provide maximum realism and density to the sound reproduction.
Features
- 10 mm brushed, micro-blasted and anodized aluminium front panel, high-precision engraving.
- 2 mm steel chassis.
- Solid aluminium sides.
- New top-loading mechanics were developed by ATOLL, including suspension mounting and a solid aluminum platter.
- 30 VA linear transformer (general power supply).
- 1.6 VA linear transformer (control logic).
- Four regulated and independent power supplies.
- Total capacitance of 88,000 µF.
- Anti-vibration system.
- High-speed LVDS (Differential Line Driver) circuit for formatting S/PDIF and AES/EBU signals.
- High-contrast OLED display (on or off mode after 5 seconds of inactivity).
- CD text display.

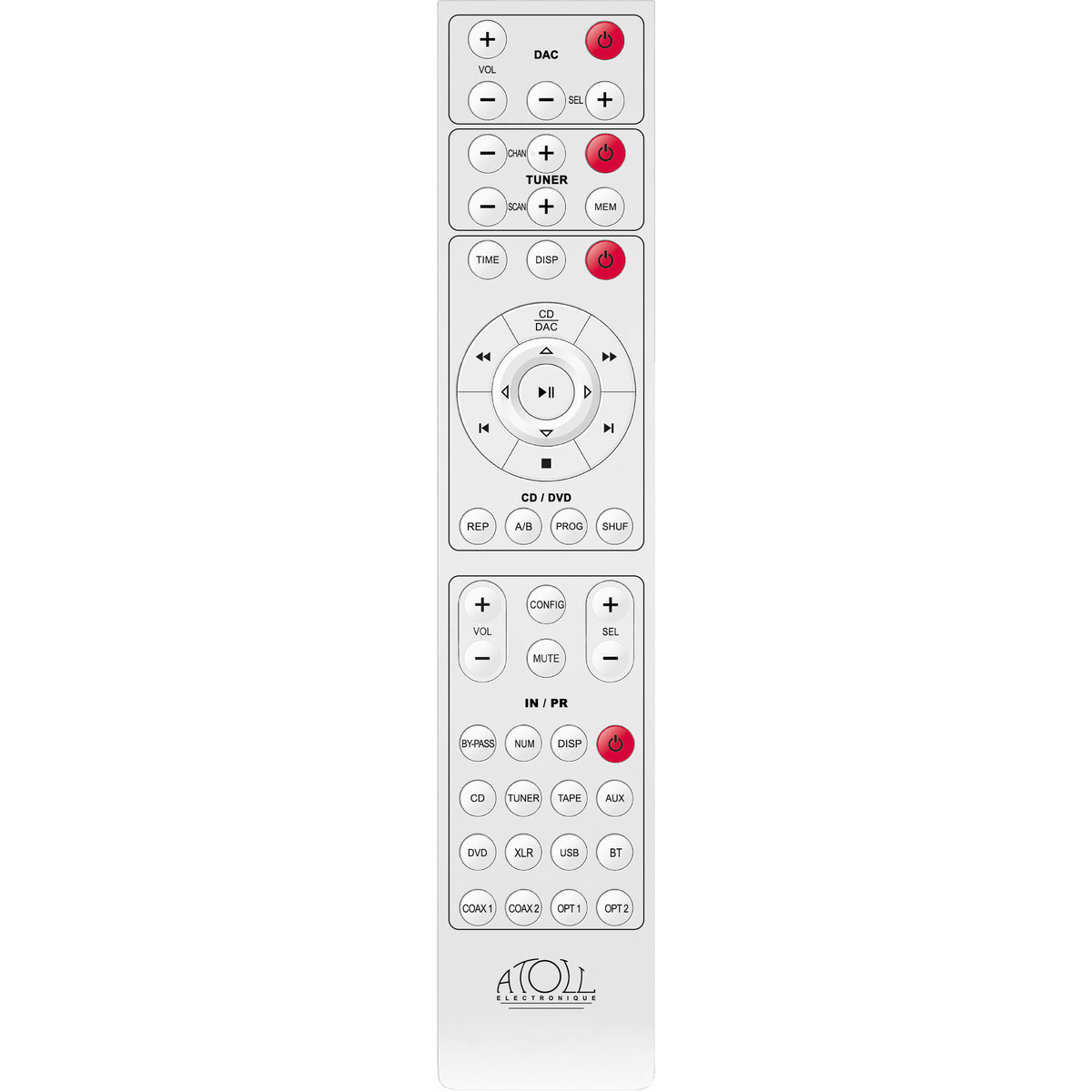

- ATOLL global remote control supplied as standard.

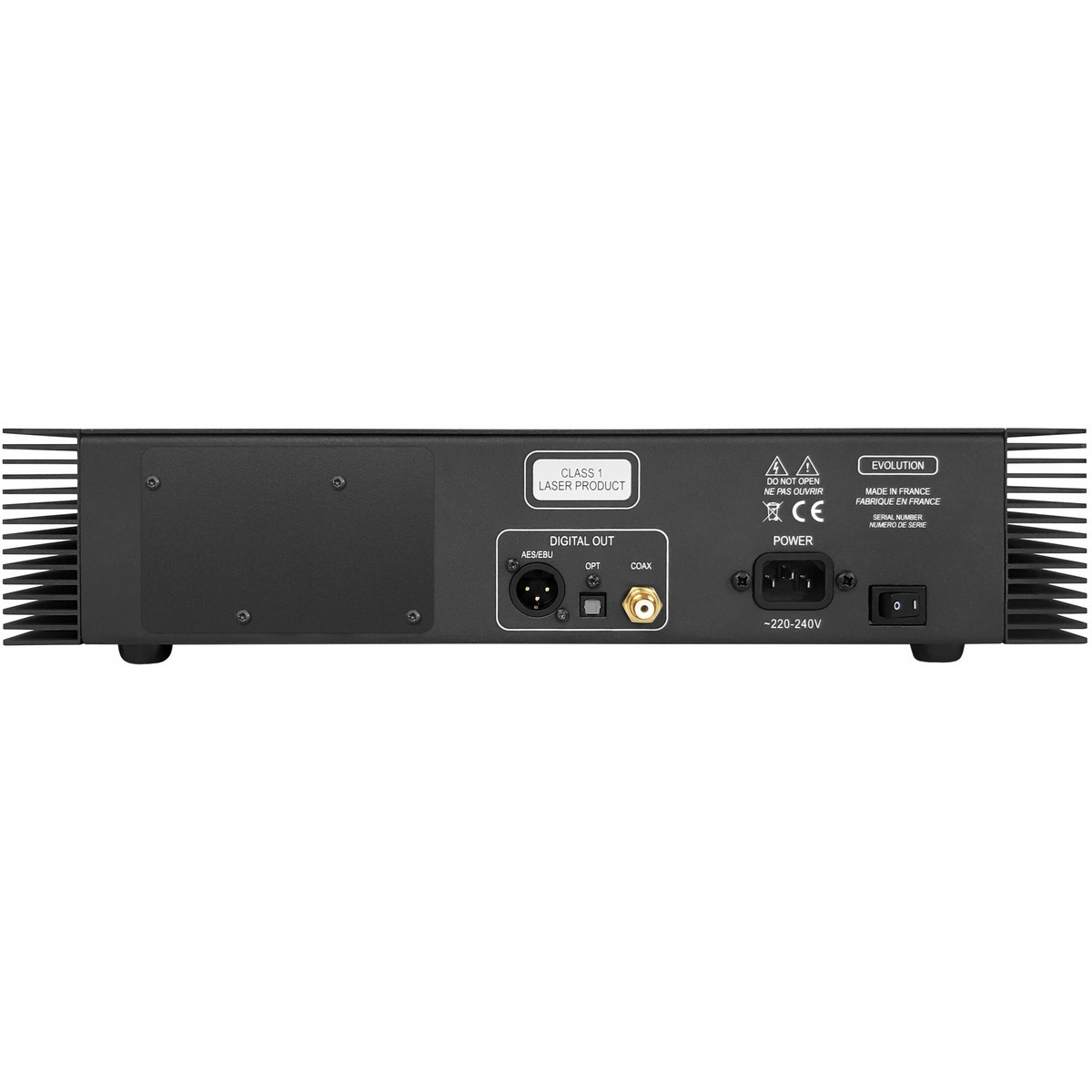

Connectivity
- 1 AES/EBU output.
- 1 Digital optical output.
- 1 Digital coaxial output.
Specifications
- Power supply: 30 VA + 1.6 VA
- Total of capacitors: 88,000 µF
- Output signal amplitude: 1 V
- Standby consumption: < 0.5 W
- Operating consumption: 4 to 10 W
- Dimensions: 440×340×100 mm
- Weight: 12 Kg
