Atoll Evolution 2 Channel Power Amplifier - Made in France
Overview
The AM200 Evolution is suitable for most HIFI or audio-video applications. Very scalable, it can be used alone or in bi-amplification. It can be associated with an integrated amplifier or an ATOLL preamplifier. It is bridgeable in a monoblock via an internal switch. It is equipped as standard with a 12V Trigger input (direct ignition in conjunction with a preamp).
Features

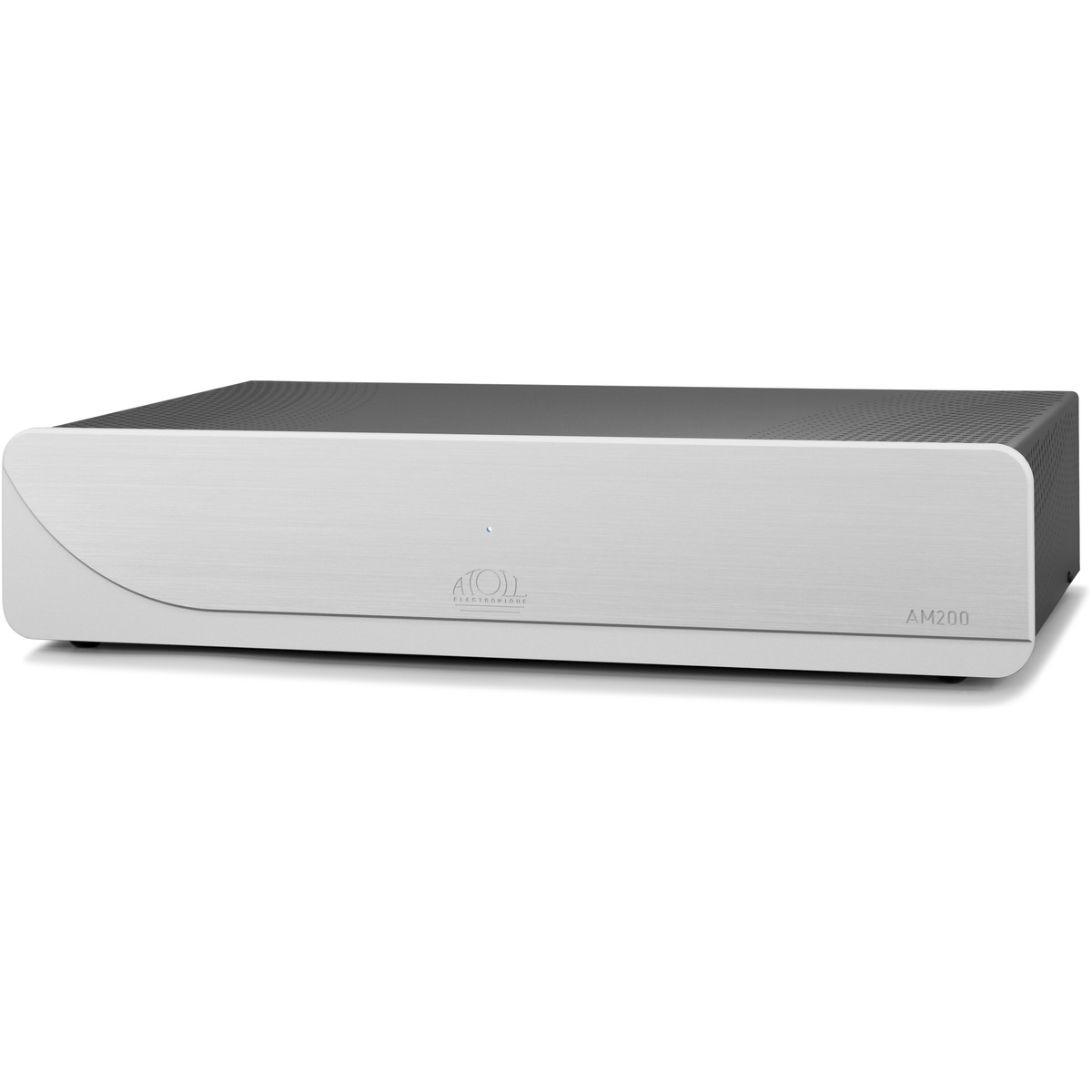

- 8 mm brushed aluminium front.
- 2×120 Wrms / 8Ω.
- 2 toroidal transformers of 340 VA each.
- Filtering capacitors: 8×6800 μF high quality, low ESR specific for ATOLL.
- MOS-FET dual push-pull power stage.
- Integral dual mono architecture.
- Balanced discrete component audio stages.
- MOS-FET power transistor.
- Polarization of output stages in class A/B.
- Double-sided circuit boards with nickel/gold finish.
- Mono block bridgeable.
- 12V Trigger input.

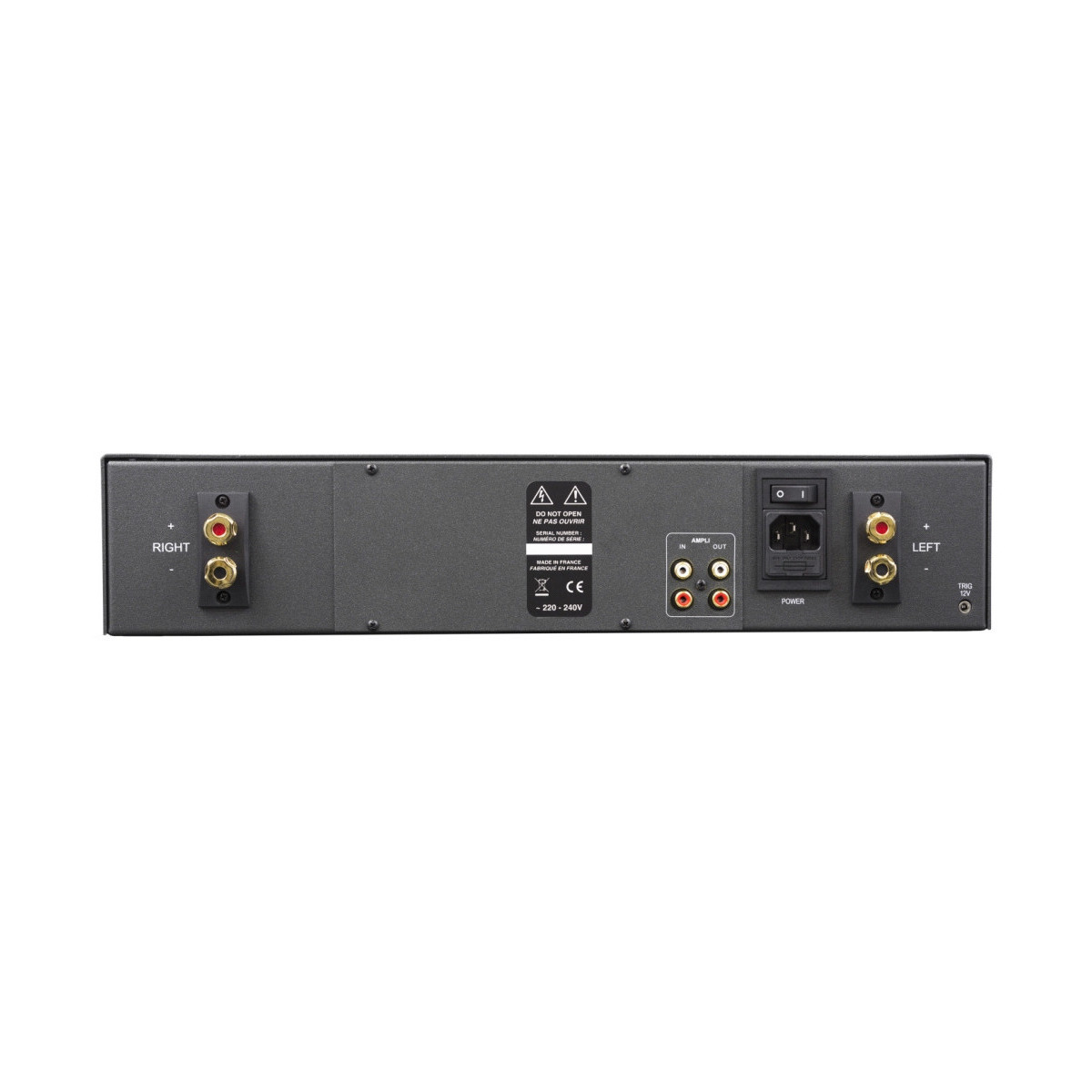

Connectivity
- 1 RCA stereo analogue input.
- 1 RCA stereo analogue output.
- 12V Trigger input.
- Loudspeaker outputs on gold-plated screw terminal blocks.
Specifications
- Power Wrms/channel/8Ω (230v):120 W
- Power Wrms/channel/4Ω (230v):200 W
- Pulse power/channel:300 W
- Supply:2×340 VA
- Total of capacitors:59 420 μF
- Number of inputs:1 RCA
- Consumption with switch off:0 W
- Consumption in operation:20 W - 600 W
- Input impedance:220 kΩ
- Sensitivity:1,77 V
- Signal/noise ratio:100 dB
- Distortion at 1 kHz:0,05%
- Bandwidth:5 Hz - 200 kHz
- Rise time:1,5 μs
- Dimensions:440×295×95 mm
- Weight:12 kg
