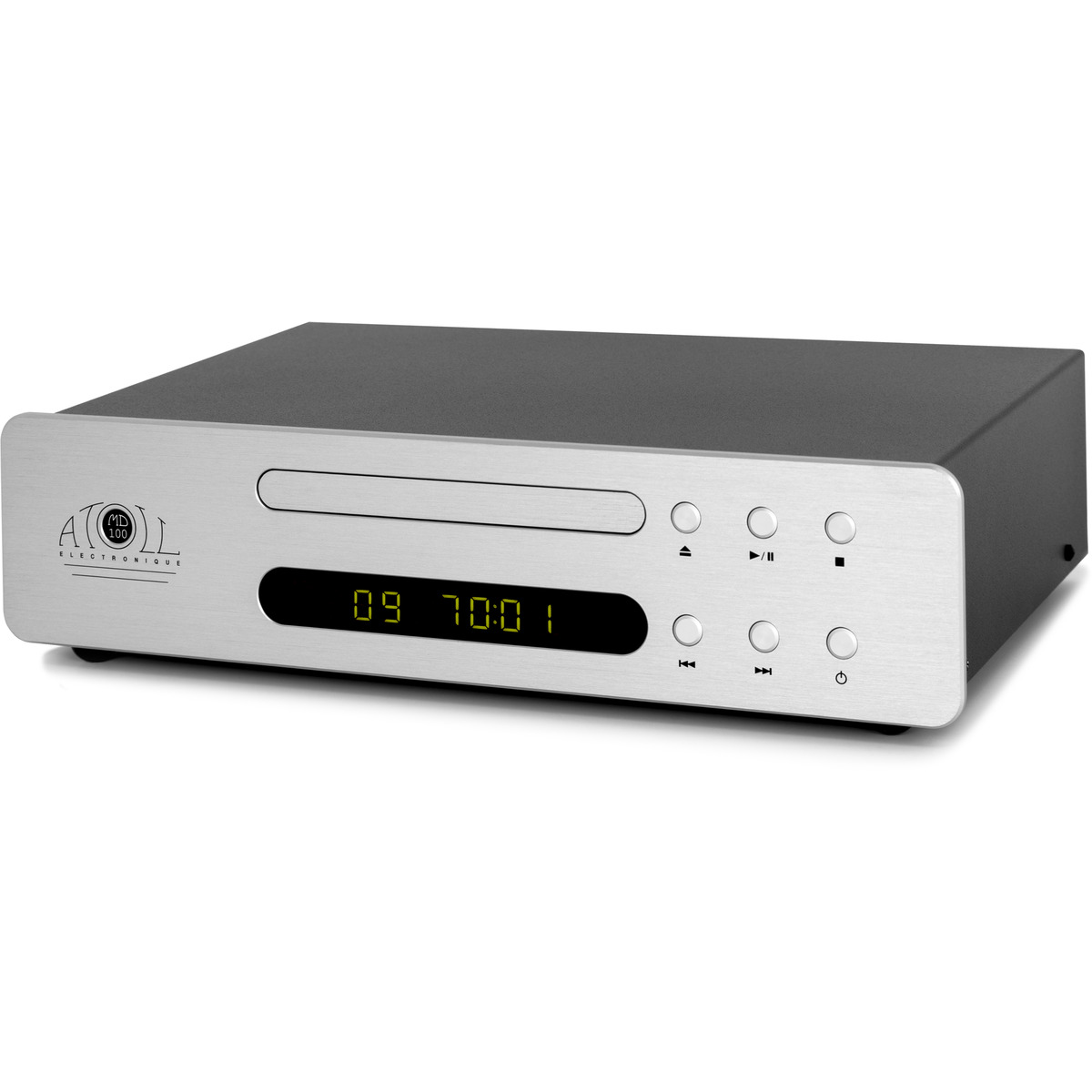

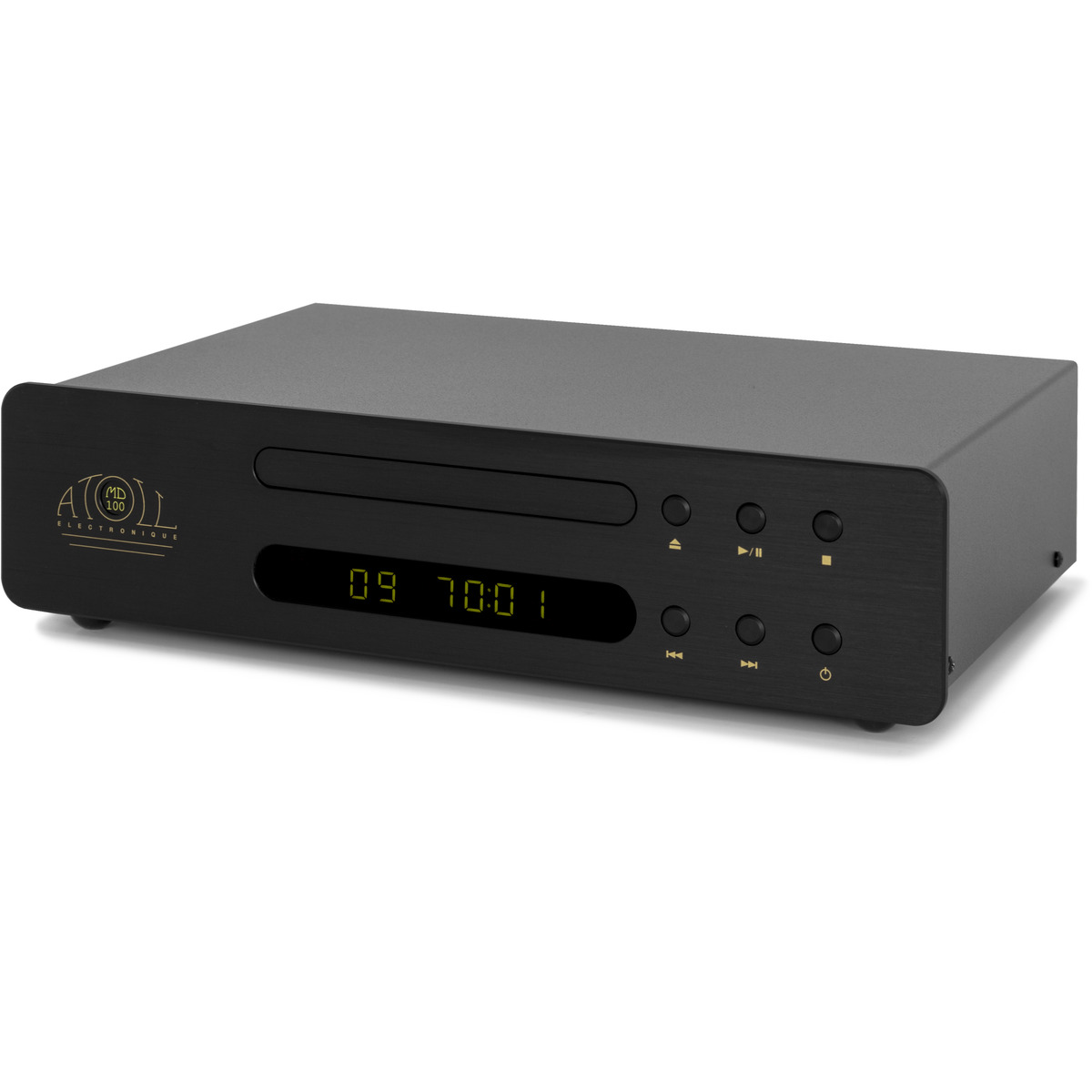

Atoll Evolution MD100 Mini CD Player - Made in France
Overview
The latest addition to the Mini line, the MD100 player, is the ideal complement to our “Mini-system” elements for playing your CDs. This player benefits from quality components, particularly a TEAC CD reading mechanism compatible with CDs, CD-R, CD-RW, MP3 files, and WMA-AAC.
Features
- Original transport drive from TEAC (compatible CD, CD-R, CD-RW; MP3 format)
- Aluminium front panel of 4 mm (black or silver) and complete steel chassis of 1,5 mm
- 3 regulated supplies
- PCM5122 converter ; direct current output stages (with no capacitor)

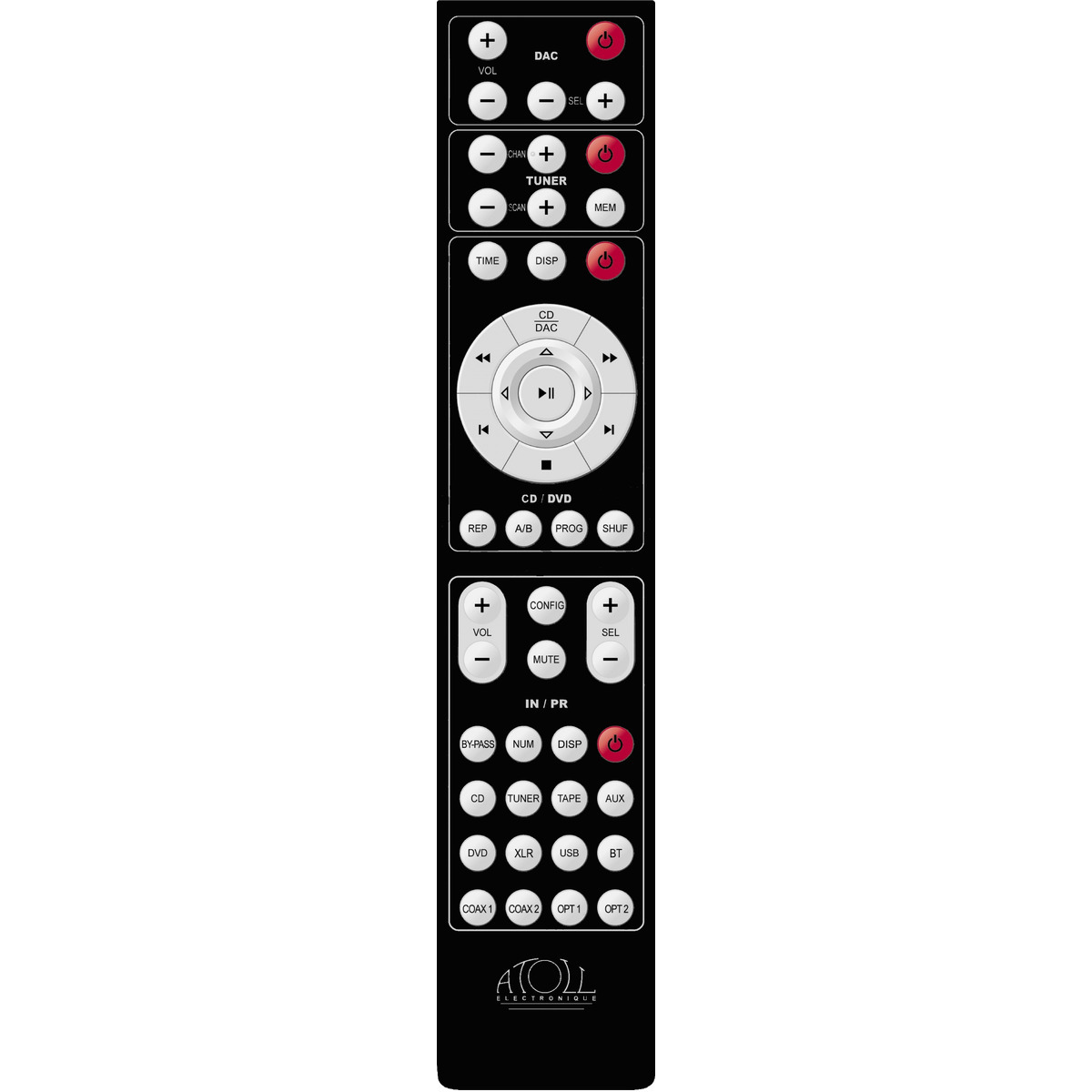

- Serial Remote control

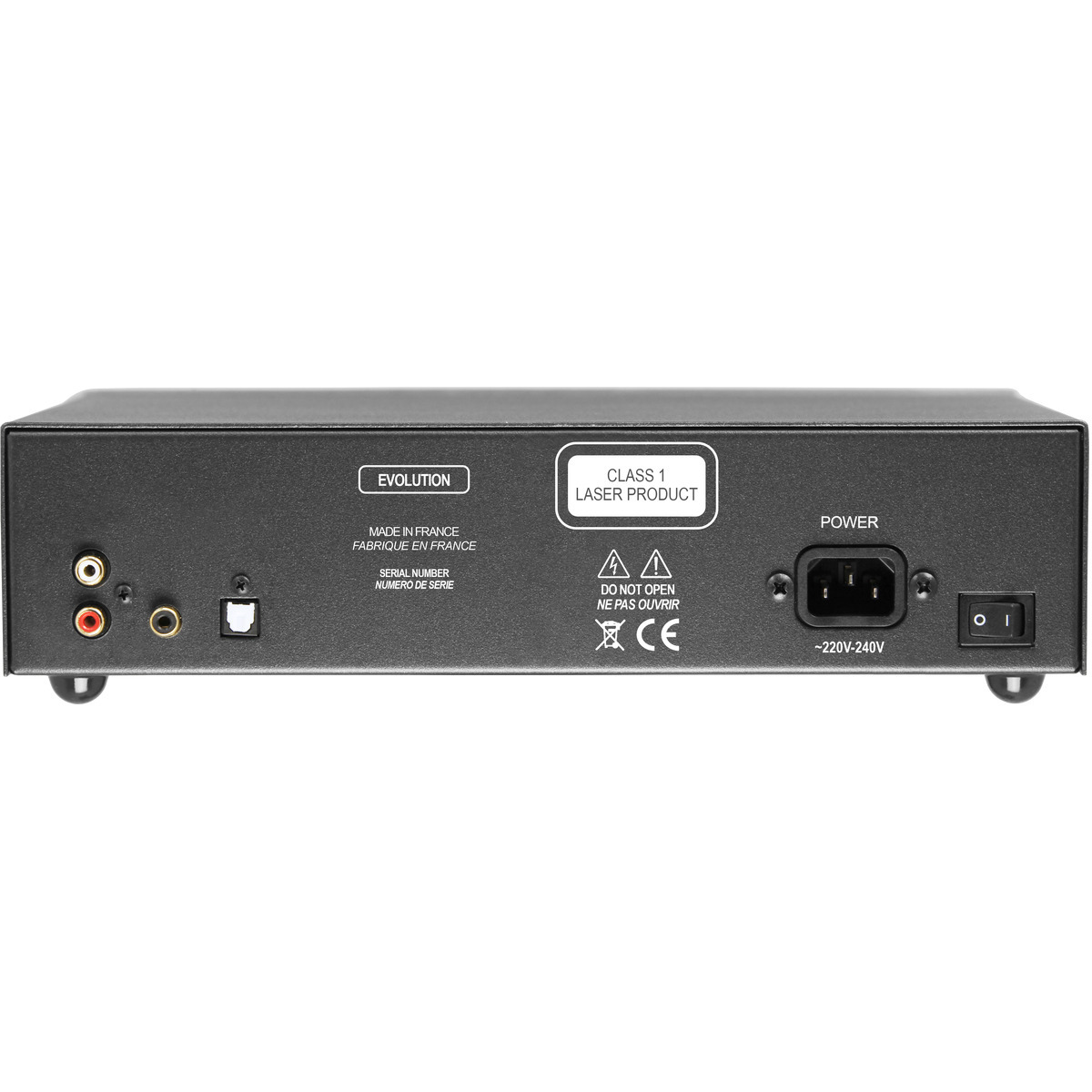

Connections
- RCA Output;
- 2 Digital Outputs (optical & coaxial)
Specifications
- Power supply: 10 W
- Total of capacitors: 11 094 μF
- Output level: 2,0 Vrms
- Consumption:
- - switch off 0 W
- - standby < 0,5 W
- - operating 2 to 4 W
- Digital output: Coaxial & Optical
- Digital input: 24 bits / 192 kHz
- USB input: 24 bits / 192 kHz
- Converter (D/A): PCM5122
- Signal/Noise ratio: 112 dB
- Dynamic: 112 dB
- Distortion at 1 kHz: 0,002 %
- Bandwidth: 5 Hz - 20 kHz
- Rise time: 2,0 μs
- Dimensions (mm): 320×210×83
- Weight: 2.4Kg
