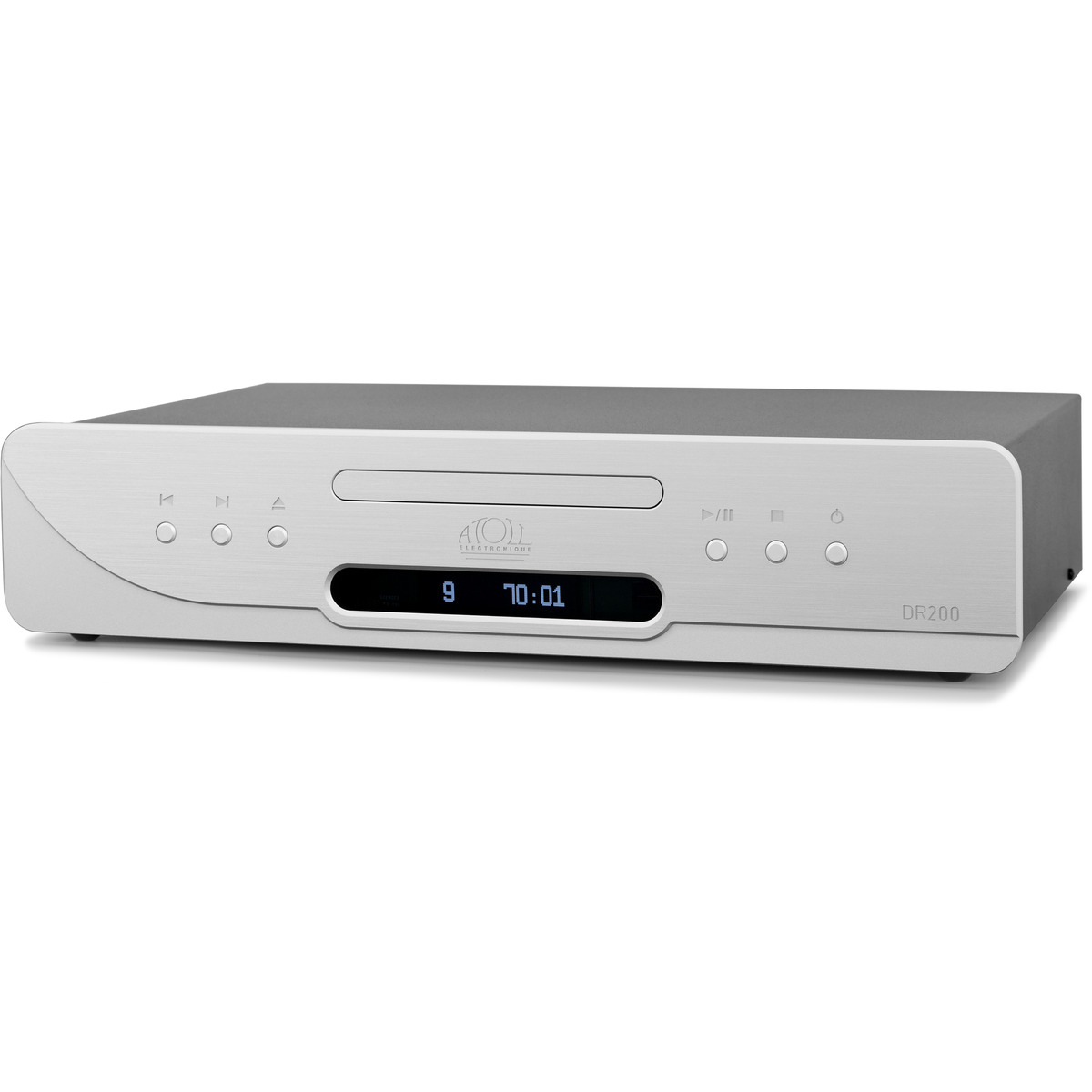

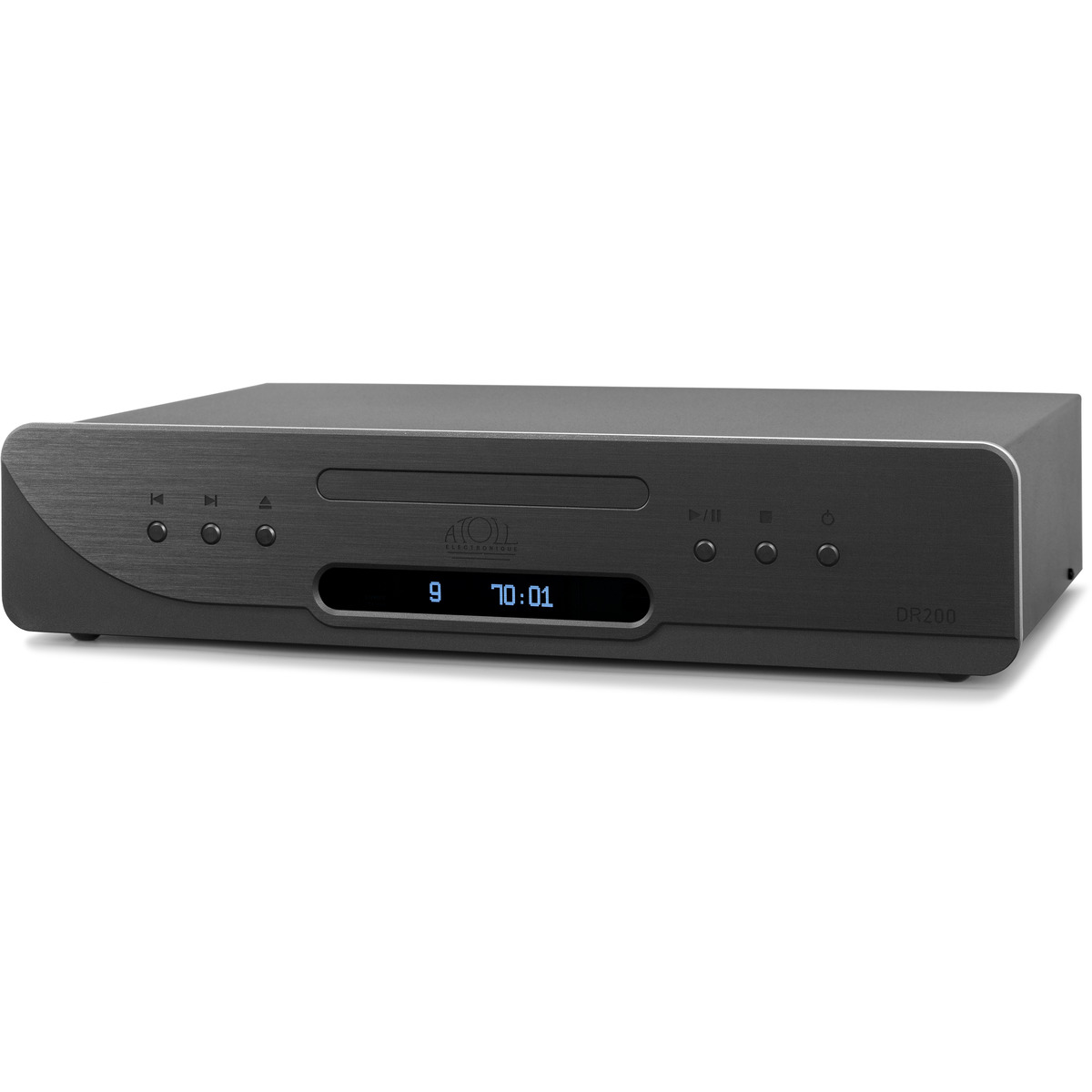

Atoll Evolution DR200 CD Drive - Made in France
Overview
Many innovations in power supplies or digital output stages have benefited the Evolution Series CD drives, and the mechanics received specific anti-vibration treatment.
Features
- Special optimized treatment in order to reduce the jitter :
- TEAC CD drive designed with specific anti-vibration material
- Chassis treated against parasite vibrations
- Regulated supply with high current capacity dedicated to the mechanism
- Special low noise linear supply dedicated to digital stream
- LVDS circuit for digital format (high resolution treatment)
- Insulation of the digital signals with a specific 1:1 transformer dedicated to S/PDIF and AES/EBU signals.
- CD text
- Low consumption OLED display
- Accepted Disc : CD, CD-R, CD-RW. Formats : MP3-WMA-AAC

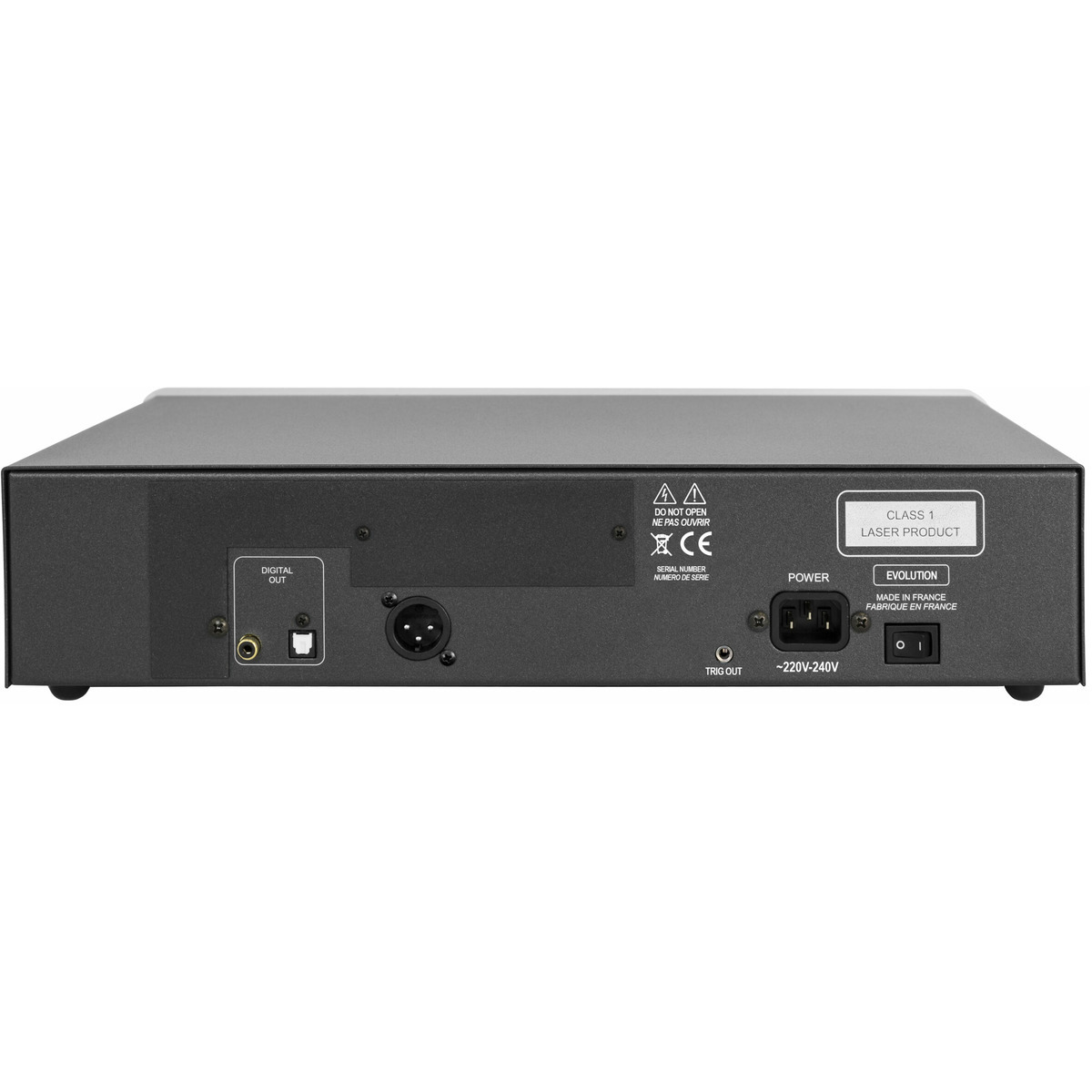

Connections
- Coaxial output
- Optical output
- AES/EBU output
Specifications
- Power supply: 30+1,6 VA
- Total of capacitors: 23 000 μF
- Output level: -
- Consumption:
- - switch off 0 W
- - standby < 0,5 W
- - operating 4 to 12 W
- Digital output: Coaxial & Optical-AES/EBU
- Digital input: -
- USB input: -
- Converter (D/A): -
- Signal/Noise ratio: -
- Dynamic: -
- Distortion at 1 kHz: -
- Bandwidth: -
- Rise time: -
- Dimensions (mm): 440×284×95
- Weight: 7Kg
