Atoll Evolution DR100 CD Drive - Made in France
Overview
Many innovations in power supplies or digital output stages have benefited the Evolution Series CD drives, and the mechanics received specific anti-vibration treatment.
Features
- Pure audio CD drive from TEAC designed with specific anti-vibration material
- 4mm aluminium brushed front panel with graved logo and “Wave”, 1,5mm steel chassis, aluminium keys
- Linear Supplies principes
- LVDS circuit for digital format (high resolution treatment)

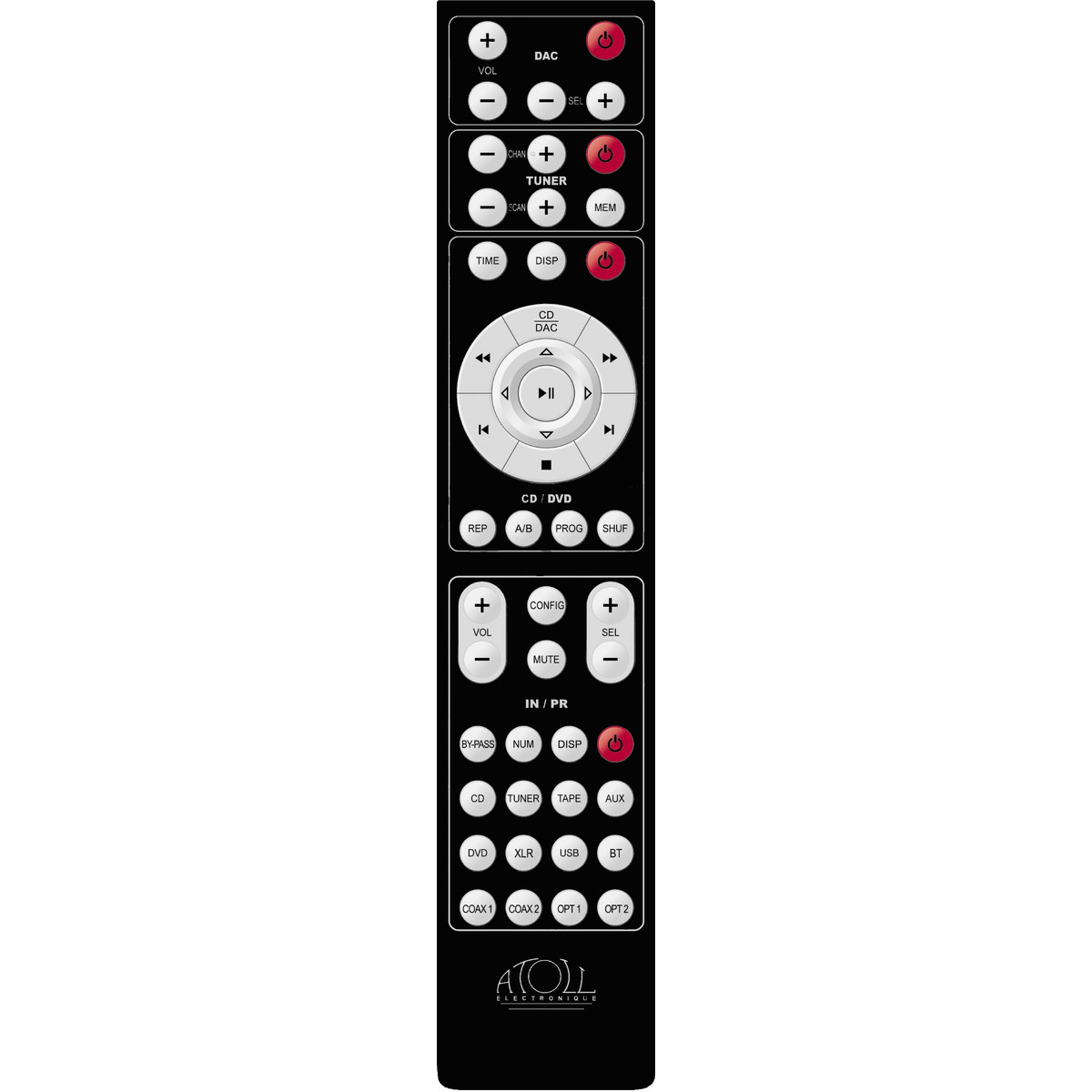

- Serial remote control
- CD text
- Readable files: CD, CD-R, CD-RW. Formats: MP3-WMA-AAC
- Low consumption OLED display

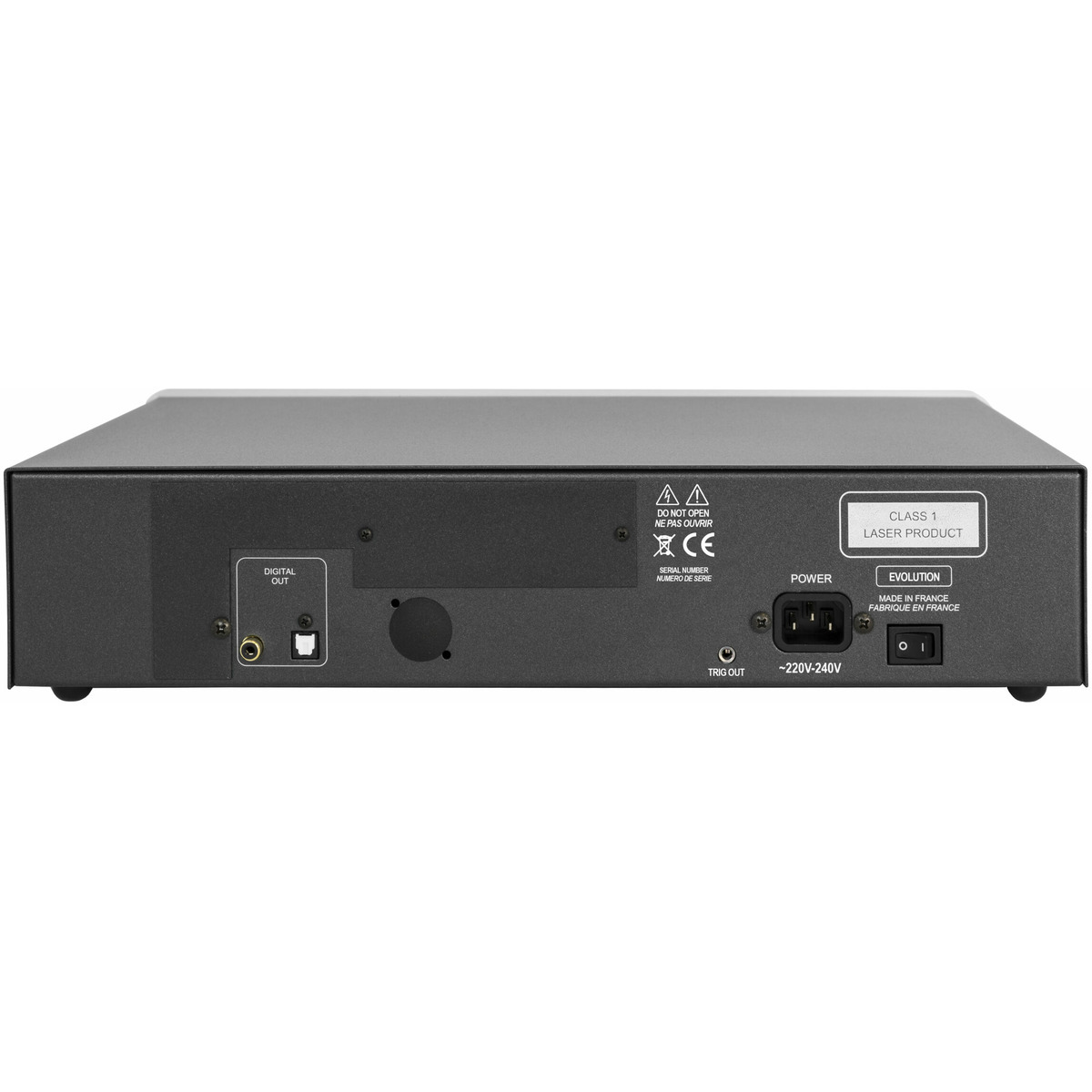

- 2 digital outputs: 1 coaxial & 1 optical
Specifications
- Power supply: 30+1,6 VA
- Total of capacitors: 15 000 μF
- Output level: -
- Consumption:
- - switch off 0 W
- - standby < 0,5 W
- - operating 4 to 12 W
- Digital output: Coaxial & Optical
- Digital input: -
- USB input: -
- Converter (D/A): -
- Signal/Noise ratio: -
- Dynamic: -
- Distortion at 1 kHz: -
- Bandwidth: -
- Rise time: -
- Dimensions (mm): 440×280×95
- Weight: 6Kg
Documentation
