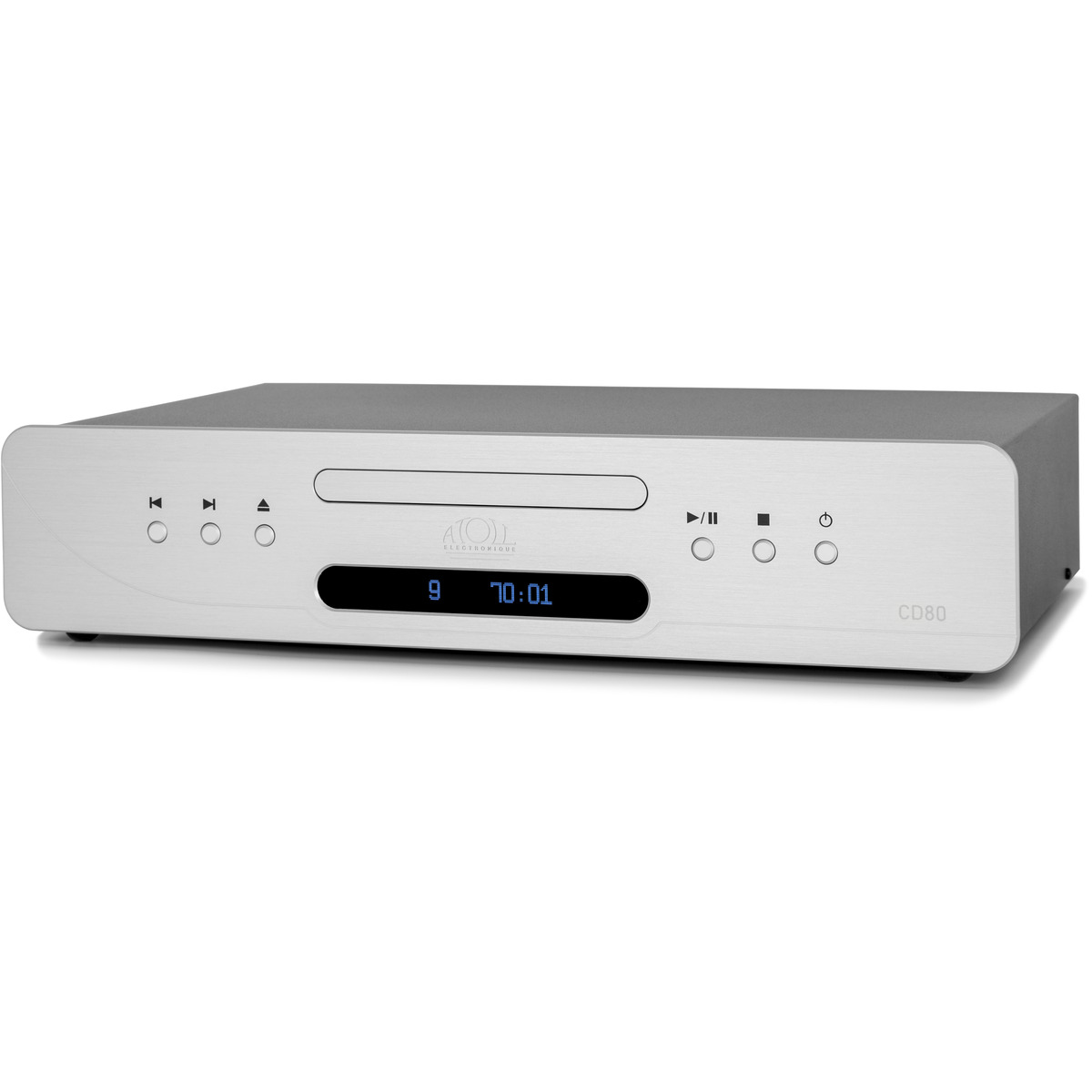

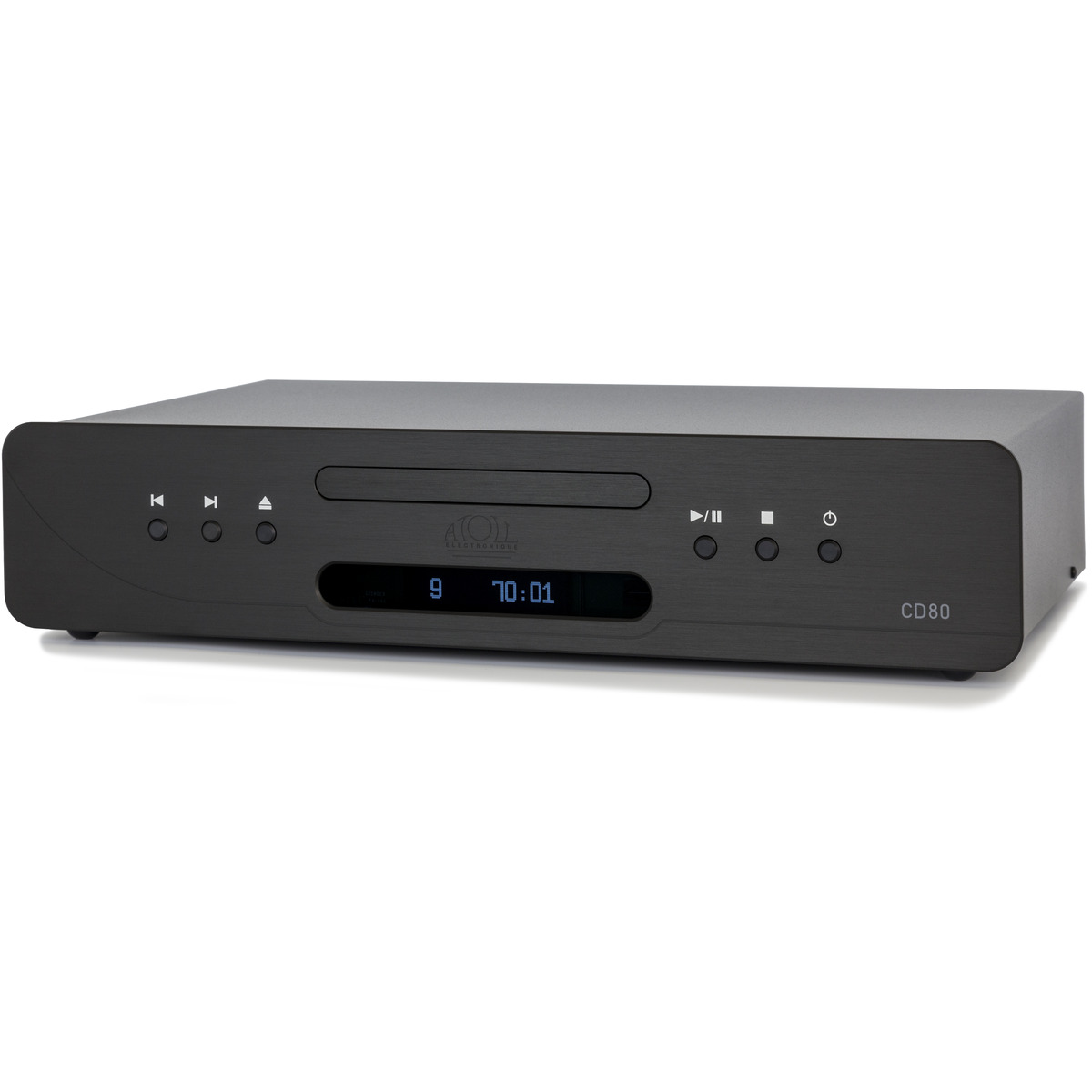

Atoll Evolution CD80 CD Player - Made in France
Overview
The Evolution Series CD players have benefited from many innovations in power supplies or audio and conversion stages. In addition, these devices can now accommodate a 24 bits/192 kHz DAC board relying on the player’s internal converter. The USB input is asynchronous.
Features
- Pure audio CD drive from TEAC
- Supplies of audio stages with linear transformer
- Linear supply of digital stages with specific 30VA transformer
- Symetrical supply of audio stages
- 8 regulated supplies including a specific one, low noise for the converter
- BURR-BROWN PCM1791A converter
- differential audio outputs with discrete components polarized in A class
- DC coupling (no link capacitor)
- 4mm aluminium brushed front panel with graved logo and “Wave”, 1,5mm steel chassis, aluminium keys

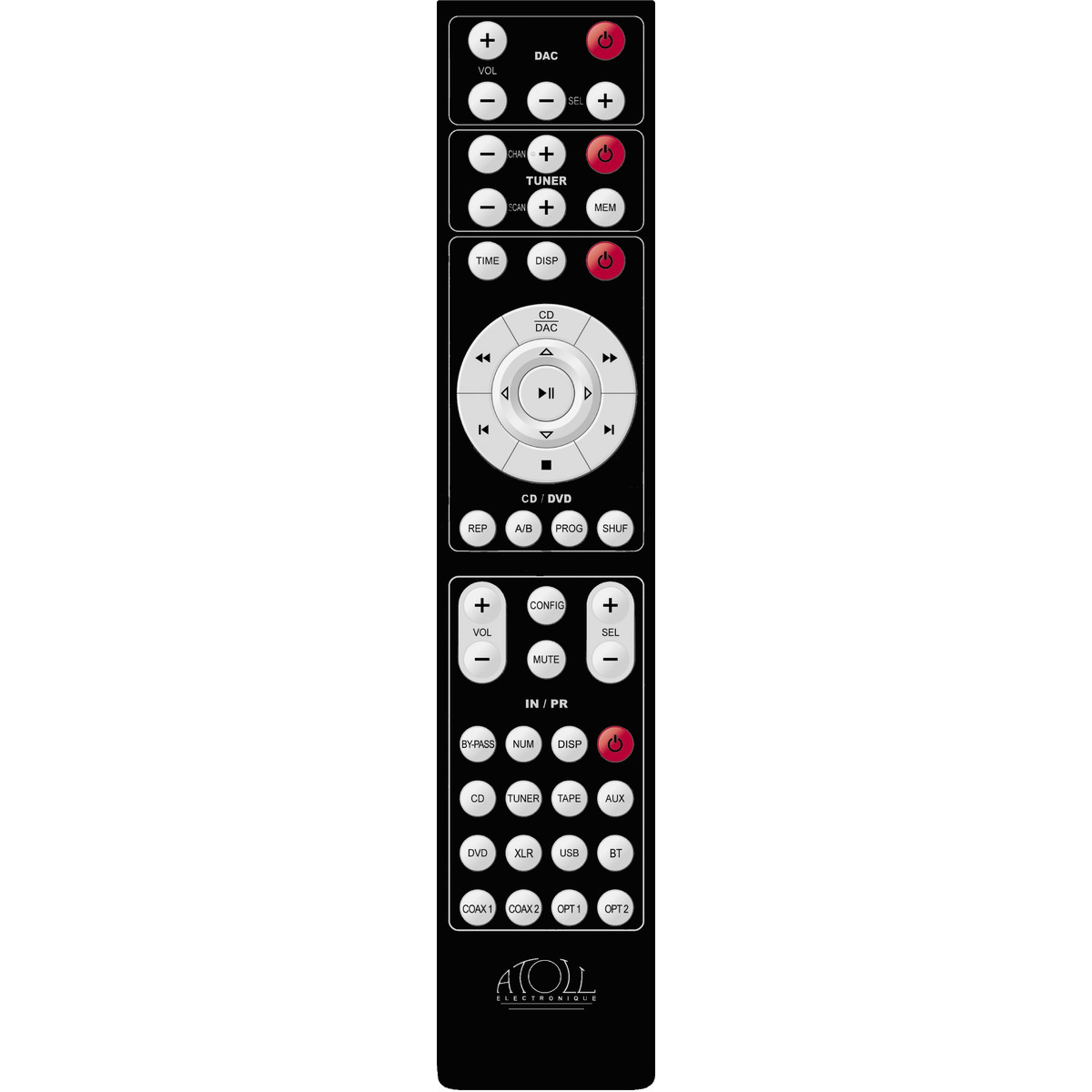

- Serial remote control
- CD text
- Low consumption OLED display

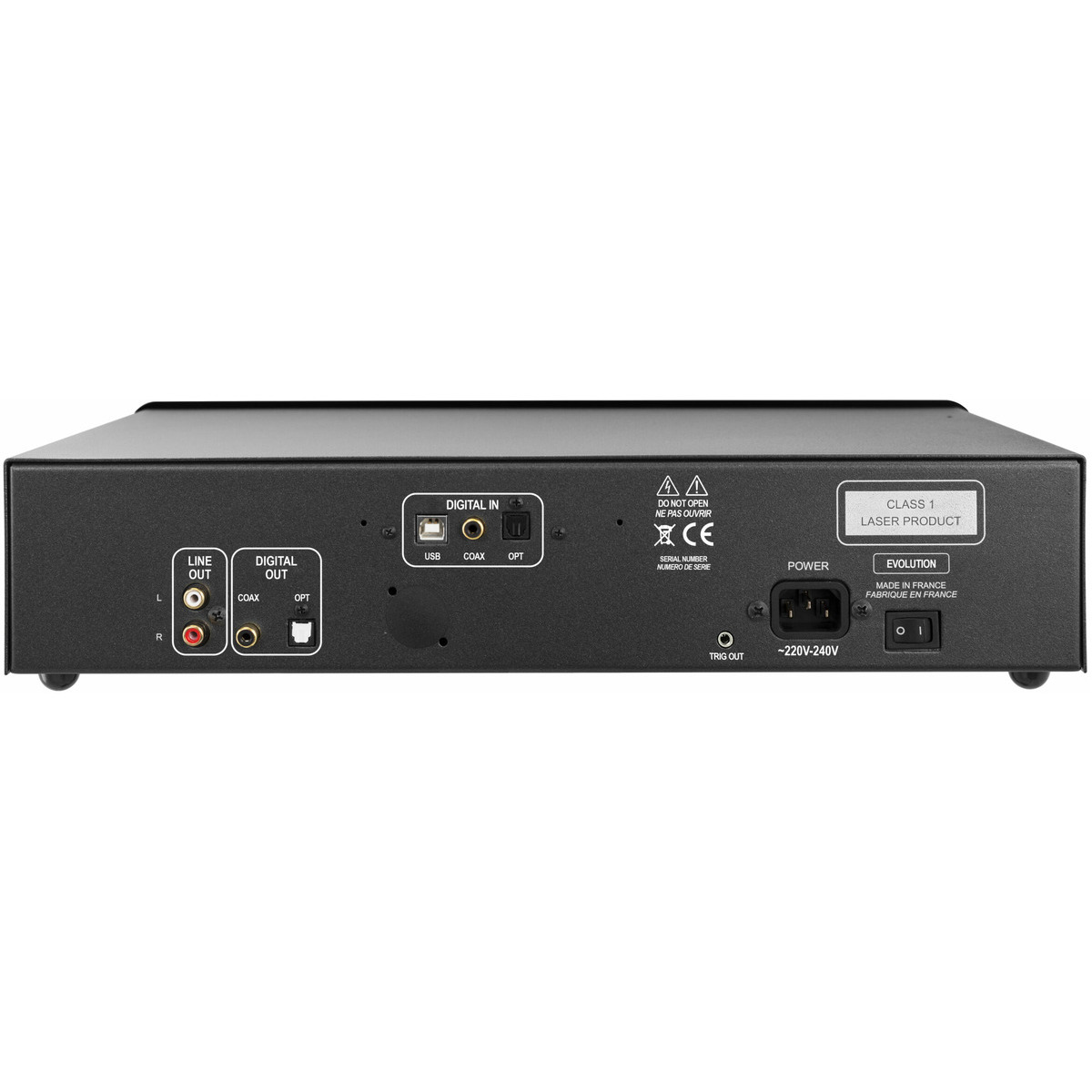

- 1 analog and 2 digital outputs (coaxial & optical)
Optional DAC Board
- The CD80 Signature can be equipped with an optional board including 3 digital inputs:
- 1 digital input Coaxial (24 bits/192kHz)
- 1 digital input Optical (24 bits/192kHz)
- 1 USB input:PCM from 16 bits to 24bits up to 192 kHz (asynchronous).
- USB : XMOS with specific program designed for ATOLL.
Specifications
- Power supply: 30+4,6+1,6 VA
- Total of capacitors: 21 400 μF
- Output level: 2,5 Vrms
- Consumption:
- - switch off 0 W
- - standby < 0,5 W
- - operating 9 to 16 W
- Digital output: Coaxial & Optical
- Digital input: 24 bits / 192 kHz
- USB input: 24 bits / 192 kHz
- Converter (D/A): PCM1791A
- Signal/Noise ratio: 113 dB
- Dynamic: 113 dB
- Distortion at 1 kHz: 0,0001 %
- Bandwidth: 5 Hz - 20 kHz
- Rise time: 2,0 μs
- Dimensions (mm): 440×280×95
- Weight: 6Kg
