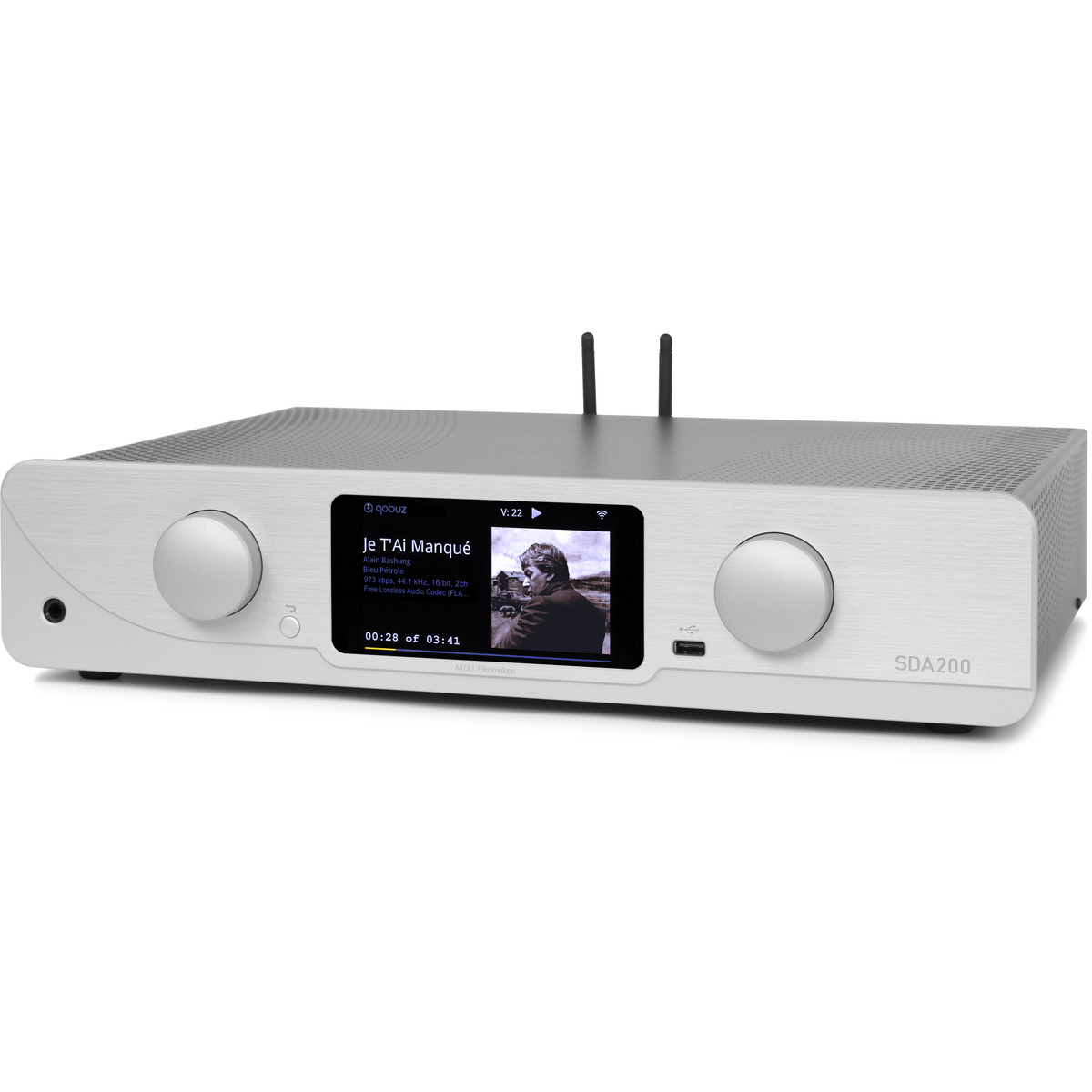

SDA200 Signature - Made in France
Integrated Amplifier
- Power Wrms/channel/8ohms: 120 W
- Power Wrms/channel/4ohms: 200 W
- Impulse Power: 200 W
- Power supply: 670VA
- Total of capacitors: 65 800µF
Streamer
- Reading all audio files in the network (compatible DLNA and UPnP) connected on Wifi or wired RJ45.
- Displays the name, tags, album cover, resolution.
- “gapless” system (uninterrupted playback of consecutive audio tracks).
- Possibility to create Playlists.
- External control (with Qobuz, Audirvana…) with RTSP protocole.
Compatibilty Roon
This product is certified Roon Ready.
Music Streaming
Direct access from the ATOLL app to streaming portals: Qobuz, Tidal, Deezer
Streaming Spotify Connect
Direct acces to Spotify with Spotify Connect
Streaming Tidal Connect
Direct access to Tidal with Tidal Connect
Internet Radio
- Access to all internet radios with Airable system in high quality:
- choices of more than 100 000 stations, podcasts…
- Displays logos stations and further information: titles, artists, resolution…
- Possibility to add radios to a « favorite » menu.
Audio
- Symmetrical outputs stages with no feedback and discrete components polarized in A class.
- Analog volume control (with commutated resistors) with possible By-Pass.
- Transformer specifically dedicated to audio stages.
- High Quality MKP link condensators.
- Burr-Brown PCM1792 converter.
End Users
- 5″ TFT led display (800*480).

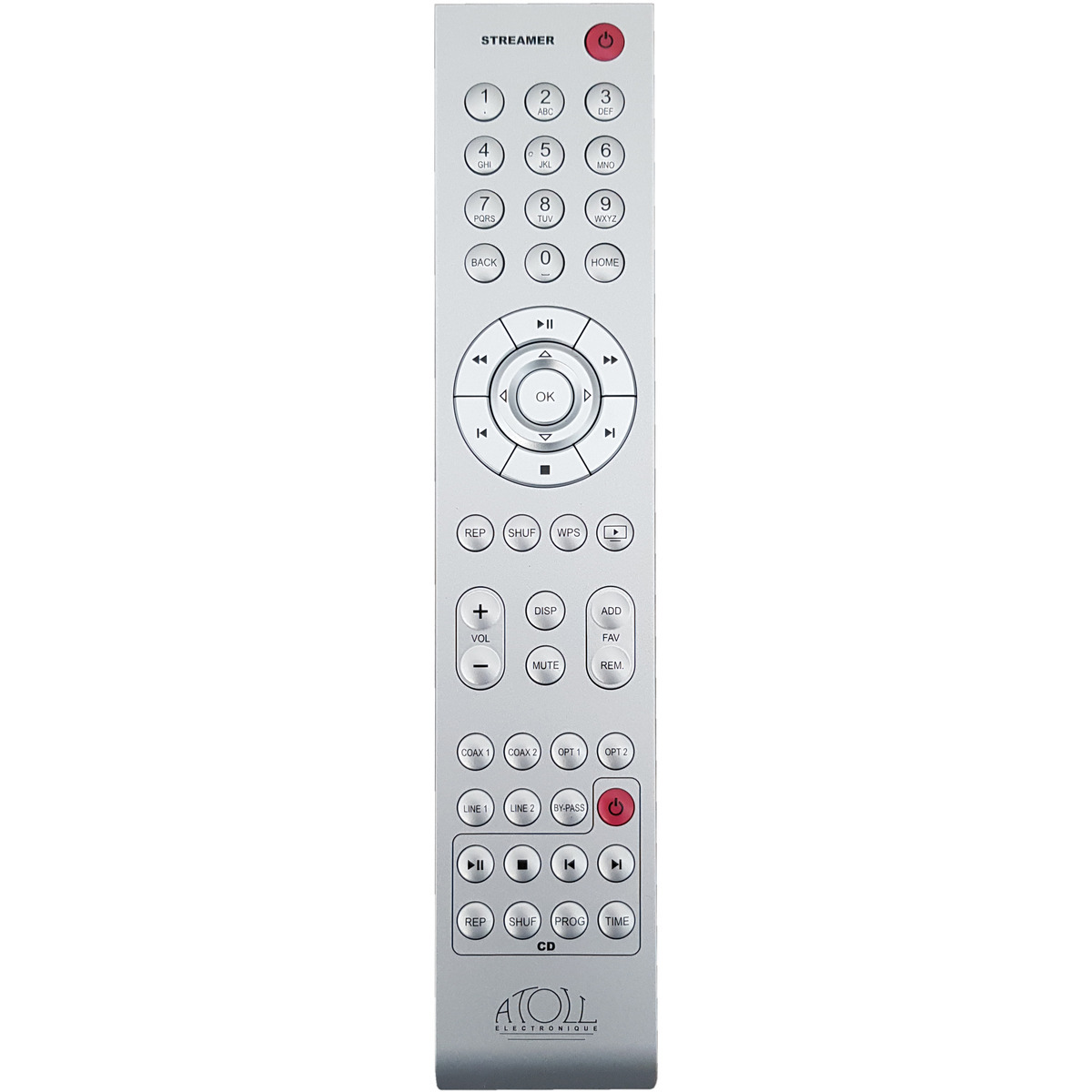

- Serial remote control.
- Apple® and Androïd® free app.
- Readable files: MQA, DSF, LPCM, FLAC, ALAC, AIFF, WMA, OGG, WAV, AAC, MP3.
- Acceptable Resolution: PCM up to 24bits/192kHz and DSD64 & 128.
- USB-A format: FAT32, NTFS, EXT2/3/4.

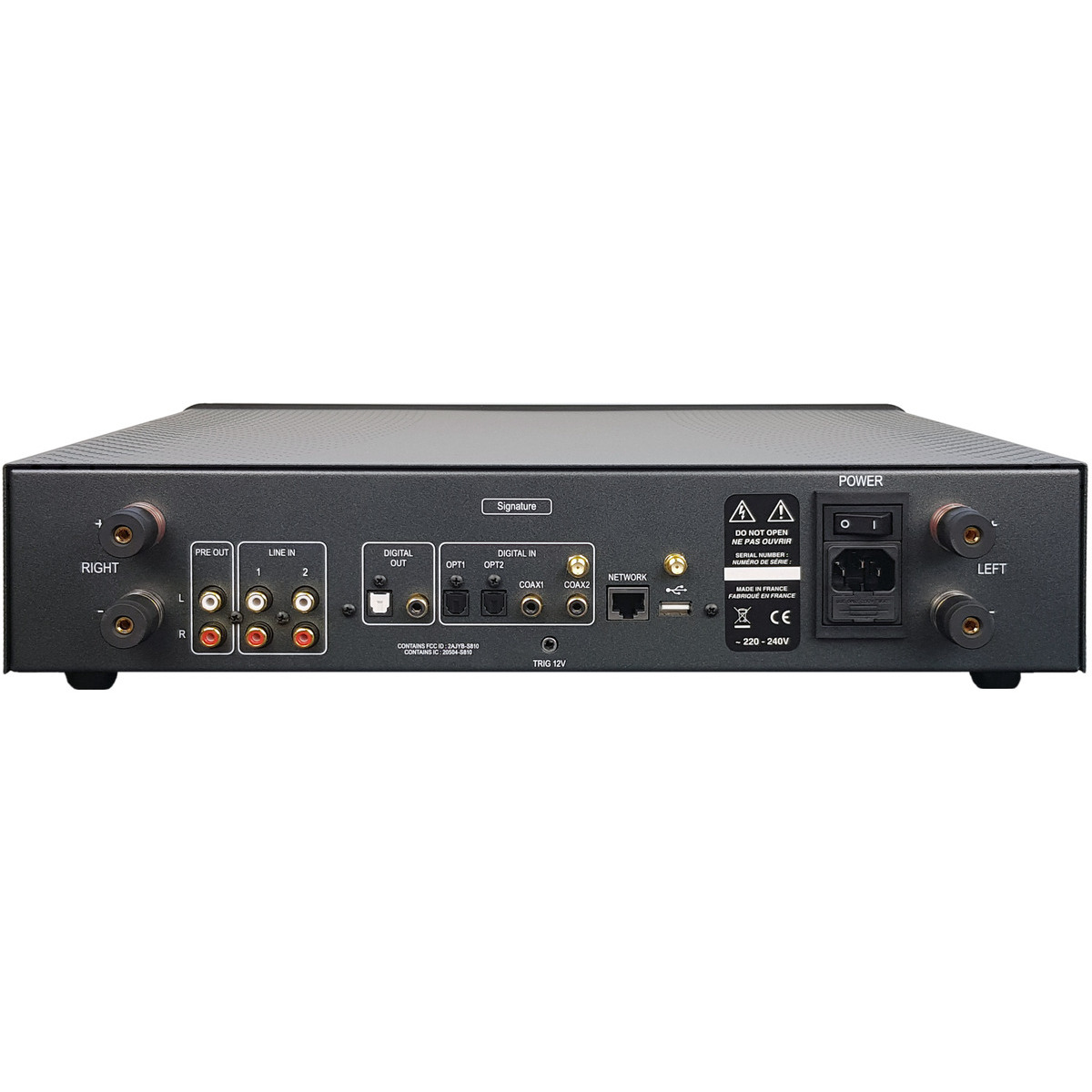

Pre-amp/Connections
- Inputs:
- 2 analog
- 2 S/PDIF coaxial (PCM 24bits/192kHz)
- 2 S/PDIF optical Toslink (PCM 24bits/192kHz)
- 2 USB-A (1 front and 1 rear)
- 1 RJ45 network
- 1 Bluetooth® receiver (antenna)
- Outputs:
- Speakers
- Pre-out
- 1 S/PDIF coaxial
- 1 S/PDIF optical Toslink
- 1 Wifi antenna (802.11b/g/n)
- 1 trigger 12V output
- 1 headphones output front (6,5mm)

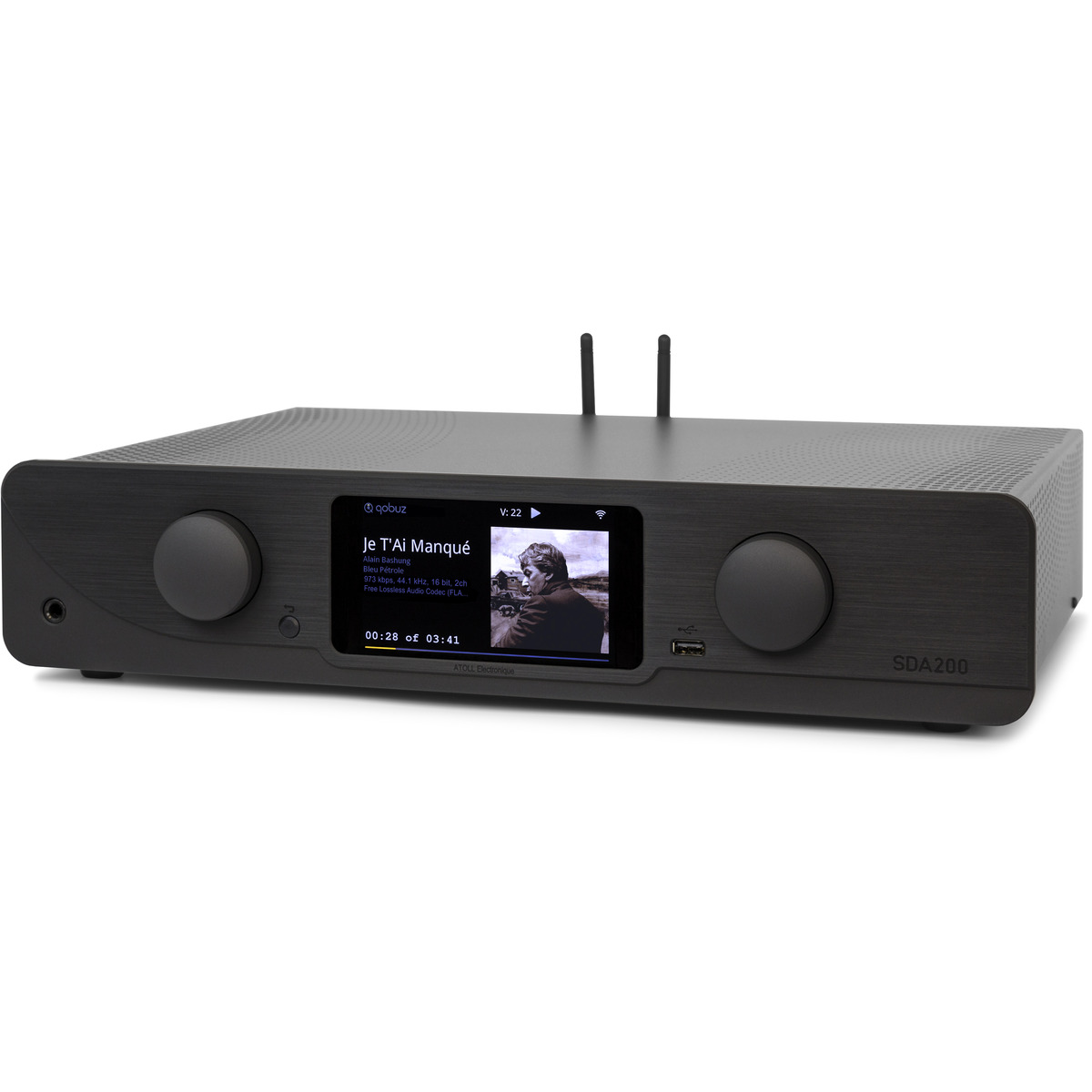

- Available in black or silver
Specifications
- Power Supply: 2×330 VA +10 VA
- Wrms/channel/8Ω: 2*120 W
- Wrms/channel/4Ω: 2*200 W
- Total of capacitors: 65 800uF
- Dynamic: 112 dB
- Input Impedance: 330 kOhm
- Distortion at 1kHz: 0,005%
- Bandwidth: 5Hz – 100kHz
- Rising Time: 2 µs
- Sensibility: 500 mV
- Signal/Noise Ratio: 100 dBA
- D/A converter: Burr-Brown PCM1792
- Dimensions: 440x320x90mm
- Weight: 11 Kg
