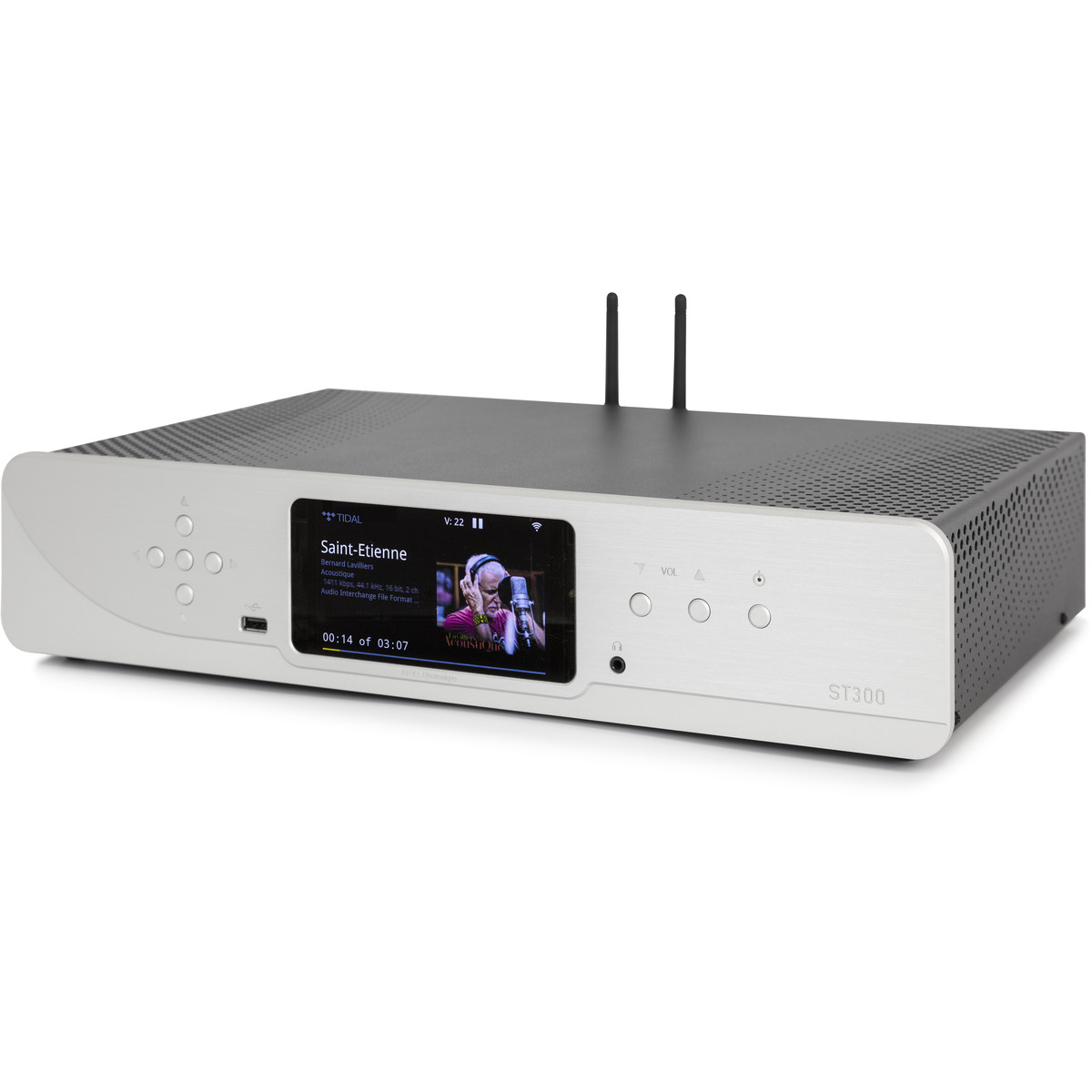

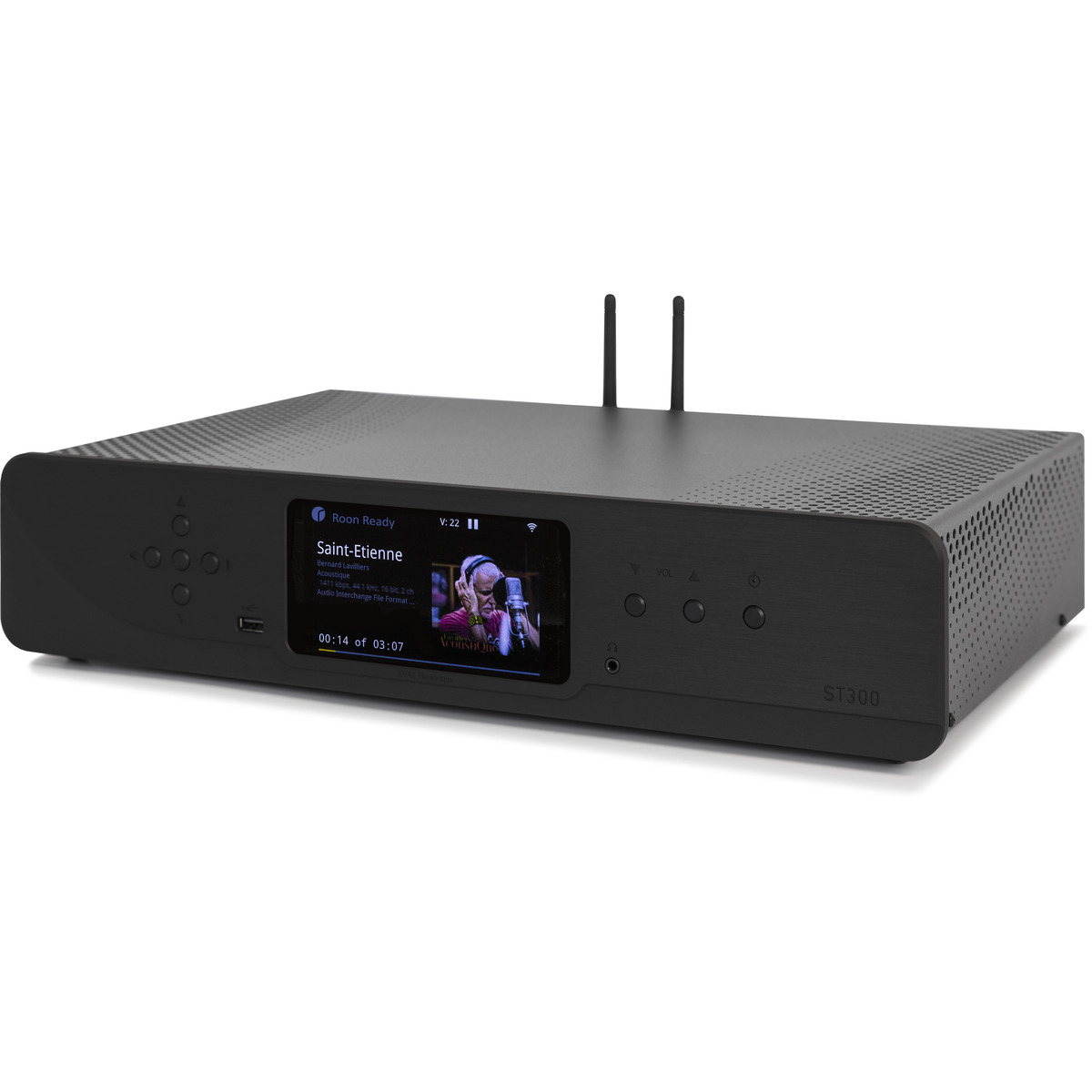

ST300 Signature - Made in France
Streamer
- Reading all audio files in the network (compatible DLNA and UPnP) connected on Wifi or wired RJ45.
- Displays the name, tags, album cover, resolution.
- “gapless” system (uninterrupted playback of consecutive audio tracks).
- Possibility to create Playlists.
- External control (with Qobuz, Audirvana…) with RTSP protocole.
Compatibility Roon
This product is certified Roon Ready.
Music Streaming
Direct access from the ATOLL app to streaming portals: Qobuz, Tidal, Deezer
Streaming Spotify Connect
Direct acces to Spotify with Spotify Connect
Streaming Tidal Connect
Direct access to Tidal with Tidal Connect
Internet Radio
- Access to all internet radios with Airable system in high quality:
- choices of more than 100 000 stations, podcasts…
- Displays logos stations and further information: titles, artists, resolution…
- Possibility to add radios to a « favorite » menu.
Audio
- Symmetrical outputs stages with no feedback and discrete components polarized in A class and pure balance XLR output stages
- Analog volume control components (one per channel) making a real complete double mono stage structure with possible By-Pass
- Transformer specifically dedicated to audio stages
- High Quality MKP link condensators.
- Double Burr-Brown PCM1792 converters (one for each channel)
End User
- 5″ TFT led display (800*480).
- Serial remote control.
- Apple® and Androïd® free app.
- Readable files: MQA, DSF, LPCM, FLAC, ALAC, AIFF, WMA, OGG, WAV, AAC, MP3.
- Acceptable Resolution: PCM up to 24bits/192kHz and DSD64 & 128.
- USB-A format: FAT32, NTFS, EXT2/3/4.

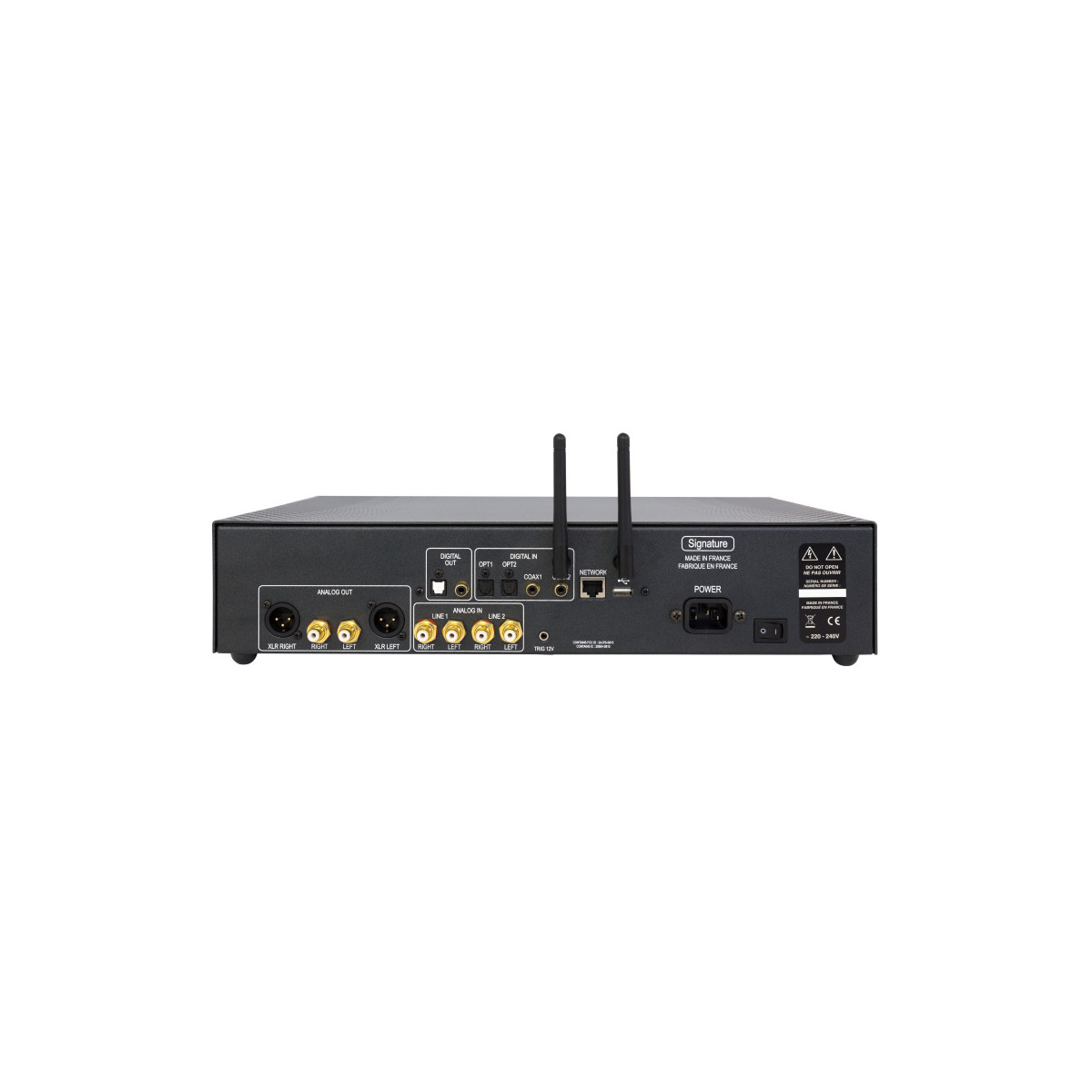

Pre-amp/Connections
- Audio Inputs:
- 2 analog Inputs
- Digital Inputs:
- 2 Coaxial, 2 Optical
- 1 Bluetooth® connection
- 2 USB-A Inputs
- audio Outputs:
- 1 analog Output
- 1 XLR Output
- 2 digital Outputs (1 Coax & 1 Optical)
- Network RJ45
- 1 Trigger Out 12 V
- 1 WIFI antenna
- 1 Bluetooth® antenna
- 1 headphones output front (3,5)
Specifications
- Power Supply: 30 + 10 + 10 VA
- Total of capacitors: 69 000 μF
- Dynamic: 132 dB
- Output Impedance: 5,6 Ω
- Output Level: 2,6 Vrms
- Signal/Noise Ratio: 132 dB
- Distortion at 1kHz: 0,0004 %
- Bandwidth: 5 Hz – 20 kHz
- Rising Time: 1,5 μs
- D/A Converter: 2×Burr-Brown 24 bits/192 kHz
- Dimensions: 440×255×90mm
- Weight: 7,0 Kg
