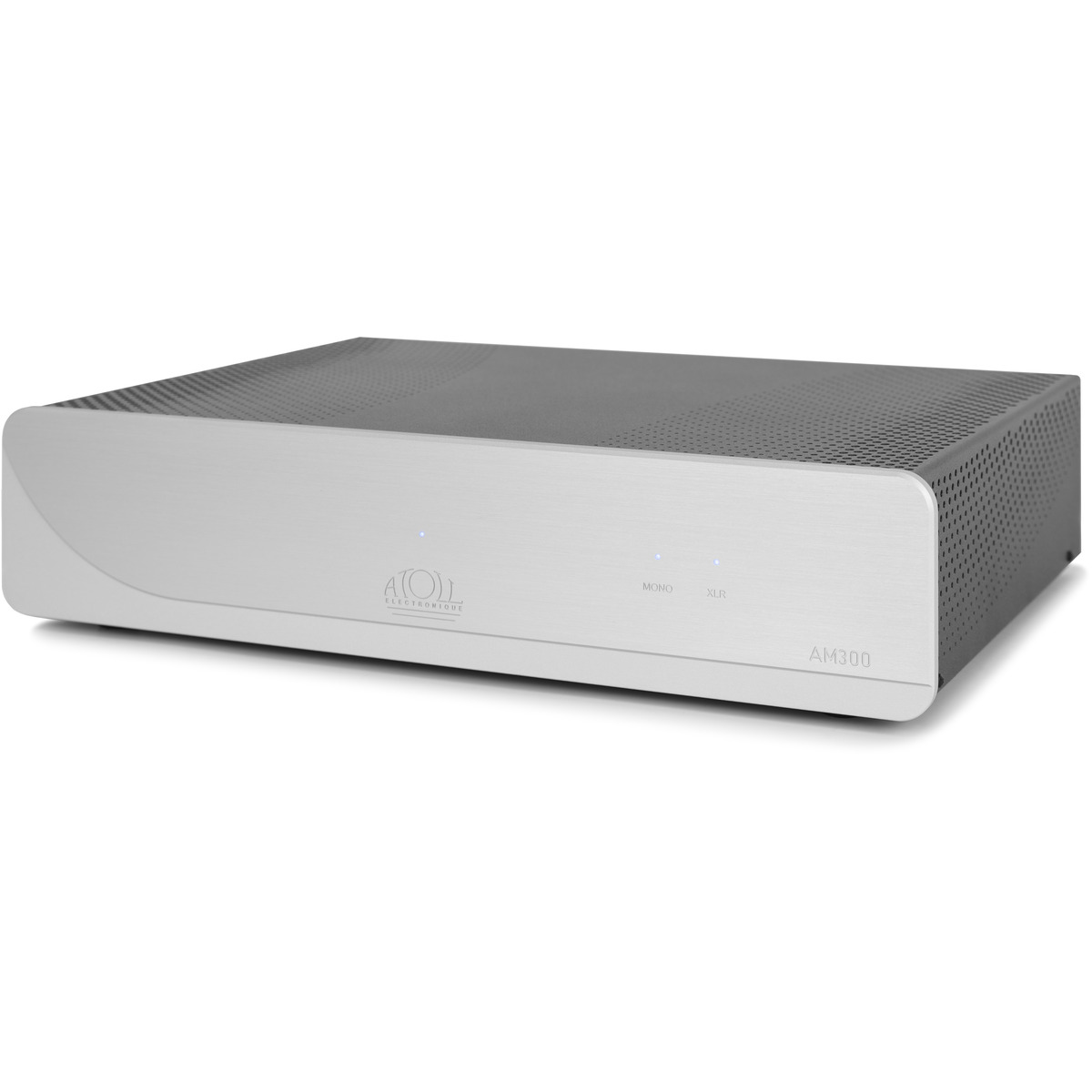

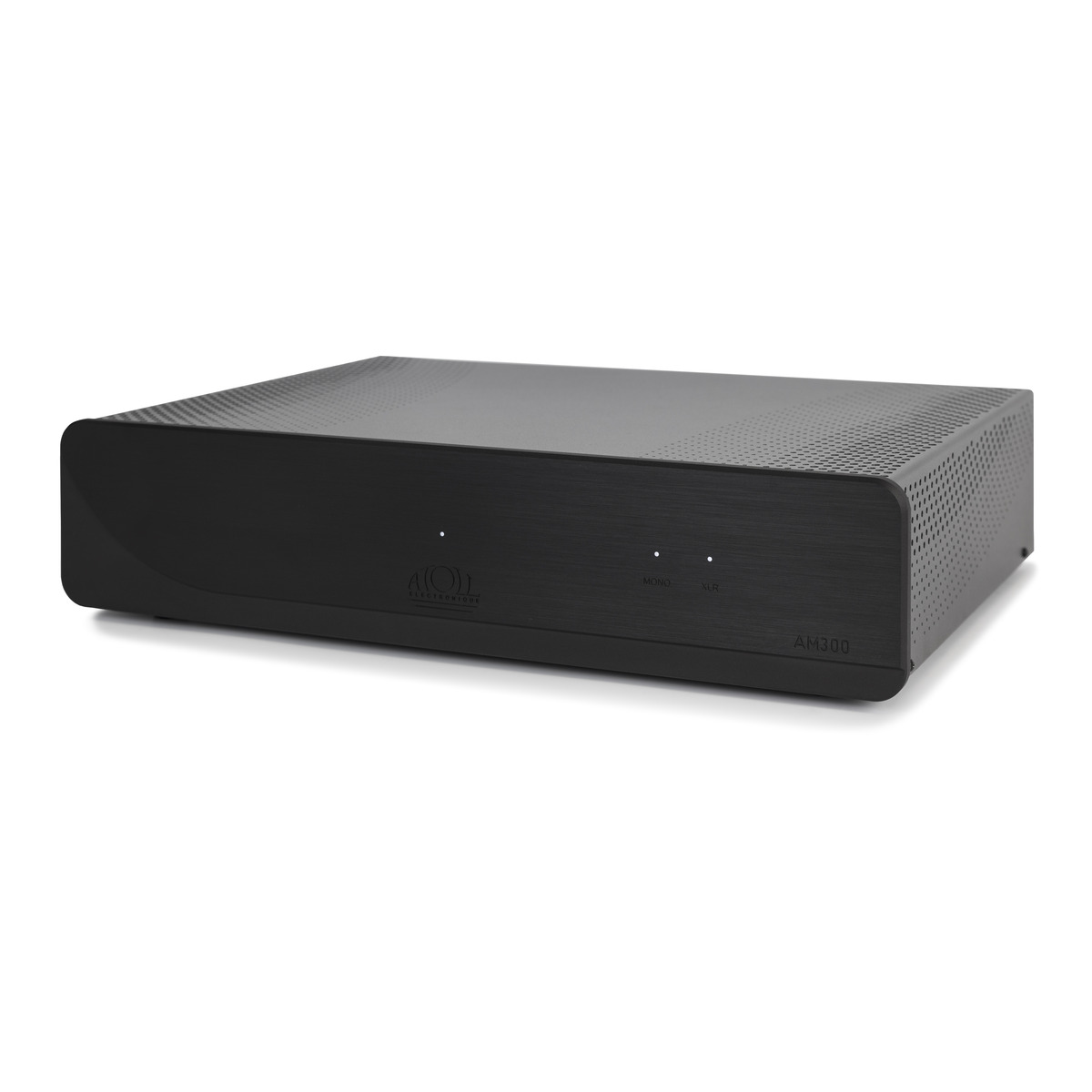

AM300 - Made in France
Overview
- 6 MOS-FET transistors per channel 2 × 150W rms / 8Ω Balanced XLR input
- 2x440 VA Power supply
- Double mono integral structure
- Symmetrical stages with discrete components polarized in Class A/B
- Audio stages stabilized in current by a proprietary system

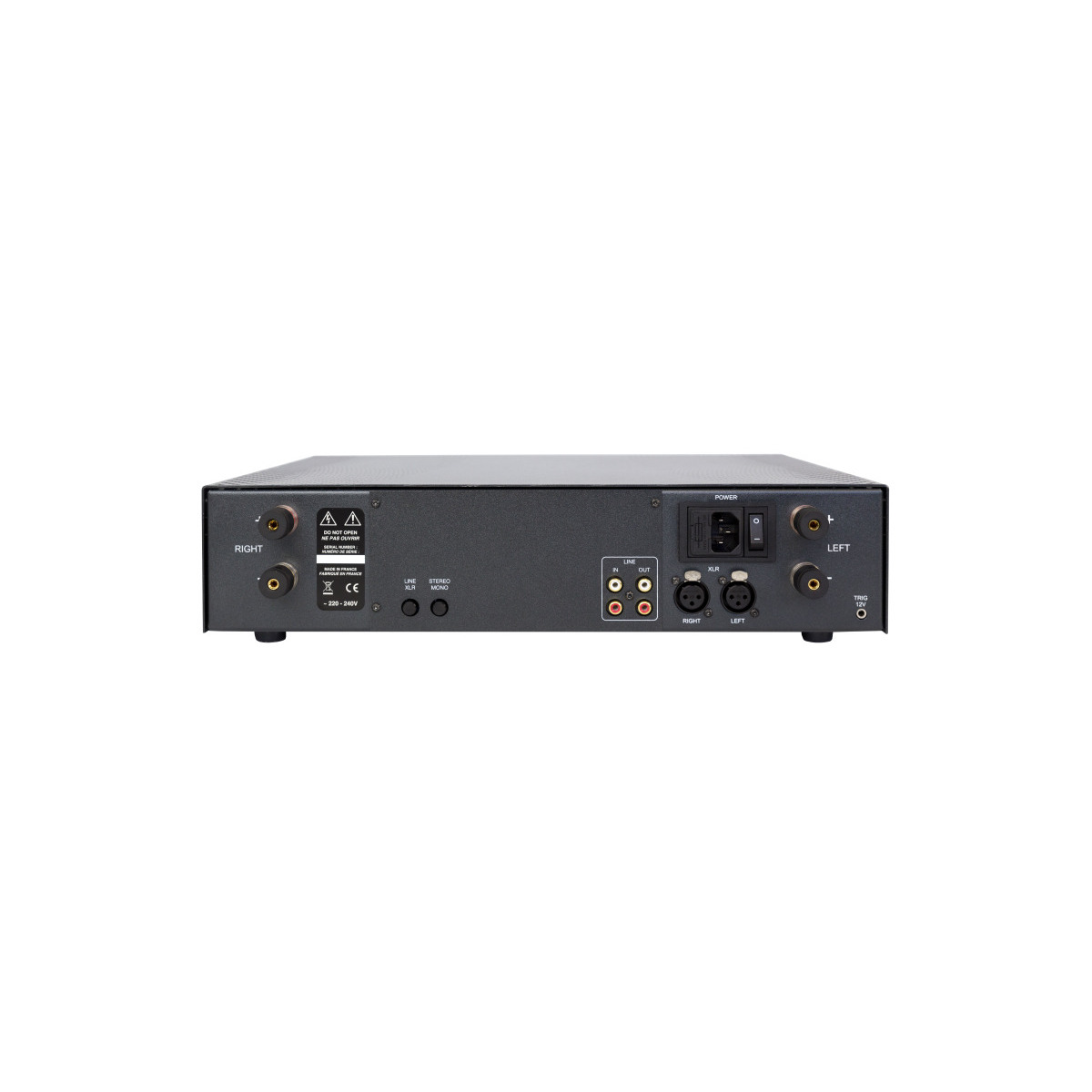

Connections
- Audio inputs:
- 1 stereo Line input
- 1 stereo XLR input
- Audio outputs:
- 1 stereo Line output
- 1 stereo speaker output
- 1 12 V Trigger input
- 1 bridged-mono switch
- 1 Line/XLR selector
Specifications
- Power Wrms/ch./8 Ω: 150 W
- Power Wrms/ch./4 Ω: 280 W
- Power in bridged mono/8 Ω mode: 500 W
- Power Supply: 880 VA
- Total of capacitors: 83 300 μF
- Intput Impedance: 220 kΩ
- Sensitivity: 1,7 V
- Signal/Noise Ratio: 100 dB
- Distorsion at 1 kHz: 0,005%
- Bandwidth: 5 Hz - 200 kHz
- Rising time: 1,5 μs
- Dimensions : 440×360×103mm
- Weight: 16 Kg
