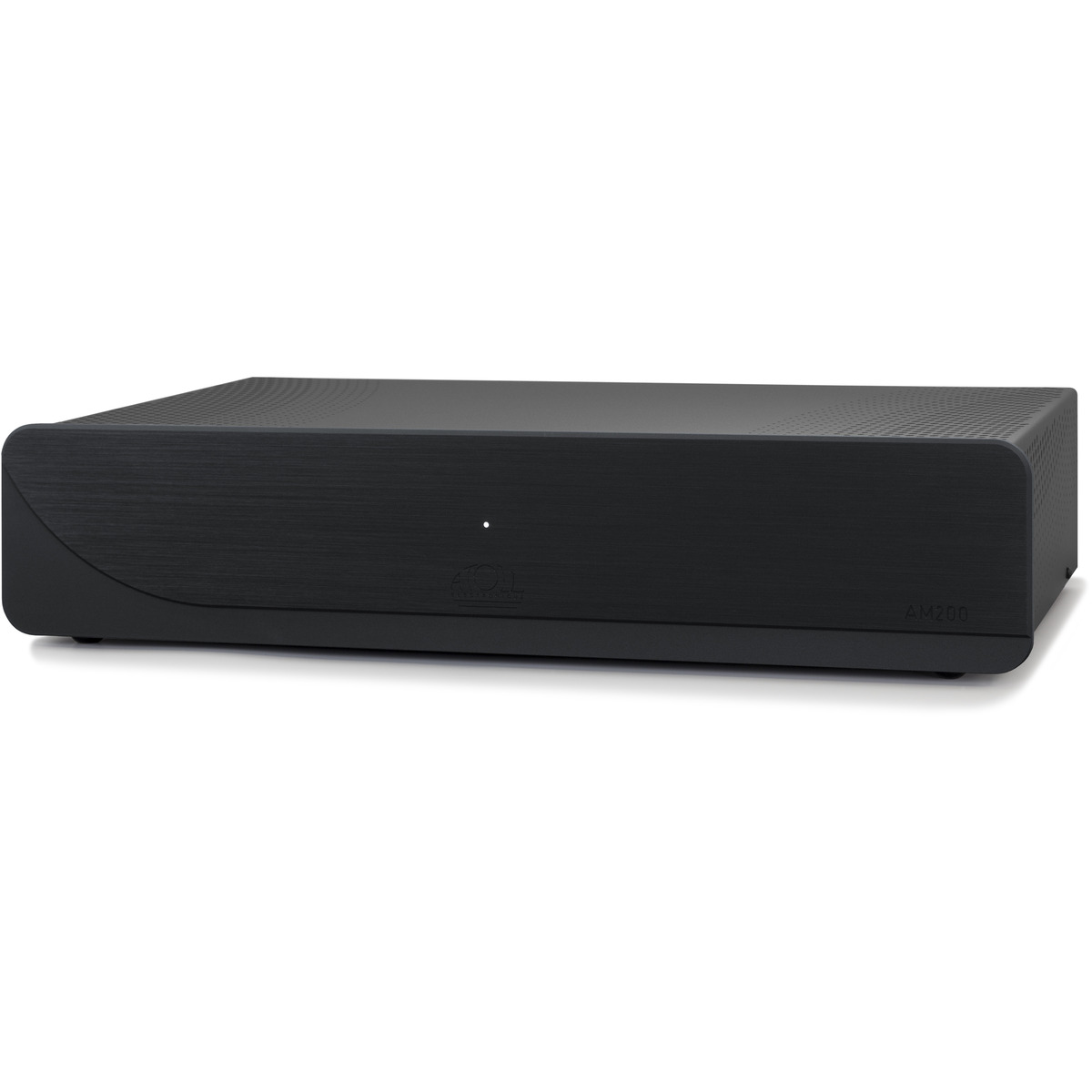

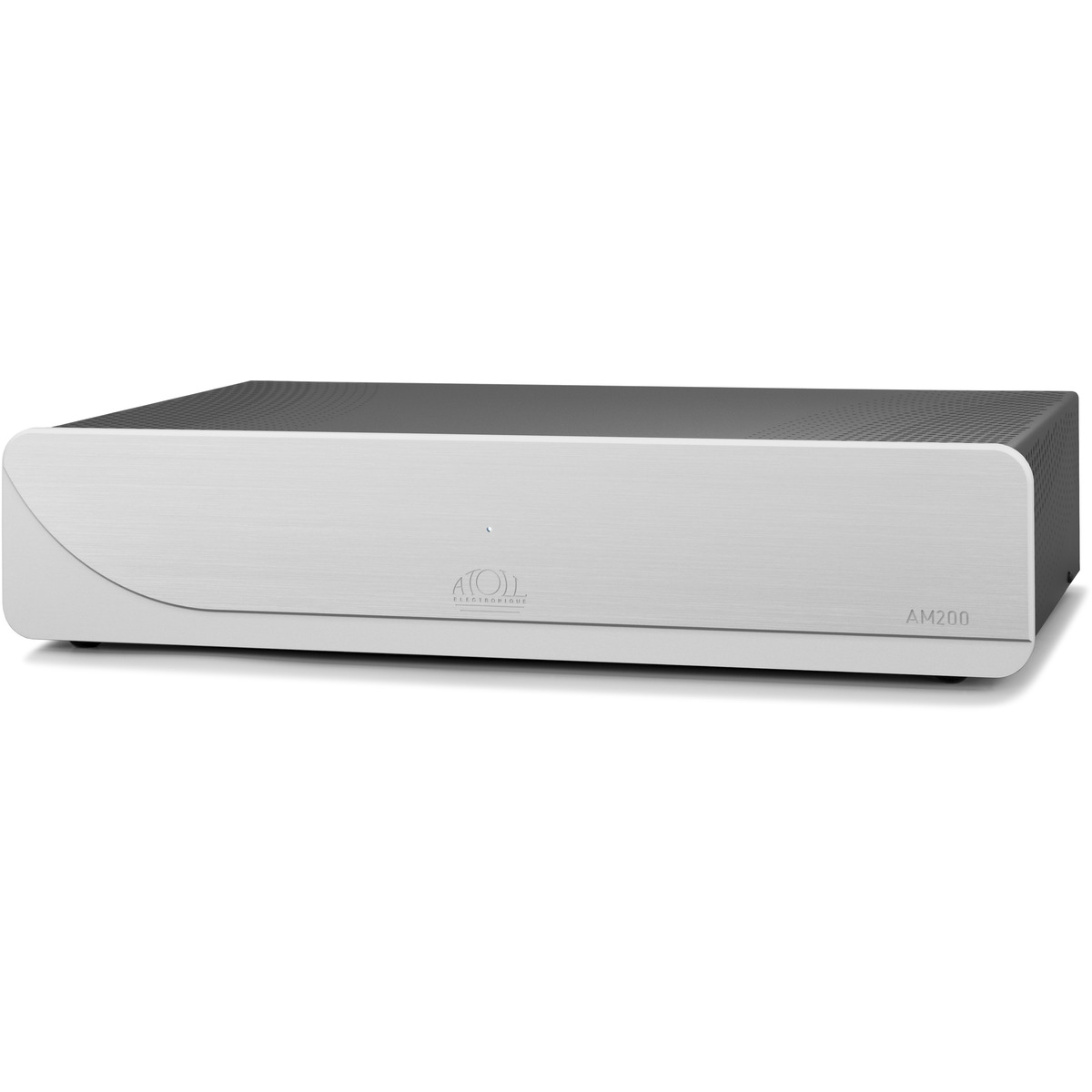

AM200 Signature - Made in France
Overview
- Aluminium front panel of 8 mm and complete steel chassis of 1,5 mm;
- Fully symmetrical stages with discrete components;
- Double pair of MOS-FET transistors per channel on outputs;
- 2 Torroïdal transformers, double-mono configuration;
- Possibility of mono bridge (internal);

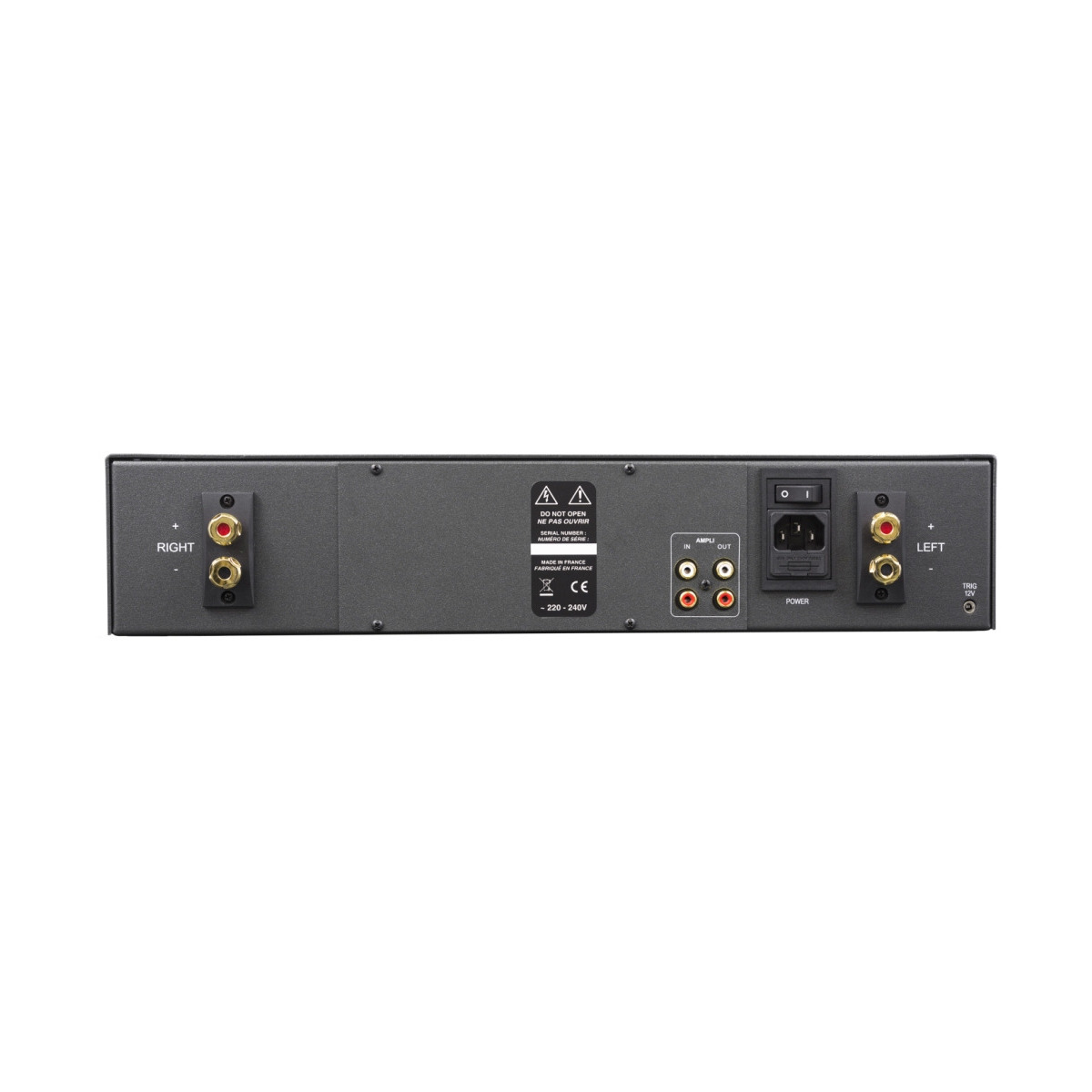

Connections
- Double stereo Inputs (RCA) ;
- 1 pair of loudspeakers outputs ;
- 12V trigger Input
Specifications
- Power Wrms / ch. / 8 ohms (230v) 120 W
- Power Wrms / ch. / 4 ohms (230v) 200 W
- Supply 670 VA
- Total of capacitors 62 000 µF
- Input Impedance 220 Kohms
- Sensitivity 1,77 V
- Rate Signal/Noise 100 dB
- Distortion at 1kHz 0,005%
- Frequency Response 5Hz-200kHz
- Rise Time 1,3µs
- Dimensions 440*90*300mm
- Weight 11 Kg
