AM100 Signature - Made in France
Overview
The power amplifier AM100 Signature can be added to any stereo or multichannel solutions. Coupled with a preamplifer, they make for transparent and detailed listening. The various sound planes are rigorously respected. Built to be evolutionary, they can be used by themselves or in bi-amplification.
Further, all models are mono-block bridgeable by a single switch on the main board.
It is equipped on serial of a 12V Trigger (auto switch on/off with a preamp).

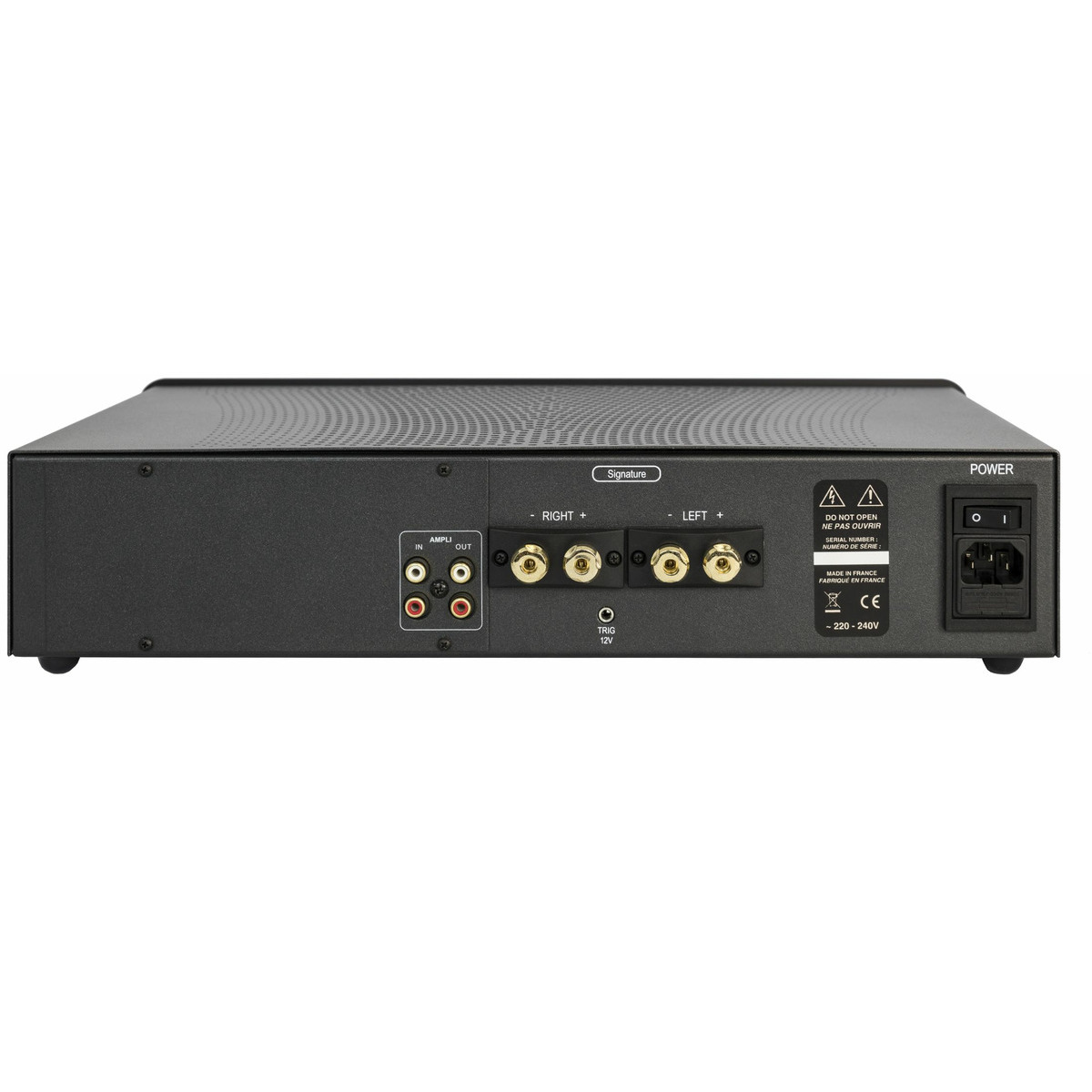

Connections
- 1 RCA Intput
- 1 RCA Output (allows to link a second amplifier or a subwoofer)
- 1 Trigger 12V input
- Gold plate terminal for Speakers
Specifications
- Efficacy power 100W /ch /8 ohms 140W /ch /4 ohms
- Impulsion power 180W /channel
- Efficacy power (Bridge mode) 300W/8 ohms
- Power supply 680 VA
- Total of capacitors 32 447 µF
- Number of Input 1
- Input impedance 47 kΏ
- Sensitivity 1,77 V
- Signal/Noise 100 dBA
- Distortion at 1kHz < 0,05%/30W
- Frequency response 5Hz-200kHz
- Rise Time 1,3 ms
- Dimensions 440x90x295 mm
- Weight 10 kg
