IN300 - Made in France
Digital Board
- converter: AK4490: S/N: 120 dB dynamic 120dB.
- DSD: 2.8MHz and 5,6MHz.
- PCM from 16 bits to 32bits up to 384 kHz on USB (asynchronous).
- Up to 24Bits 192kHz on optical and coaxial.
- USB converter XMOS: XUF208 with specific program for PCM and DSD specially developed for ATOLL.
Link Capacitors
- Analog stages: Mundorf MKP in a armored shell.
- Digital stages: Vishay MKP high sound quality.
Power Stages
- Double mono with 2x440VA toroidal transformers.
- Specific low consumption supply (5VA) for display and logic circuits.
- Capacitors: 12x6800uF low ESR high quality designed specifically for ATOLL.
- Soft starter stage to avoid current peek.
- Internal Supply High End cable (wired according to AC recommendation).
Input Stages
- 2 volume attenuators: 1 per channel.
- High quality Silver Mica capacitors for soft low pass filter (very fast reaction on pulse).
- Symmetrical bipolar stages (discrete components).
Output Stages
- 6 MOS FET per channel: 150Wrms/8Ohm, 260Wrms/4Ohm.
- Very low feed global back stages that brings dynamic and natural sound.
- Very low distortion due to a specific control stage of the driver transistors.
Connectivity
- High quality tellurium copper speakers terminals (ATOLL exclusive design).
- High End Speaker cable link.
- Gold plated RCA inputs.

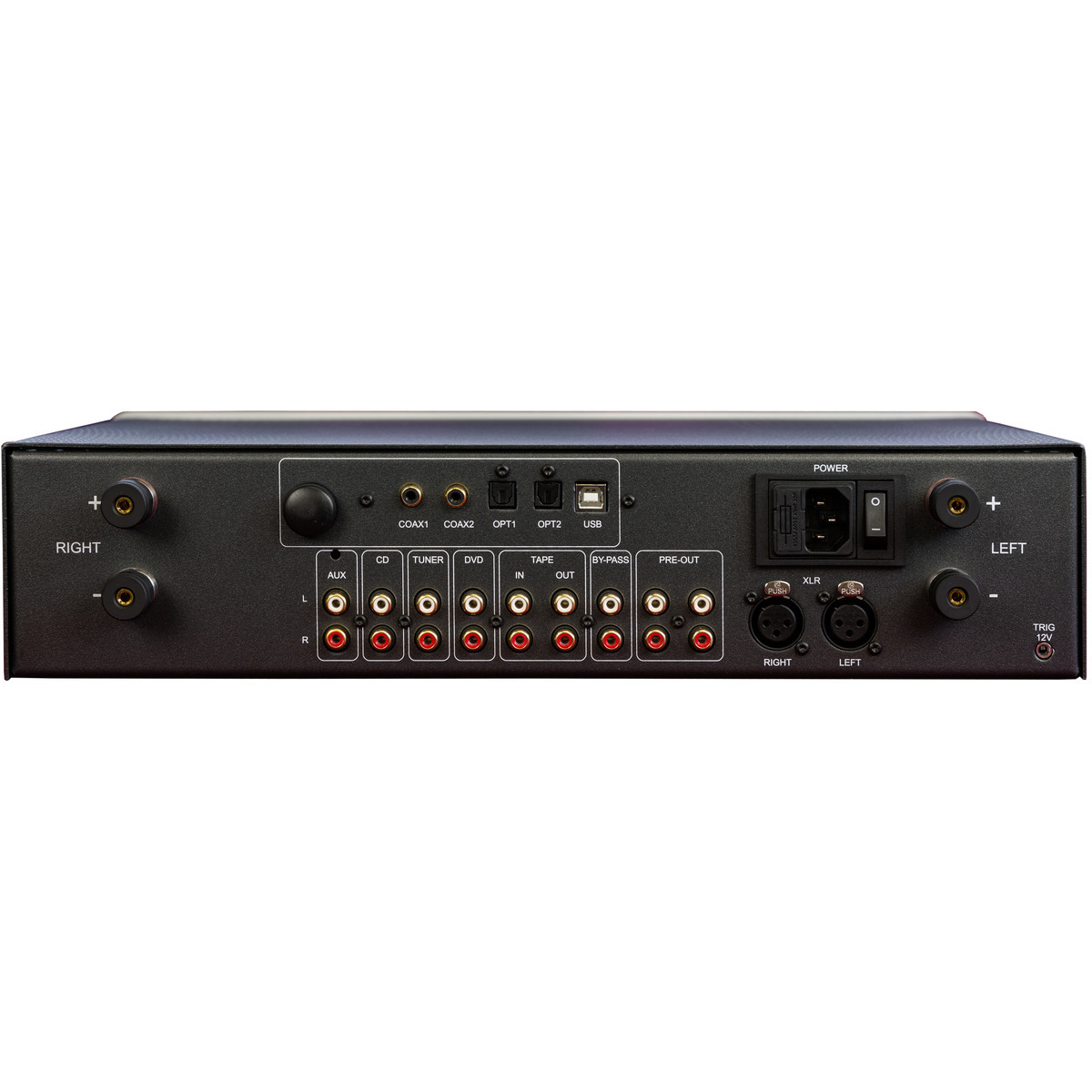

Inputs
- Analog:
- 5 Inputs (with AUX for optional phono stage)
- 1 BY-PASS Input
- 1 XLR Input
- Digital:
- 2 Coaxial Inputs
- 2 Optical Inputs
- 1 Bluetooth receiver
- 1 USB-B asynchronous Input
Outputs
- 1 pair of speakers OUT
- 2 Pre-out (for sub or additional power amp.)
- 1 Trigger Output
- 1 Headphones jack 6.35mm
Features
- Balance setup

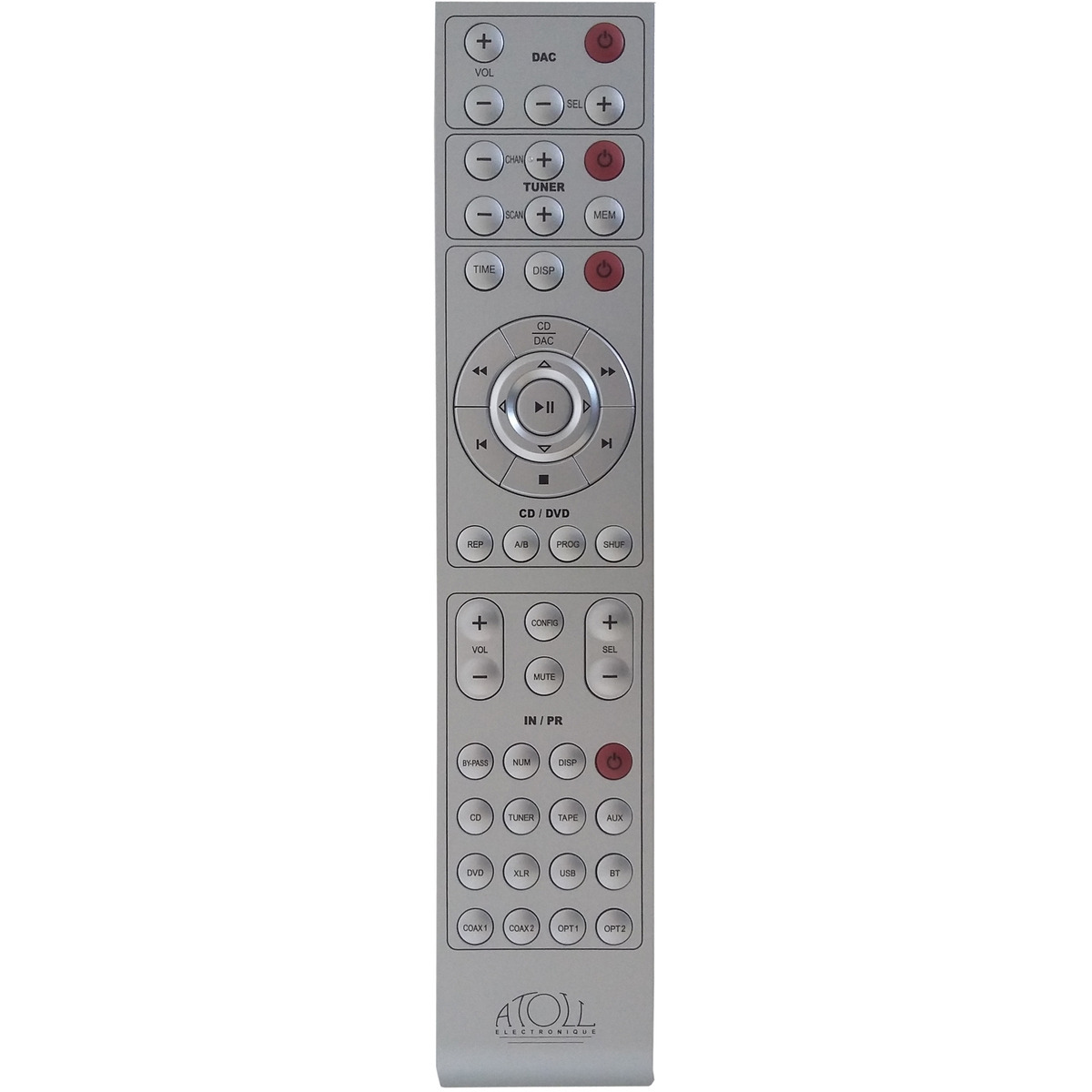

- Global Remote control
- Low noise and consumption OLED display

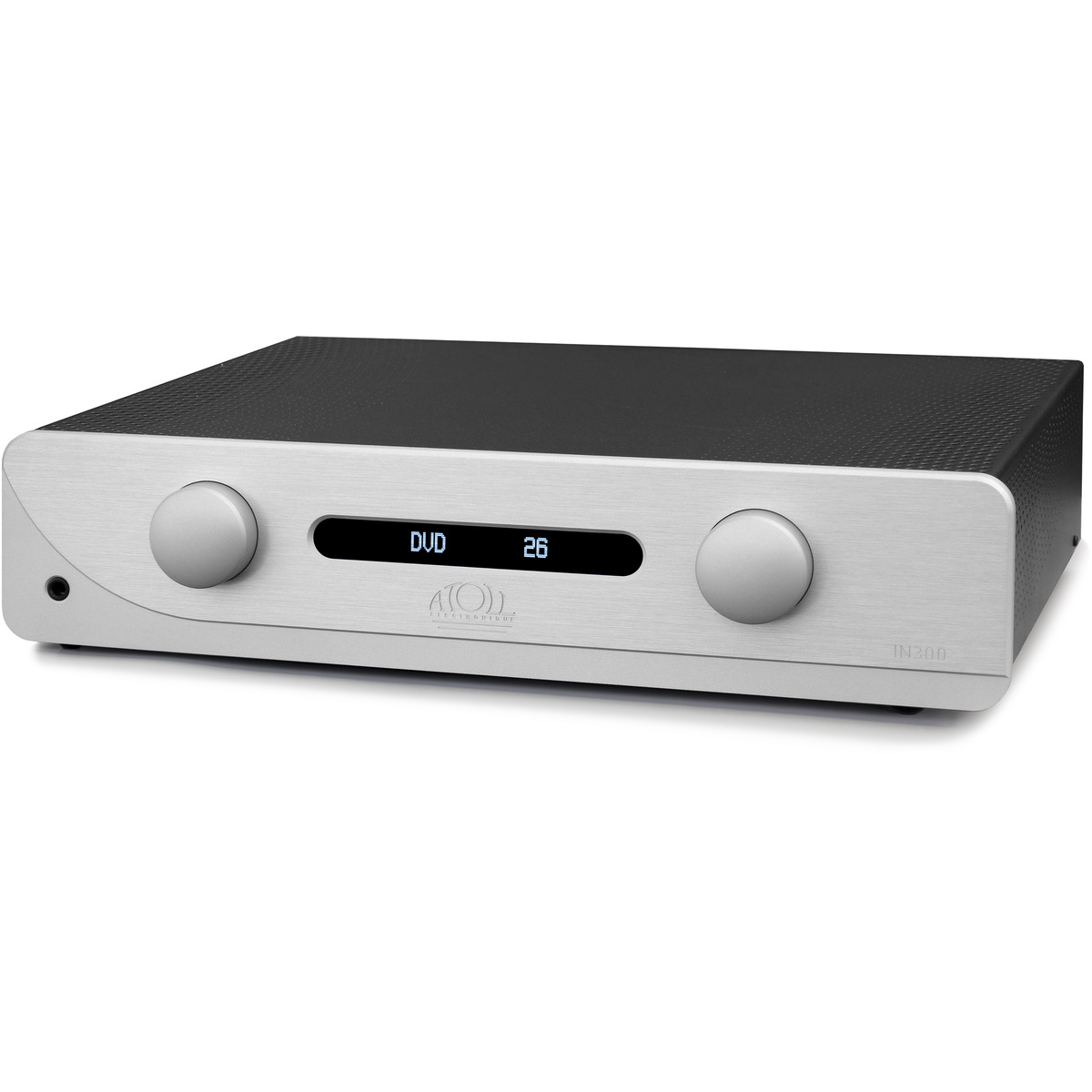

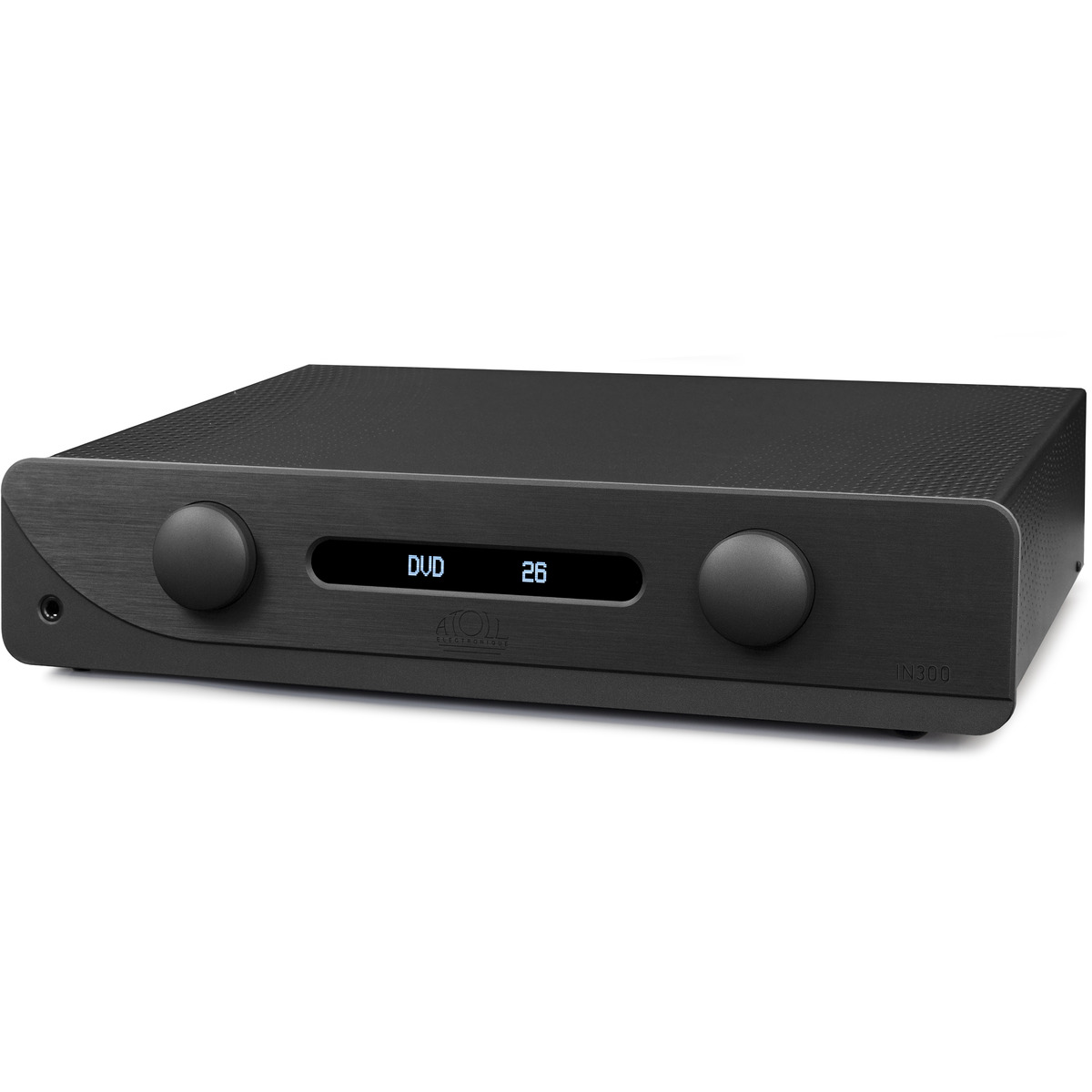

- Black or silver front panel
Specifications
- Power Wrms/channel:150 Wrms/8Ω 260 Wrms/4Ω
- Power Supply: 880 VA
- Power Supply: 880 VA
- Total of capacitors: 86400 µF
- Input impedance: 220 kΩ
- Dimensions: 440x320x100 mm
- Weight: 15 Kg
