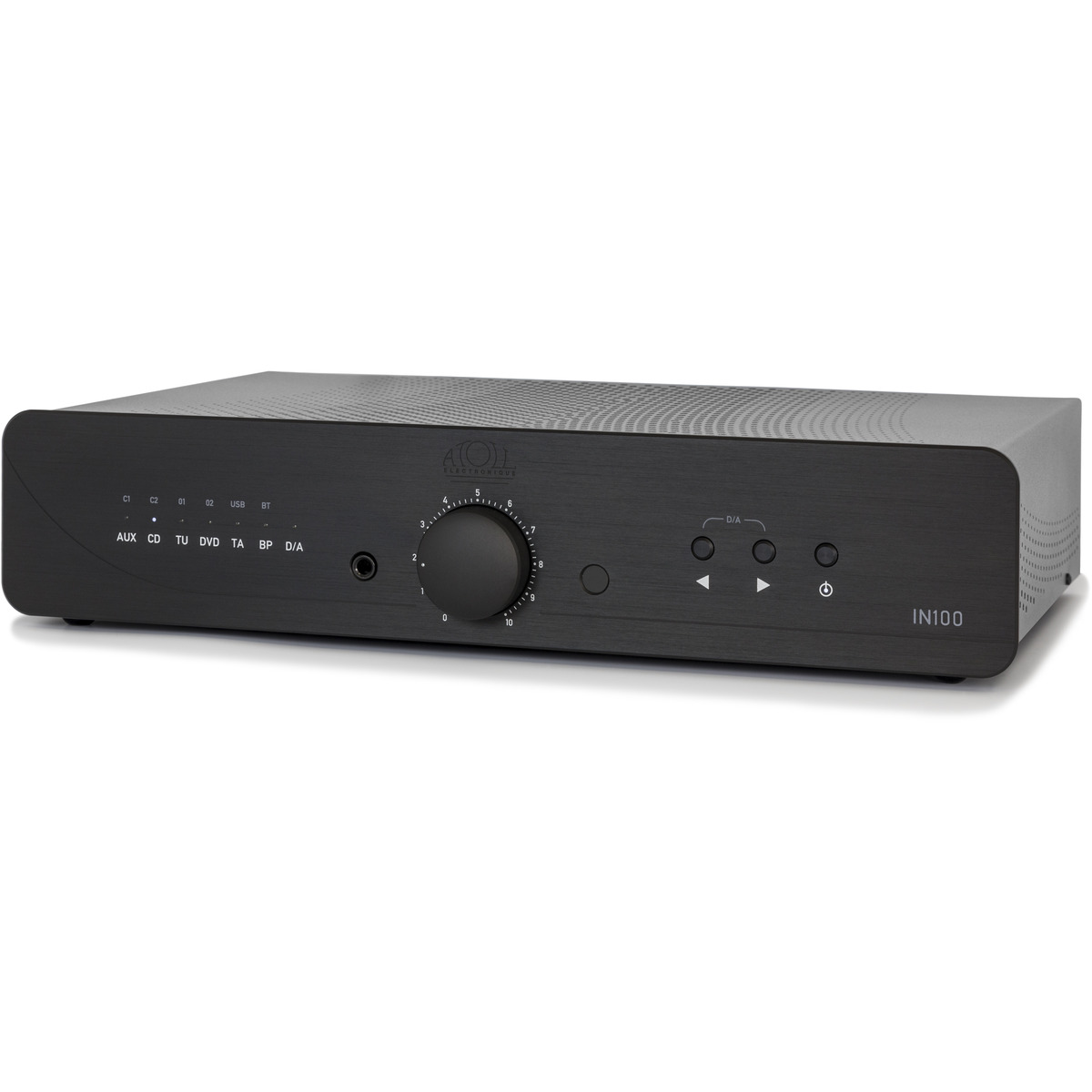

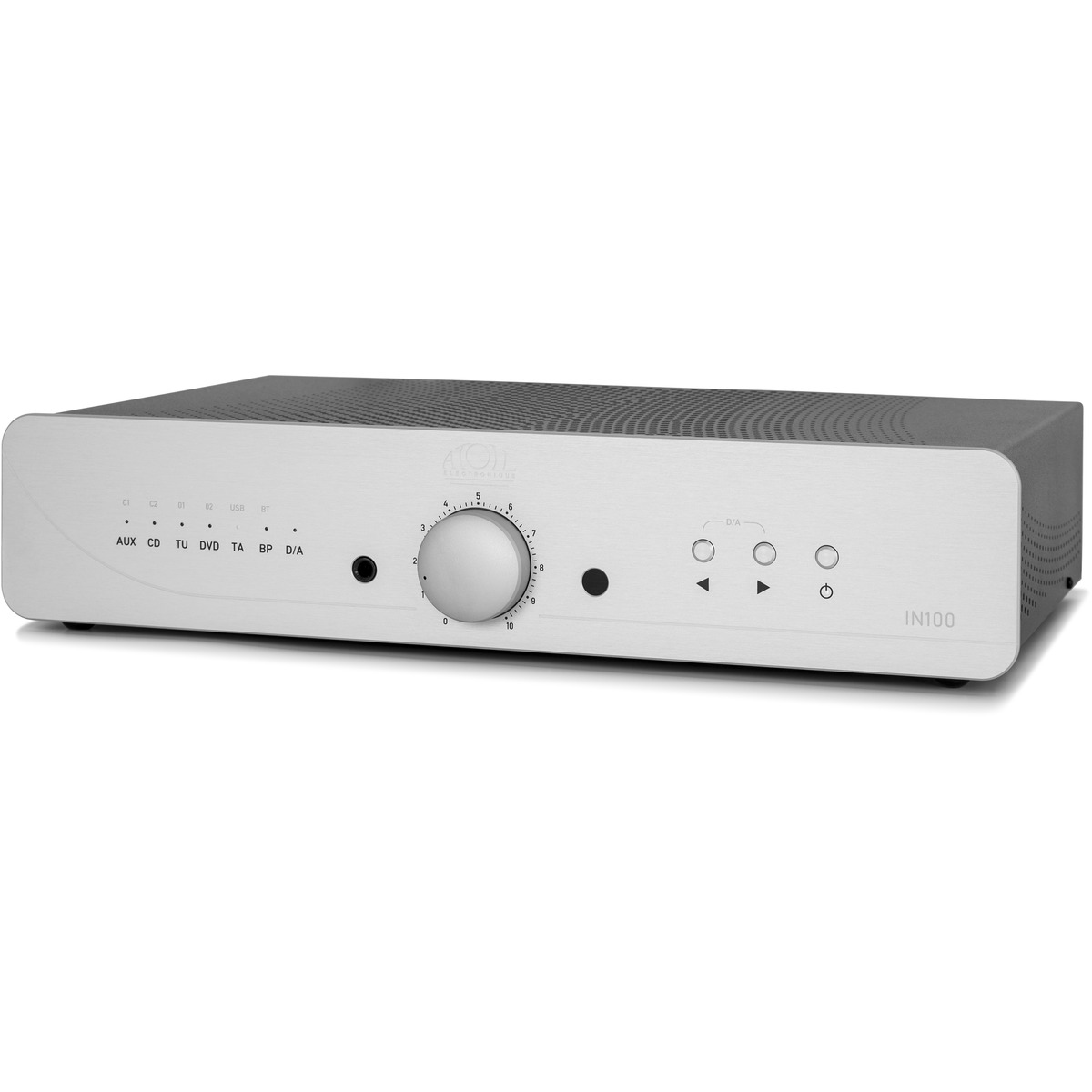

Atoll Electronique IN100 Signature

IN100 Signature - Made in France

Features

• Amplifier/preamplifier Integrated 2x100Wrms/channel/8Ω
• 4mm aluminium brushed front panel with graved logo and “Wave”, 1,5mm steel chassis, aluminium knob and keys
• Audio stages with discrete components, MKP technology link capacitors, high performances heatsinks
• PCB with double layer nickel/gold, thermal protection
• Double Toroidal Transformer of 340 VA
• ALPS motorised potentiometer

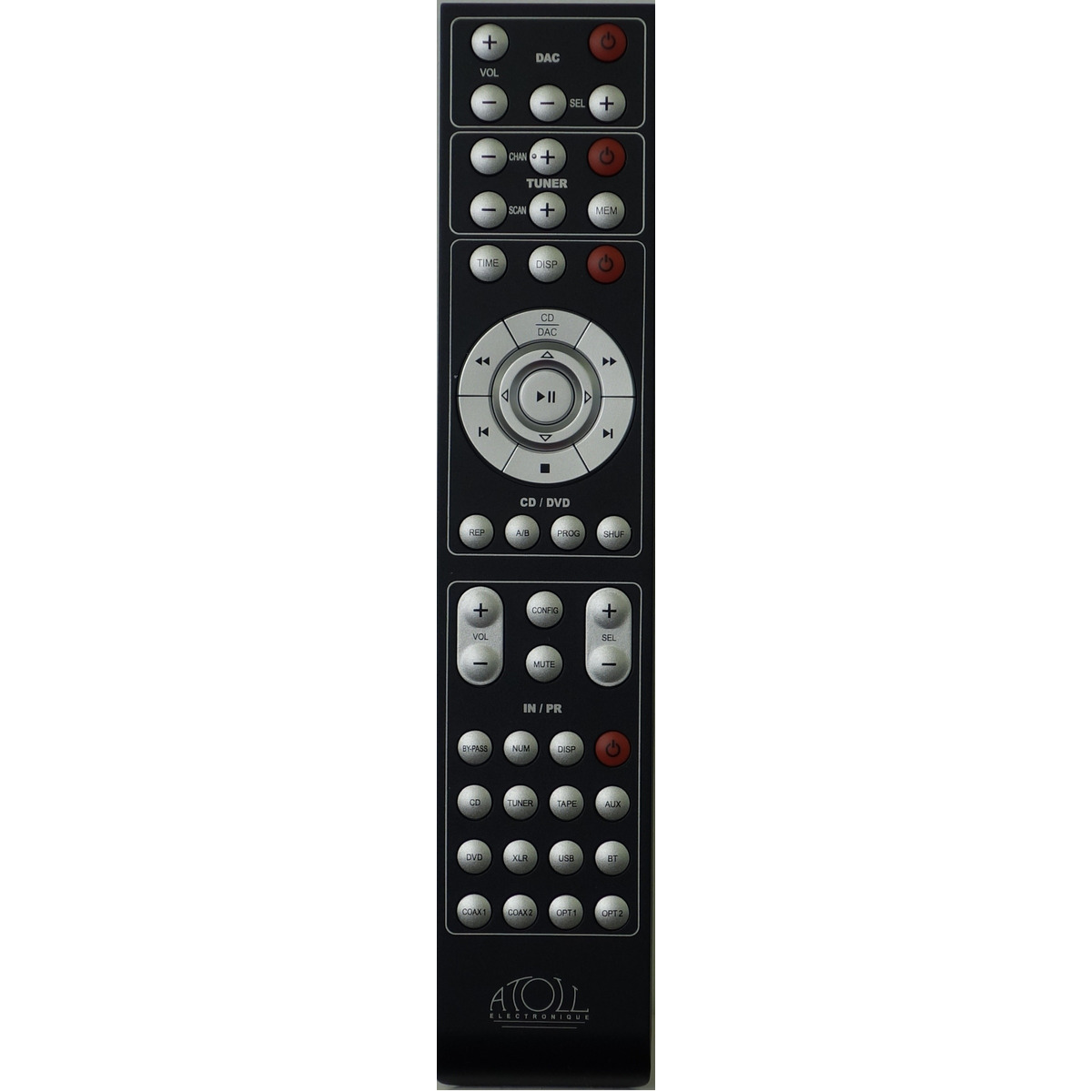

• Direct acces of inputs from the front panel or the remote control

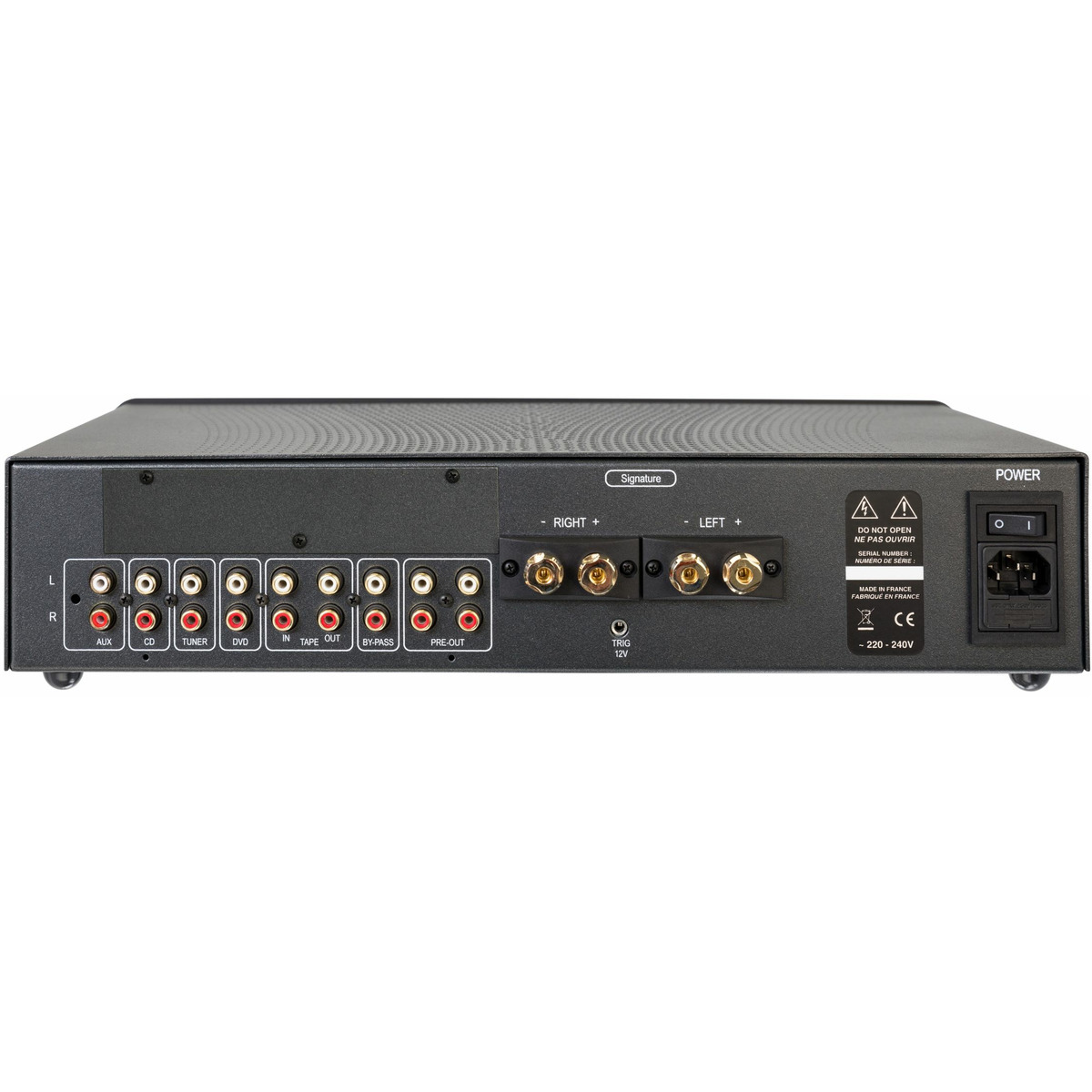

Connections

• 5 audio Inputs (RCA) :
• AUX ( or optional phono stage P50 or P100)
• CD
• TUNER
• TAPE (IN+OUT with monitoring loop)
• DVD
• 1 By-pass Input (using as power amplifier)
• 2 Pre-out Outputs (for bi-amp or to link to a subwoofer)
• 1 Headphones jack 6,35mm
• 1 trigger Output 12V

Possible Options

• This device can be equipped with 2 different options:
• 1 Phono Board on AUX Input (choice of 1) :
• P100 (set as MM or MC)
• P50 (MM)
•  1 Digital board (choice of 1) :
• Digital Board Signature (same as IN200SIG)
• 1 Bluetooth receiver
• 2 Coaxial Inputs (24Bits/192kHz)
• 2 Optical Inputs (24Bits/192kHz)
• 1 USB-B Input: PCM & DSD
• Audio Converter: AKM – AK4490
• PCM from 16 bits to 32bits up to 384 kHz on USB-B input (asynchronous).
• DSD : DSD64 & DSD128.
• USB Interface: XMOS with specific program designed for ATOLL.
• SPDIF board including 2 coaxial and 2 optical Inputs (24Bits/192kHz)

Specifications

• Power Wrms/channel/8Ω 100 W
• Power Wrms/channel/4Ω 140 W
• Impulse Power 180 W
• Power Supply (VA) 680
• Total of capacitors (µF) 31 474
• Inputs 4 + 1 monitor
• Input Impedance (kΩ) 357
• Sensibility (mV) 100
• Rising Time (µs) 2,5
• Signal/Noise Ratio (dBA) 100 dB
• Bandwidth 5 Hz – 100 kHz
• Weight(kg) 11
• Dimensions (mm) 440x90x300mm

Additional Product Information

Documentation

• Specification
• Owner's manual
