PH100 - Made in France
Overview

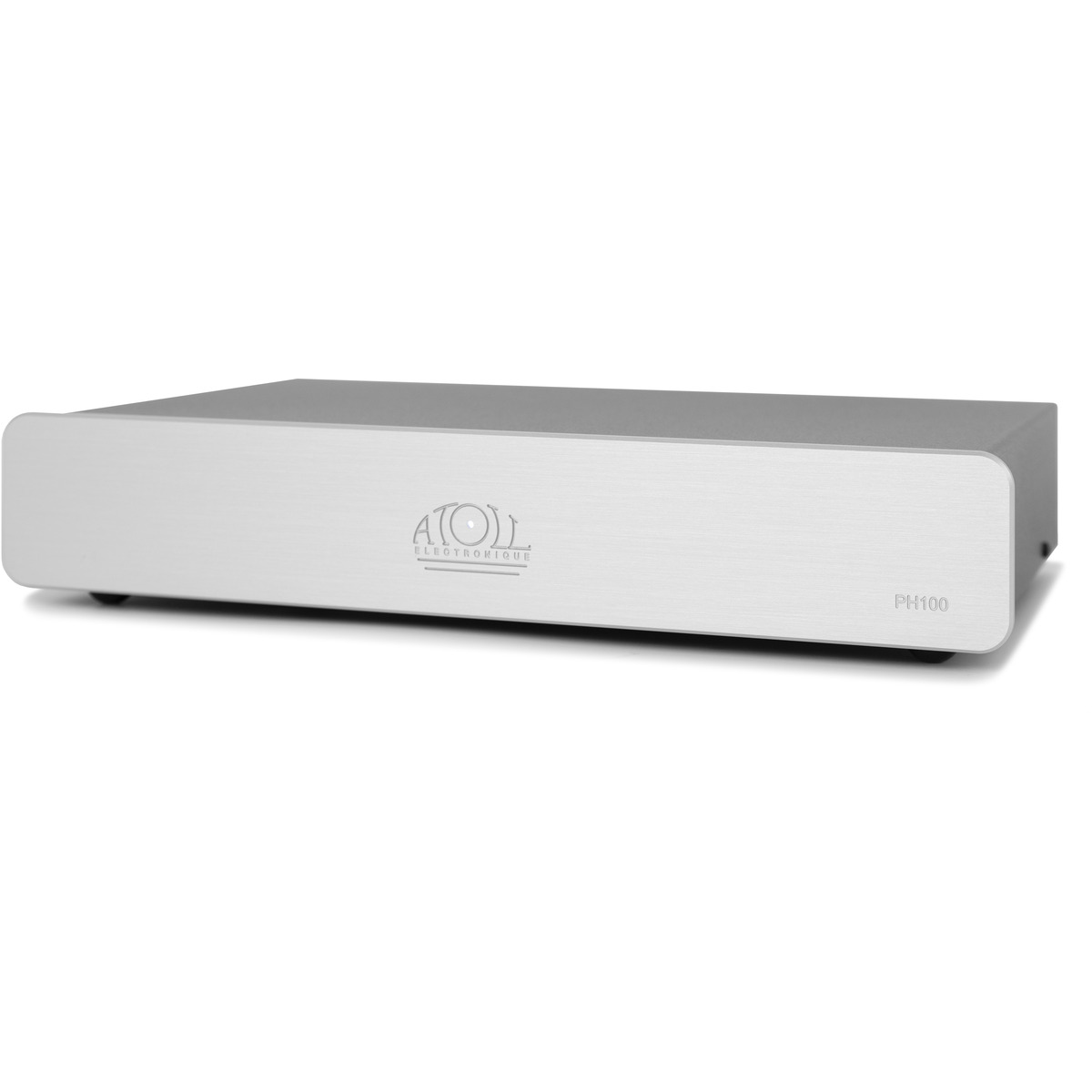

- The Phono preamp. PH100 is an external module in a black steel chassis with a 4mm front panel (black or silver).
- Power supply is made up of 2 top-of-the-range transformers (one by channel) with very low noise as well as 4 voltage regulators.
- The unit is armoured in a metal box in order to preserve all interferences on the audio stages.
- The whole circuit uses only discrete components, it does not integrate any link condensator.

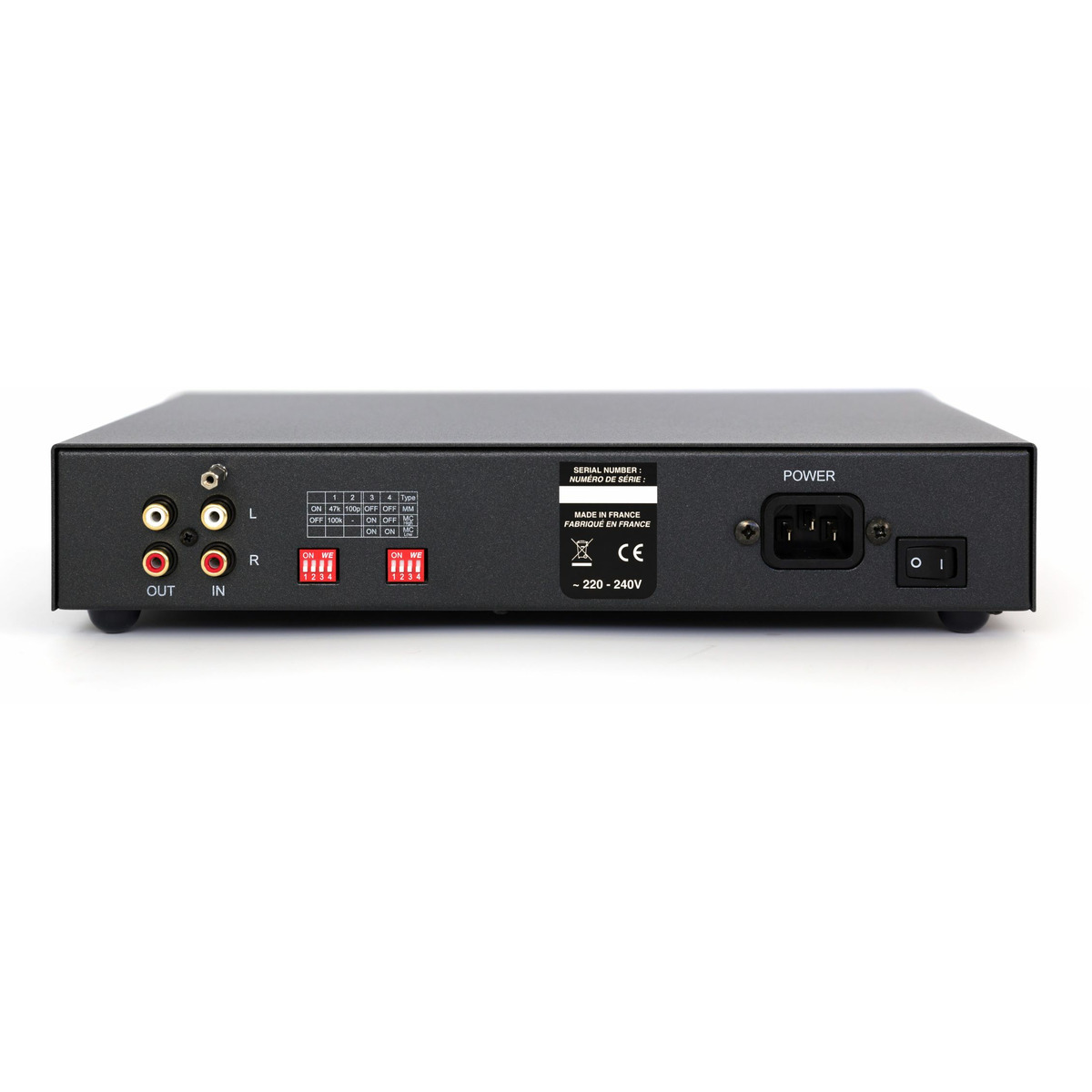

- The different setup (MM/MC, input impedance) are directly accessible from the back of the cabinet.
Specifications
- Input Impedance 47k ou 100k *
- Input Capacitors 100 pF ou rien *
- Gain MM 40 dB
- Gain MC High 47 dB
- Gain MC Low 60 dB
- THD 0,05 %
- Supply 7,2V
- SNR at 1kHz 80dB
- Crosstalk at 1kHz < -82dB
- Linearity (20Hz to 20kHz) < 0.1dB
- Weight 2,5kg
- Dimensions 320*220*65mm
