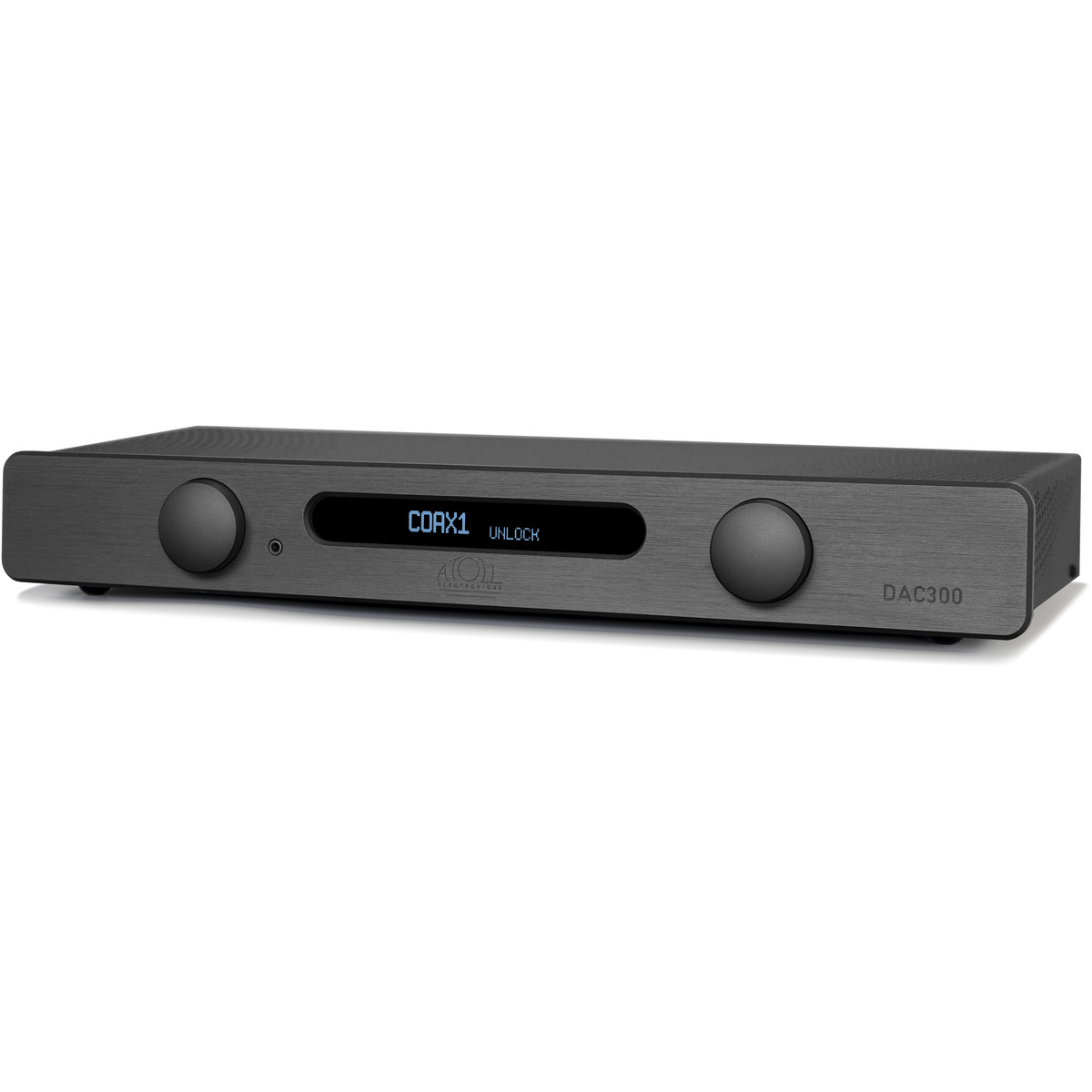

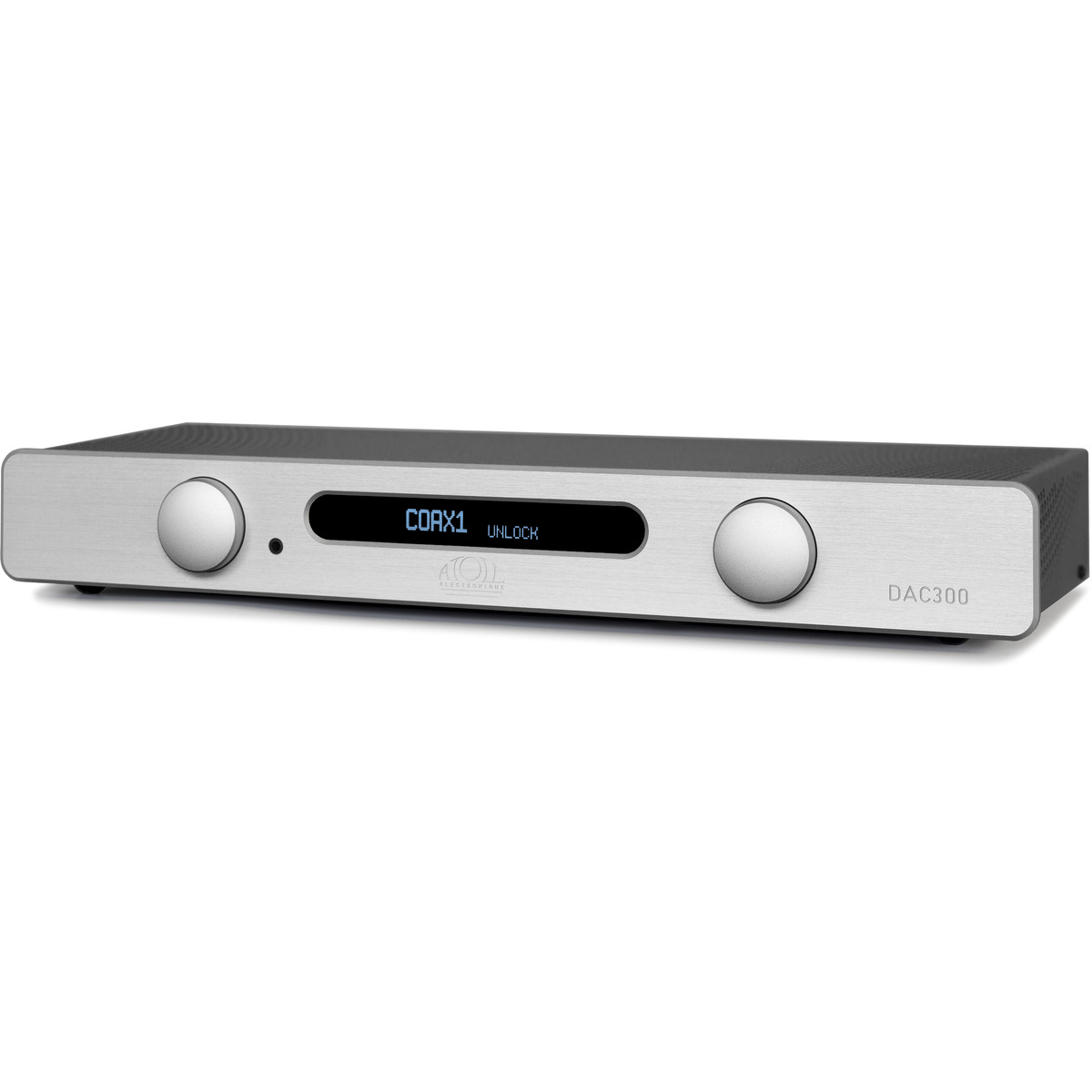

DAC300 - Made in France
Audio Specifications
- SABRE converter ES9038PRO (32 bits/768kHz)
- (137dB dynamic range; THD+n -122dB)
- Ultra low jitter clock oscillator
- Symmetrical voltage outputs
- SABRE ES9311EQ Ultra-Low Noise supply (<1μVrms output noise)
- Symmetrical power transformers for output stages (low noise transformers)
- Output stages with discrete components and no-feedback
- High technology MKP capacitors
Readable Files
- The SPDIF inputs may playback up to PCM 192kHz.
- USB-B input plays up to PCM 768kHz & DSD64, 128, 256 and 512.
- (These performances may vary depending on the software or OS of the USB source).
Interface

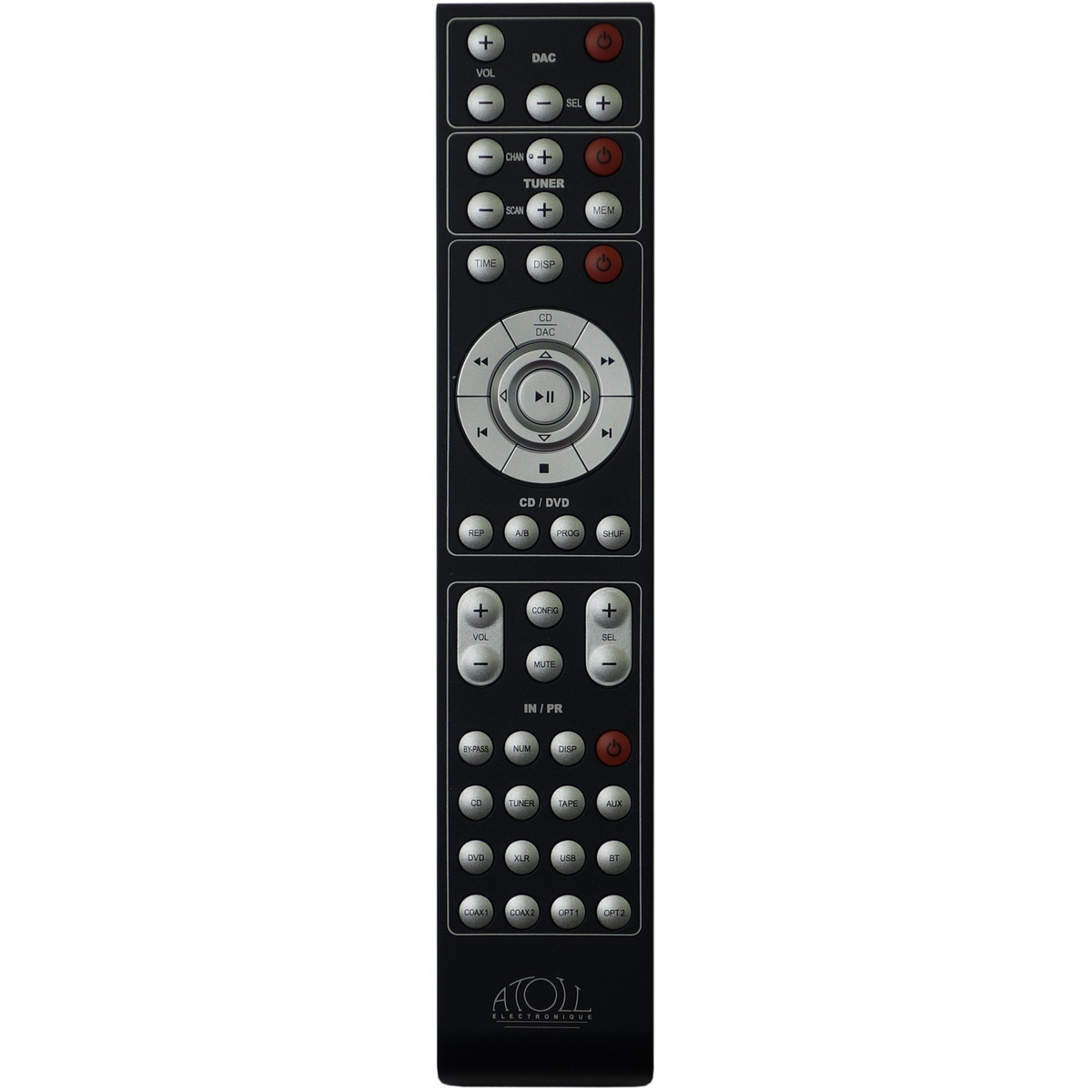

- Serial remote control
- 2 encoders, one use for sources selection and another one to attenuate the volume and manage the DAC filter.
- Low consumption OLED display which can display the selected source and also the frequency sample rate of this one.

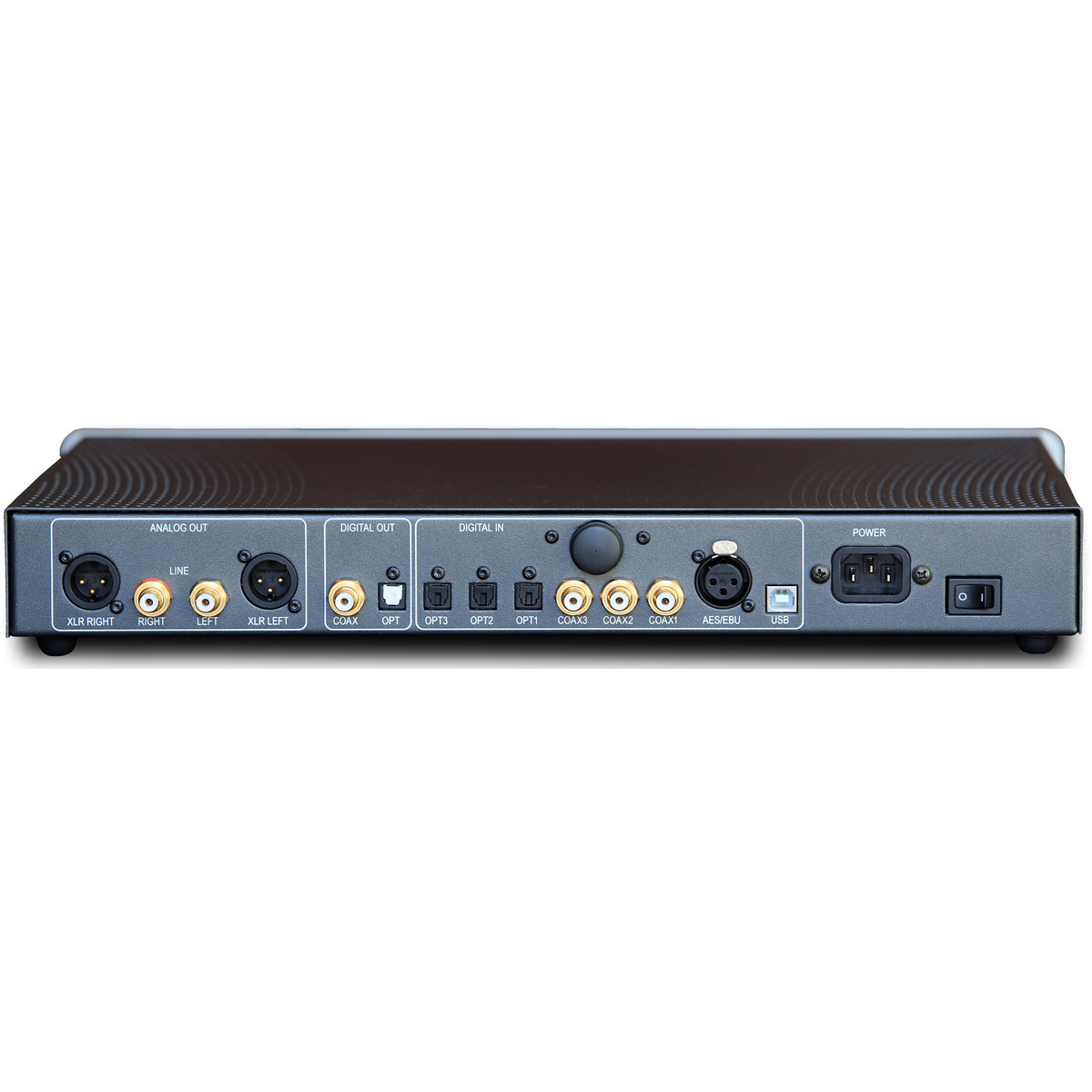

Connections
- 9 digital inputs:
- 3 Coaxial
- 3 Optical
- Bluetooth
- 1 AES/EBU
- 1 USB-B
- 2 digital outputs:
- Coaxial
- Optical
- 3 analog outputs:
- RCA unbalanced stereo
- XLR balanced stereo
- Headphone jack 3,5mm
Specifications
- Frequency response 20 Hz – 20 kHz (± 0,1 dB)
- THD at 1 Khz (0 dBF) <0,001%
- Signa/noise ratio 129dB
- Dynamic 137dB
- Maximum Output level line 2,5 Vrms
- Maximum Output level XLR 2 x 2,5 Vrms
- Size: 440x280x60 mm
- Weight: 4kg
