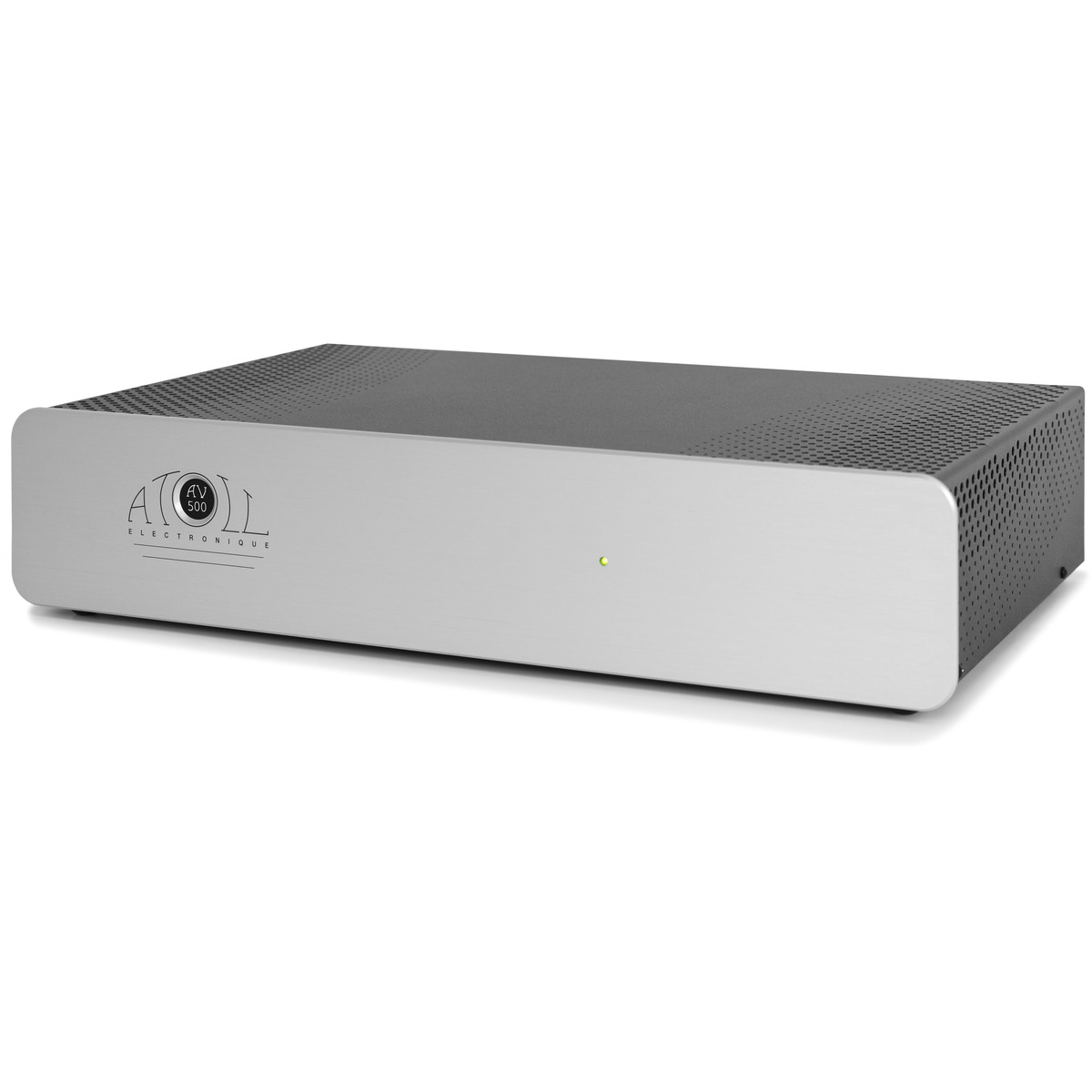

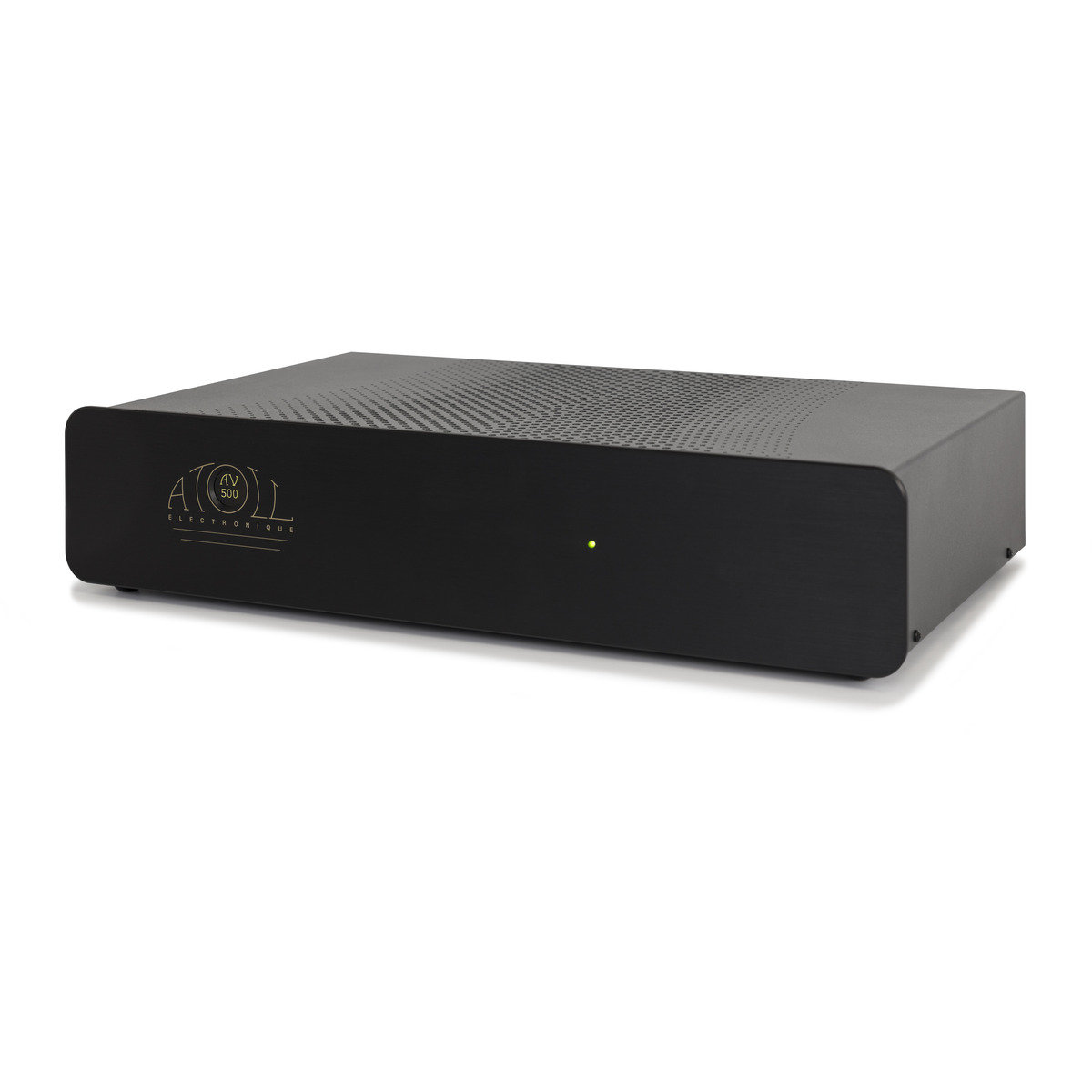

AV500 - Made in France
Features
- Aluminium front panel of 4 mm
- Complete steel chassis of 1,5 mm
- Fully symmetrical stages with discrete components
- Single pair of MOS-FET transistors per channel on outputs
- Double 340VA toroïdal transformers
Specifications
- Power Wrms/channel/8 Ω 5×85 W / 2×100 W
- Power Wrms/channel/4 Ω 5×100 W / 2×140 W
- Supply (VA) 680 VA
- Total of capacitors (µF) 73 000
- Inputs 5
- Input Impedance (kΩ) 47 kOhms
- Sensibility (mV) from 1,58 V to 1,77 V
- Distortion at 1 kHz 0,005 %
- Bandwidth 5 Hz – 200 kHz
- Signal/noise ratio (dBA) 100 dB
- Weight (kg) 12 kg
- Dimensions (mm) 440x90x290
